ZR15.4D 15” Subwoofer 750 Watt Rms DVC 4-Ohm

DS18
Your price:
€ 191,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
150 mm
MAX Power
1500 Watt
RMS Power
750 Watt
Frequency Response
21-200 Hertz
Sensitivity
86 dB
Impedance
4 + 4 Ohm

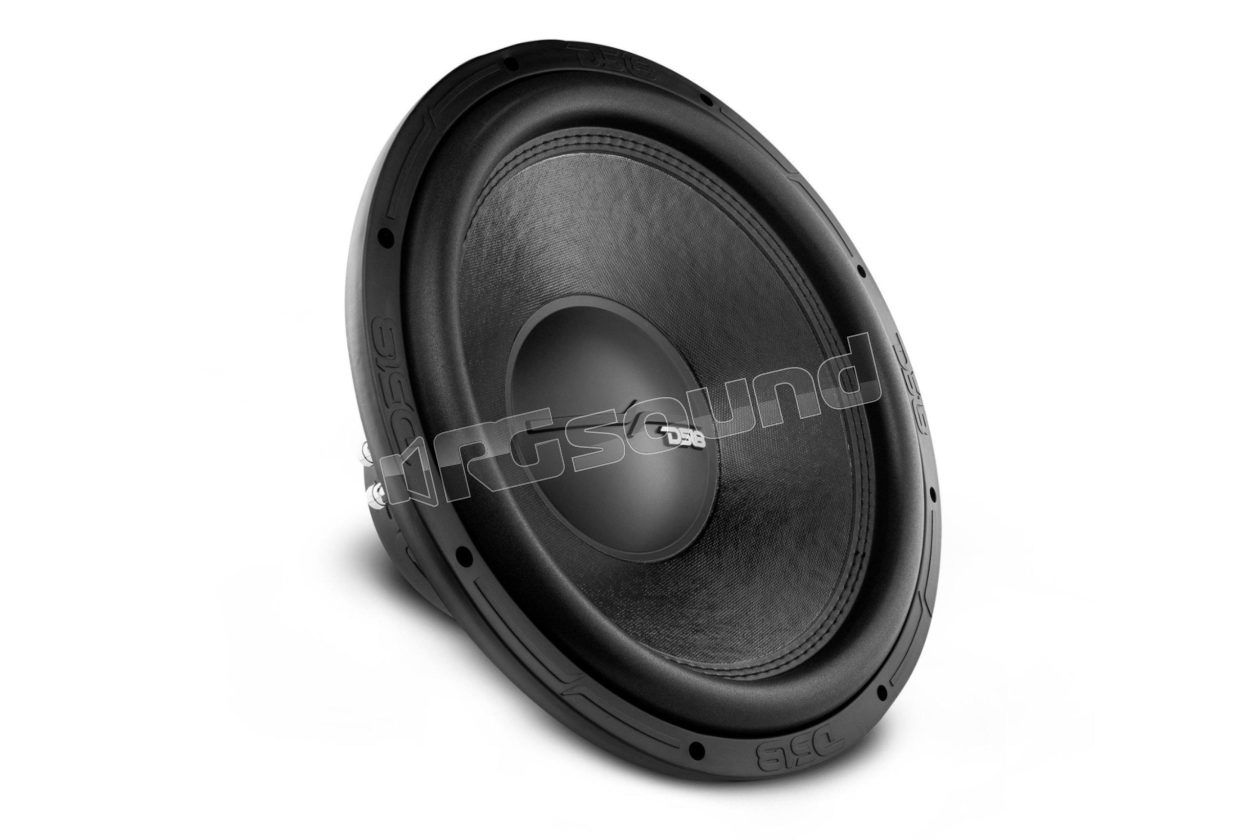

DS18 ZR15.4D 15" Subwoofer 750 Watt Rms DVC 4-Ohm

We present to you the DS18 ZR15.4D, a true powerhouse designed to deliver amazing bass and precision performance. The ZR subwoofer line is renowned for its exceptional performance and the ZR15.4D is no exception. With robust power of 1500 W in MAX handling and 750 W in RMS handling, the ZR15.4D guarantees a thrilling audio experience that will leave you breathless. The high-strength 2.5 inch aluminum voice coil ensures that every note is delivered with precision and clarity, taking your car audio system to new levels. The dual 4+4 ohm voice coil configuration allows you to match the optimal impedance of your amplifier, ensuring maximum power transfer and efficiency. With the DS18 ZR15.4D model you get not only exceptional performance, but also unmatched style and unalterable durability.

The ZR15.4D features a robust stamped basket that not only ensures structural integrity, but also showcases quality DS18 logos on the frame, on the magnetic cap, on the magnet and on the dust cap. The matte black finish adds a touch of elegance, making it a visually outstanding addition to any car audio system. With a frequency response ranging from 21Hz to 200Hz and a sensitivity of 86 dB, the ZR15.4D captures every nuance of your music, delivering it with crystal clear precision. The recommended 80 Hz low-pass crossover ensures perfect integration with your existing audio system, allowing your music to shine in all its glory. Thanks to its appealing design, exceptional performance and versatility, the ZR15.4D model is the perfect choice for car audio enthusiasts who ask for nothing but the best.

ZR15.4D Features

  • 15" Subwoofer
  • Maximum power: 1500 Watt
  • RMS power: 750 Watt
  • Impedance: 4-Ohm 2.5" DVC
  • Ferrite magnet
  • 86dB

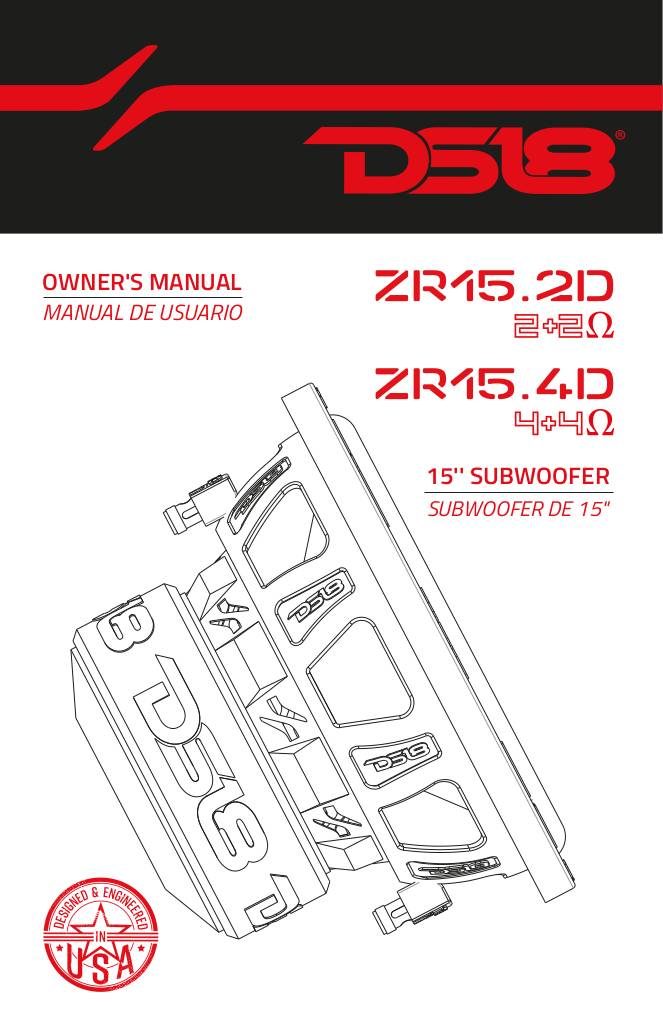

Scheda tecnica

n-20250303130213-zr15-4d-scheda-tecnica.pdf

DS18 ZR15.4D Technical Specifications

  • Nominal diameter 15" / 381 mm
  • Nominal impedance 4 + 4 Ohm
  • RMS handling power 750W
  • Maximum handling power 1500W
  • Sensitivity (1w/1m) 86 dB
  • Frequency response 21-200Hz
  • Recommended high-pass crossover 80Hz

Motor

  • Voice coil diameter 2.5" / 61.6 mm
  • Voice coil material Aluminum
  • Winding material Copper
  • Cone material Uncompressed paper
  • Dust cap material PPI
  • Surround material Foam
  • Basket material Steel
  • Basket color/finish Matte black
  • Magnet material Ferrite
  • Magnet weight 100 oz
  • Displacement volume 0.11 ft3
  • Thiele & Small Parameters
  • Equivalent volume Vas 83.1 L
  • Free air resonance Fs 29 Hz
  • Mechanical factor Qms 4.3
  • Electrical factor Qes 0.99
  • Total factor Qts 0.8
  • Moving mass Mms 273.3 g
  • Compliance Cms 81.9 m/N
  • Bl factor BI 9.9
  • Voice coil inductance Le 838.3m mH
  • Diaphragm area Sd 834.69 Cm2
  • DC resistance Re 3.4 + 3.4 Ohm
  • Bandwidth efficiency product EBP 29.3

Measurements

  • Overall diameter 15.35" / 390 mm
  • Overall depth 8.34" / 212 mm
  • Baffle cutout for front mounting 14.1" / 359 mm
  • Mounting depth 7.4" / 188 mm
  • Motor diameter 6.1" / 155 mm
  • Gross weight of single unit (lb) 20.5
  • Dimensions L x W x H (inches) 16.5 x 16.5 x 9.5
€ 191,00 Price incl. VAT
