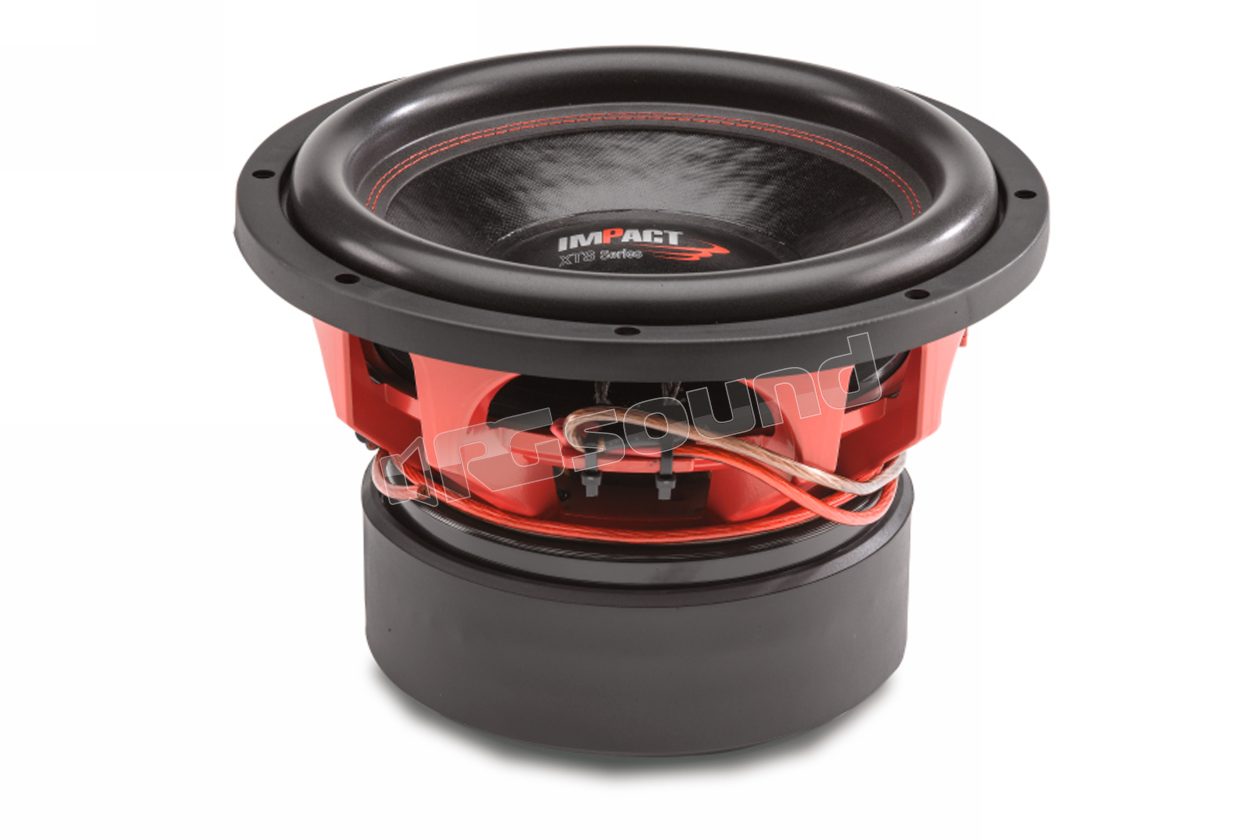

XTS 12.22

Impact Car Audio

Discontinued

Your price:
€ 477,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
300 mm
MAX Power
4000 Watt
RMS Power
2000 Watt
Sensitivity
90 dB
Impedance
2 + 2 Ohm
Installation Depth
193 mm
Woofer Material
Cellulosa rinforzato kevlar

Impact XTS 12-22 30cm X-TREME COMPETITION subwoofer with dual 2 Ohm voice coil, rated power 2,000 Watts RMS.

XTS 12-22 is a power subwoofer, designed for ultra-low frequency reproduction in extreme high-energy systems.

Main Features

300 mm diameter speaker

Die-cast aluminum basket

Non-pressed cellulose cone reinforced with Kevlar fibers

ERON foam suspension with double stitching

75 mm diameter voice coil with 4 copper windings

Dual dust cap to reinforce cone rigidity

Triple magnet weighing 8.50 kg.

Quadruple center cap with mirror image layout

Rubber protection of the magnetic assembly

Direct connection cables 17 mmq

Dual voice coil 2 Ohm

Continuous Power 2000 W RMS

Max Power 4000 W

Impact XTS 12-22 THIELE and SMALL PARAMETERS

Mechanical Parameters with Parallel / Series Value

(referred to series coil connection)

Fs Hz 34.207 / 34.611

Qms 4.537 / 3.333

Vasliters 23.014 / 23.623

Cmsum/N 58.601 / 59.018

Mmsg 362.691 / 358.295

Rmsg/s 17.5 / 23.4

Xmaxmm 3030

Xmechmm 4545

Dia.mm 260 / 260

Sdsq.m 0.053 / 0.053

Vdliters 6.601 / 6.601

Electrical Parameters with Parallel / Series Value

Qes 0.383 / 0.335

ReOhms 0.93.6

LemH 1.679 / 6.924

BLTm 14.471 / 28.949

PeWatts 2000 / 2000

Electromechanical Parameters

Qts 0.353 / 0.304

no% 0.269 / 0.283

1-W-SPLdB 86.4 / 86.5

2.8V SPLdB 95.99 / 90.19

Dimensions

Outer diameter 325 mm

Cone diameter 303 mm

Depth 193 mm
