Xtreme (4 fogli) 81.2 x 45.7 cm pack for car soundproofing

Dynamat
Your price:
€ 116,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

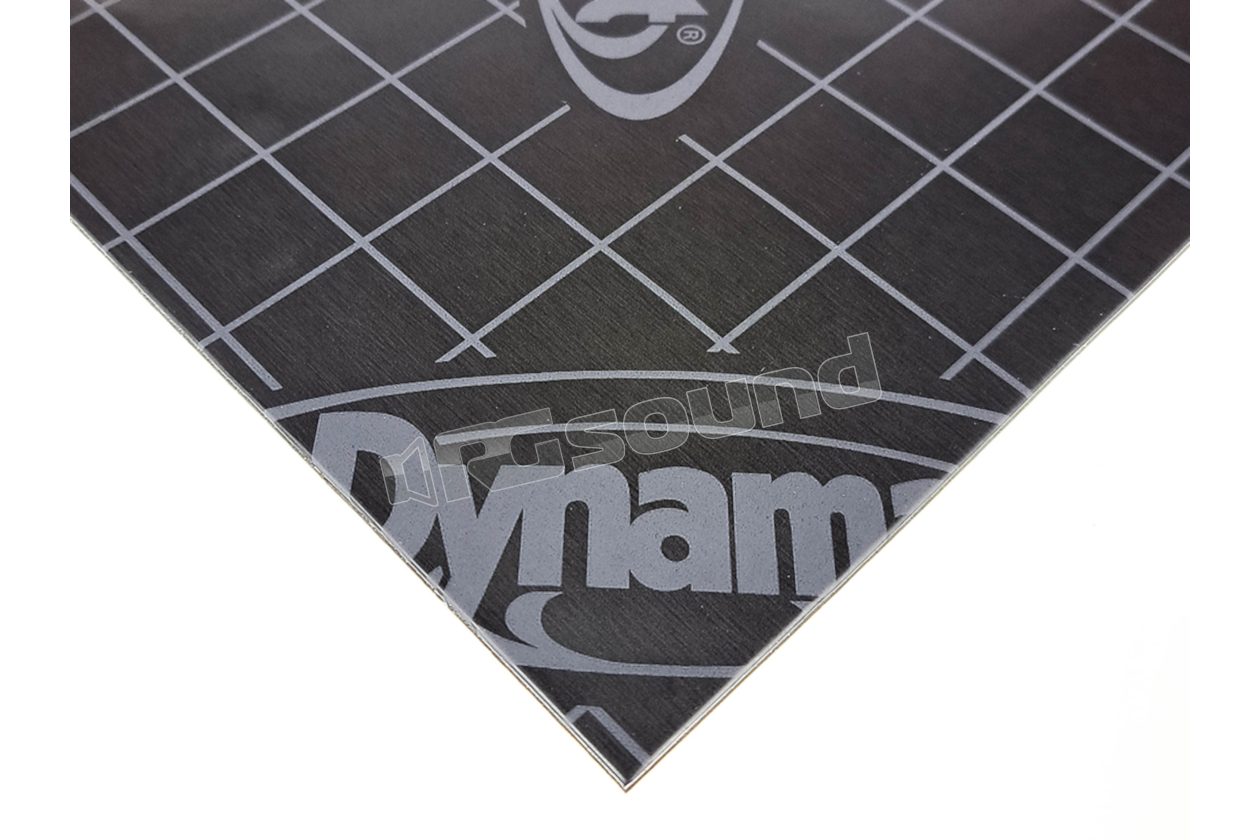

Dynamat Xtreme (4 sheets) Package 81.2 x 45.7 cm for car soundproofing

Dynamat Xtreme 4 sheets is a package designed for complete or semi-complete automotive soundproofing interventions. Based on butyl and aluminum CLD technology, the kit allows you to effectively treat multiple vehicle surfaces by reducing vibrations and structural resonances. The 4-sheet format represents an intermediate solution between a single sheet and extended kits, ideal for treatments on one or more areas of the vehicle.

How the Dynamat CLD system works and what it is for

Dynamat Xtreme works according to the Constrained Layer Damping principle:

  • butyl dissipates vibrational energy
  • the aluminum layer stiffens the surface
  • the system reduces sheet metal resonance

The result is a more stable surface that:

  • vibrates less
  • transmits less noise
  • improves acoustic response
  • optimizes the behavior of woofers installed in the door

When to use it, where to apply it and how to install it

The 4-sheet format is suitable for:

  • treatment of 2–4 doors
  • interventions on multiple areas of the vehicle
  • mid-level car audio upgrade
  • vibration reduction on complete interiors

Typical applications:

  • front and rear doors
  • floor pan
  • trunk
  • side panels
  • wheel arch

Installation

Procedure:

  1. clean the surface from grease and dust
  2. cut or shape the sheet
  3. apply following the panel ribs
  4. press with roller to eliminate bubbles
  5. verify uniform adhesion

Technical features

  • Package: 4 sheets
  • Sheet dimensions: 81.2 x 45.7 cm
  • Technology: butyl + aluminum CLD
  • Thickness: approximately 1.4 mm
  • Mass: approximately 2.2 kg/m²
  • Application: permanent self-adhesive
  • Use: automotive / car audio / industrial

Dynamat Xtreme 4 sheets is a balanced solution for automotive soundproofing interventions, ideal for those who want to improve the acoustic comfort of the vehicle with a structured but not yet complete treatment.

Scheda tecnica

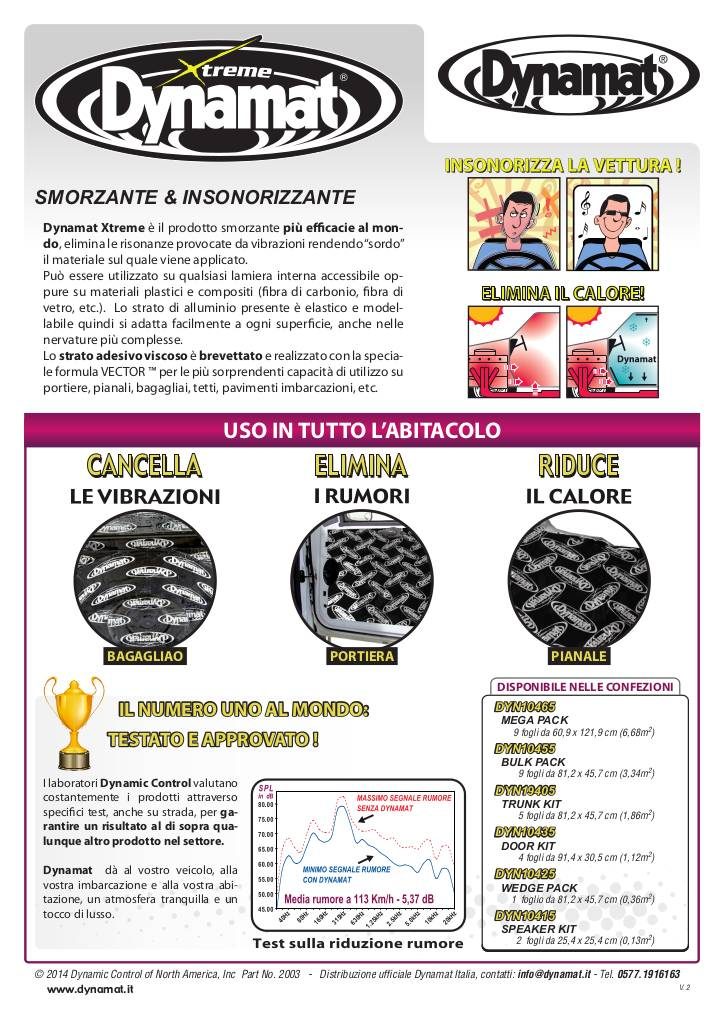

20141027101914-dynamat-xtreme-low.pdf

4x sheets Dynamat Xtreme 81.2 x 45.7 cm

Dynamat Xtreme (4 sheets) Technical specifications

  • Appearance: Black central part based on butyl with 0.4 mm aluminum layer, removable paper adhesive film.
  • Thickness: 1.4mm
  • Mass: 2.20kg/m2
  • Acoustic loss factor @ temperature (Using ASTM E756 method @ 200 Hz):
    • 0.081 @ -10°C
    • 0.240 @ +0°C
    • 0.257 @ +10°C
    • 0.417 @ +20°C
    • 0.259 @ +30°C
    • 0.194 @ +40°C
    • 0.140 @ +50°C
    • 0.094 @ +60°C
  • Temperature range (Optimal performance): -10°C to +60°C
  • Temperature range (Resistance): -54°C to +149°
  • Adhesive strength: 74.8 N/cm on cold steel
  • Chemical resistance: Resistant to water and mineral oils
  • Federal standard test: Meets FMVSS 302
  • Treatment and application: Store at room temperature for better application
€ 116,00 Price incl. VAT
