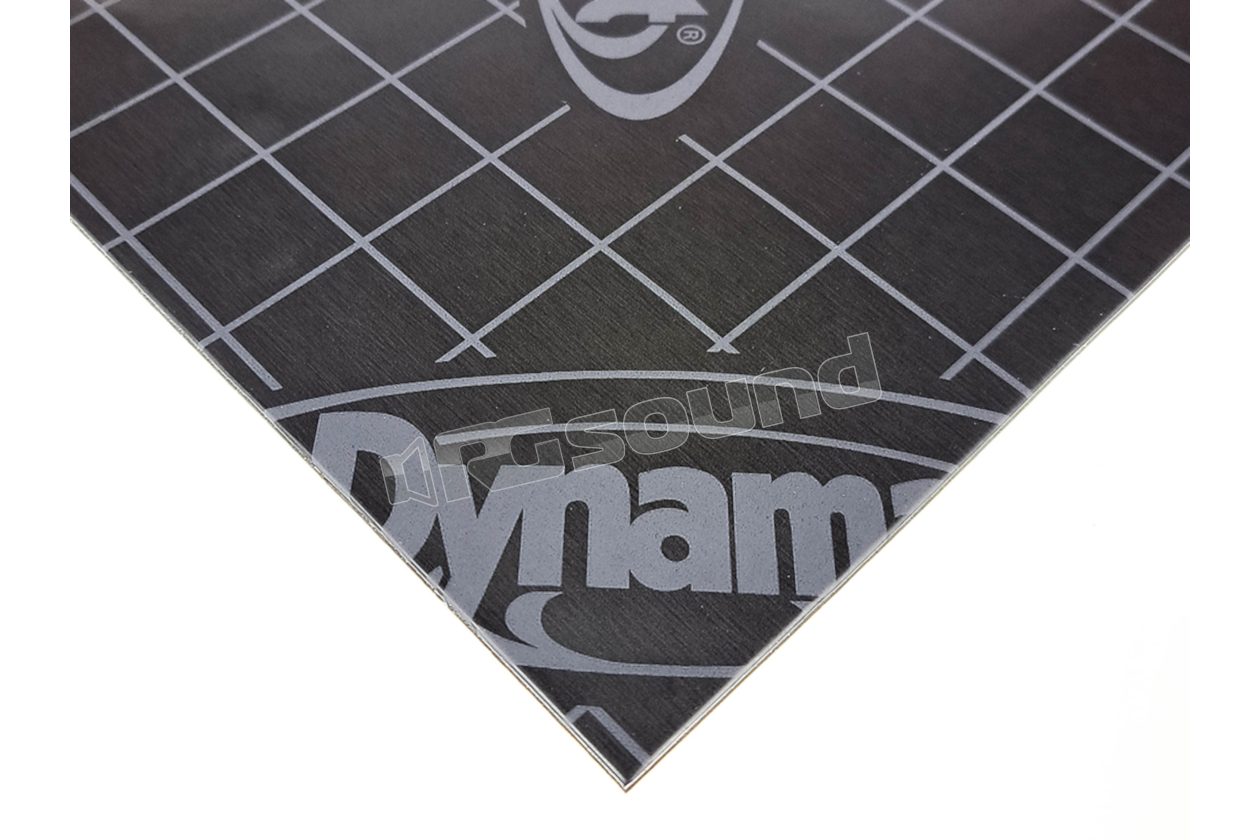

Xtreme (1 foglio) Anti-vibration damping sheet 81.2 x 45.7 cm

Dynamat
Your price:
€ 29,90
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to

Dynamat Xtreme Vibration Damping Sheet 81.2 x 45.7 cm (1 sheet)

Dynamat Xtreme in single sheet format is the modular version of the renowned butyl and aluminum-based vibration damping material, designed to reduce resonance and structural vibrations on metallic and composite surfaces. The 1 sheet format is designed for targeted interventions or integrations on existing installations, where it is necessary to treat specific areas without purchasing multiple packages.

How a vibration damping material works and what it is used for

Dynamat Xtreme uses CLD (Constrained Layer Damping) technology:

  • viscoelastic layer in butyl
  • aluminum foil with high rigidity
  • high permanent hold adhesive

When applied to a surface, the material:

  • reduces sheet metal resonance
  • transforms vibrational energy into heat
  • stabilizes the treated panel
  • improves overall acoustic behavior

It is particularly effective on thin panels subject to vibration, such as doors and internal vehicle surfaces.

When to use it, where to apply it and how to install it

The single sheet is ideal for:

  • integrations on existing treatments
  • soundproofing repairs or extensions
  • small localized surfaces

Typical applications:

  • doors
  • interior panels
  • trunk
  • wheel arch
  • metallic or composite surfaces

Installation

  1. thoroughly clean the surface
  2. cut the sheet into the desired shape
  3. remove the protective film
  4. apply following the surface ribs
  5. press with roller to eliminate air bubbles

Technical Characteristics

  • Format: 1 sheet
  • Dimensions: 81.2 x 45.7 cm
  • Technology: butyl + aluminum CLD
  • Thickness: approximately 1.4 mm
  • Use: automotive / car audio / industrial
  • Application: permanent self-adhesive

Dynamat Xtreme single sheet represents the most flexible solution in the range, ideal for targeted interventions and finishing on existing installations, maintaining the same performance as the professional Dynamat vibration damping system.

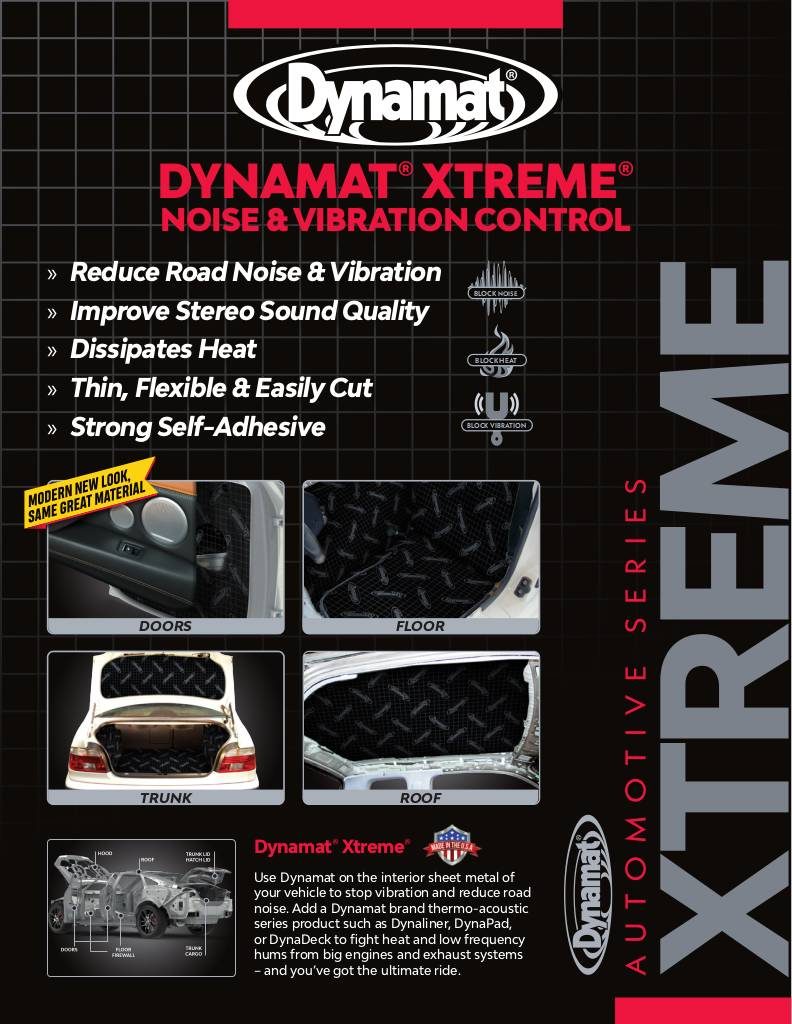

Scheda tecnica

n-20250725163745-dynamat-xtreme-datasheet.pdf

Dynamat Xtreme (1 sheet) Technical Specifications

  • Appearance: Black central part based on butyl with 0.4 mm aluminum layer, removable paper adhesive film.
  • Thickness: 1.4 mm
  • Mass: 2.20 kg/m²
  • Acoustic loss factor @ temperature (Using ASTM E756 method @ 200 Hz):
    • 0.081 @ -10°C
    • 0.240 @ +0°C
    • 0.257 @ +10°C
    • 0.417 @ +20°C
    • 0.259 @ +30°C
    • 0.194 @ +40°C
    • 0.140 @ +50°C
    • 0.094 @ +60°C
  • Temperature range (Optimal performance): -10°C to +60°C
  • Temperature range (Resistance): -54°C to +149°C
  • Adhesive strength: 74.8 N/cm on cold steel
  • Chemical resistance:Resistant to water and mineral oils
  • Federal standard test: Meets FMVSS 302
  • Treatment and application: Store at room temperature for betterapplication
€ 29,90 Price incl. VAT
