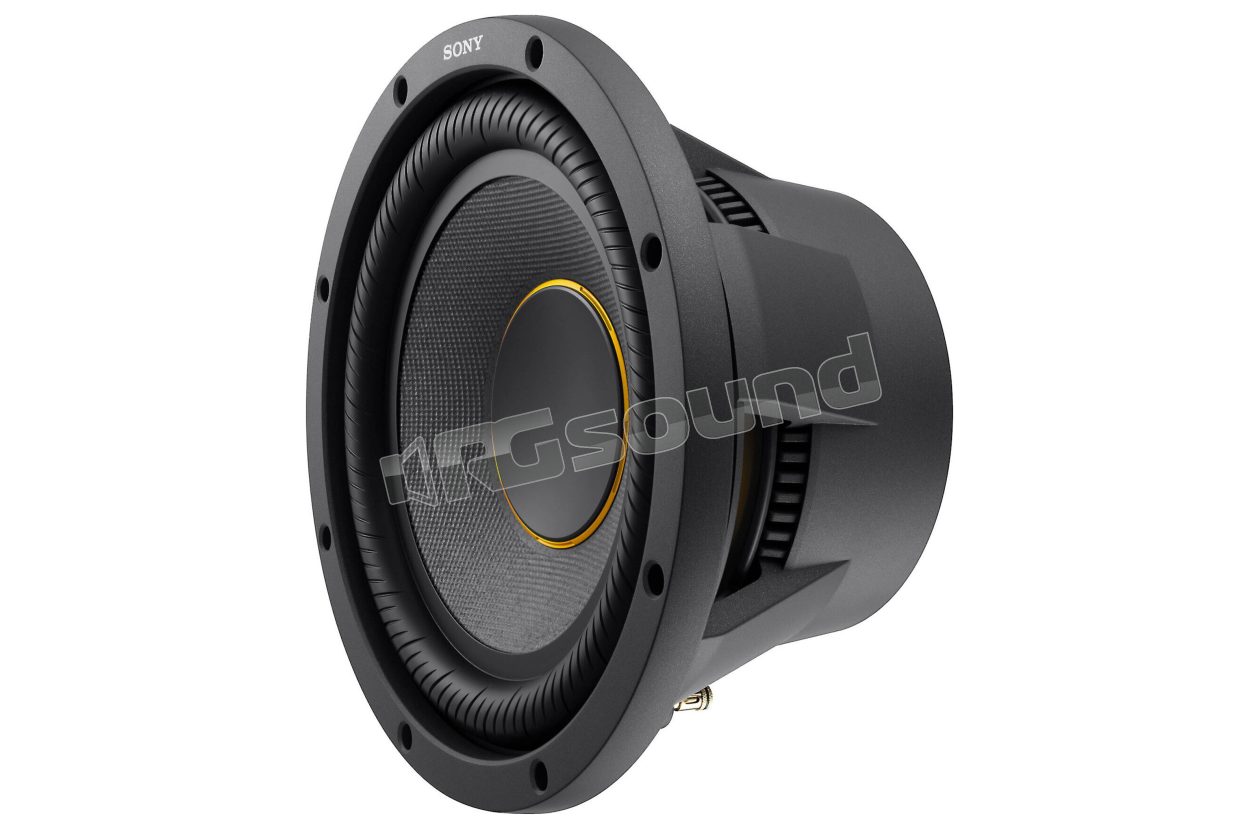

XS-W104ES Mobile ES 10'' honeycomb MRC subwoofer

Sony
Your price:
€ 176,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
1.800 Watt
RMS Power
450 Watt
Frequency Response
28 - 500 Hertz
Sensitivity
86 dB
Impedance
4 Ohm
Weight
4,86 Kg
Installation Depth
136 mm
Woofer Material
Cono rinforzato in Mica

Sony XS-W104ES Subwoofer 10" Mobile ES series, reinforced mica honeycomb cone

The mica-reinforced cellular material of the diaphragm is enhanced by a honeycomb fiber structure for unmatched rigidity and responsiveness. Over the years, advances in MRC material development have made it possible to produce a driver 10 times more rigid than traditional PP Matrix cones, synonymous with natural low-distortion sound and wide frequency response.

XS-W104ES Features

  • The woofer surround is equipped with another Sony proprietary technology, with curved notches that improve vertical amplitude symmetry to drastically reduce distortion and improve clarity.
  • The five-frame design disperses resonance while the integrated diffuser ensures optimal air circulation for the cone's flexible operation and coil cooling.
  • The spider is acoustically optimized and allows greater power and better air flow, with a profile designed for faster and more precise cone damping. The coil wire is fixed to the structure to reduce its movements and thus improve signal integrity, preventing sound interference.

Scheda tecnica

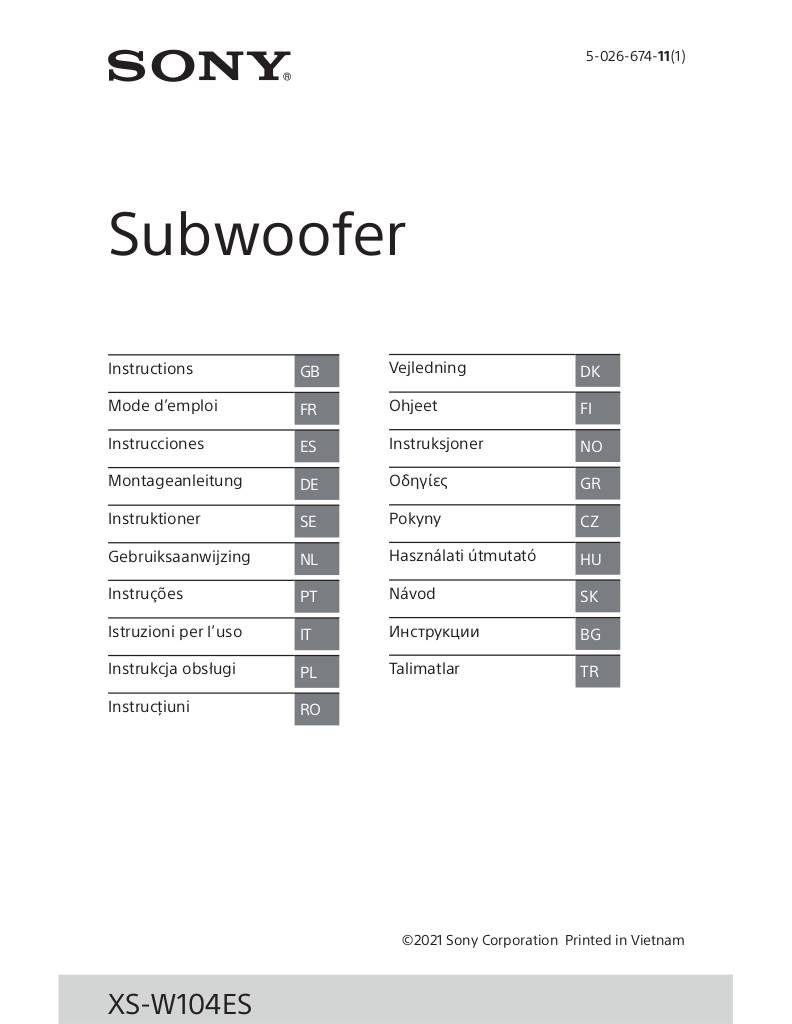

n-20210701152609-158xsw104e.pdf

Sony XS-W104ES Technical Specifications

  • Single coil
  • Size 10" (25 cm)
  • Peak power 1800 W
  • Nominal power 450 W
  • Nominal power, IEC 268-5 350 W
  • Effective frequency range 28-500 Hz
  • Sound pressure output 86 dB ± 2 dB SPL (1 W,1 m)
  • Impedance (ohm) 4
  • Diaphragm material honeycomb MRC
  • Magnet material ferrite
  • Speaker surround material Rubber (separate notch)
  • Weight 4,860 g
€ 176,00 Price incl. VAT
