XS-690ES Hi-Res 6x9'' Coaxial Speakers, Mobile ES Series

Sony
Your price:
€ 259,90
Price per pair (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
Coaxial
Speaker Size
6x9''
Coaxial Type
2-way
Frequency Response
35 - 40.000 Hertz
MAX Power
330 Watt
RMS Power
90 Watt
Sensitivity
90 dB
Impedance
4 Ohm
Woofer Material
Cono rinforzato in Mica
Tweeter Material
Cupola morbida in fibra

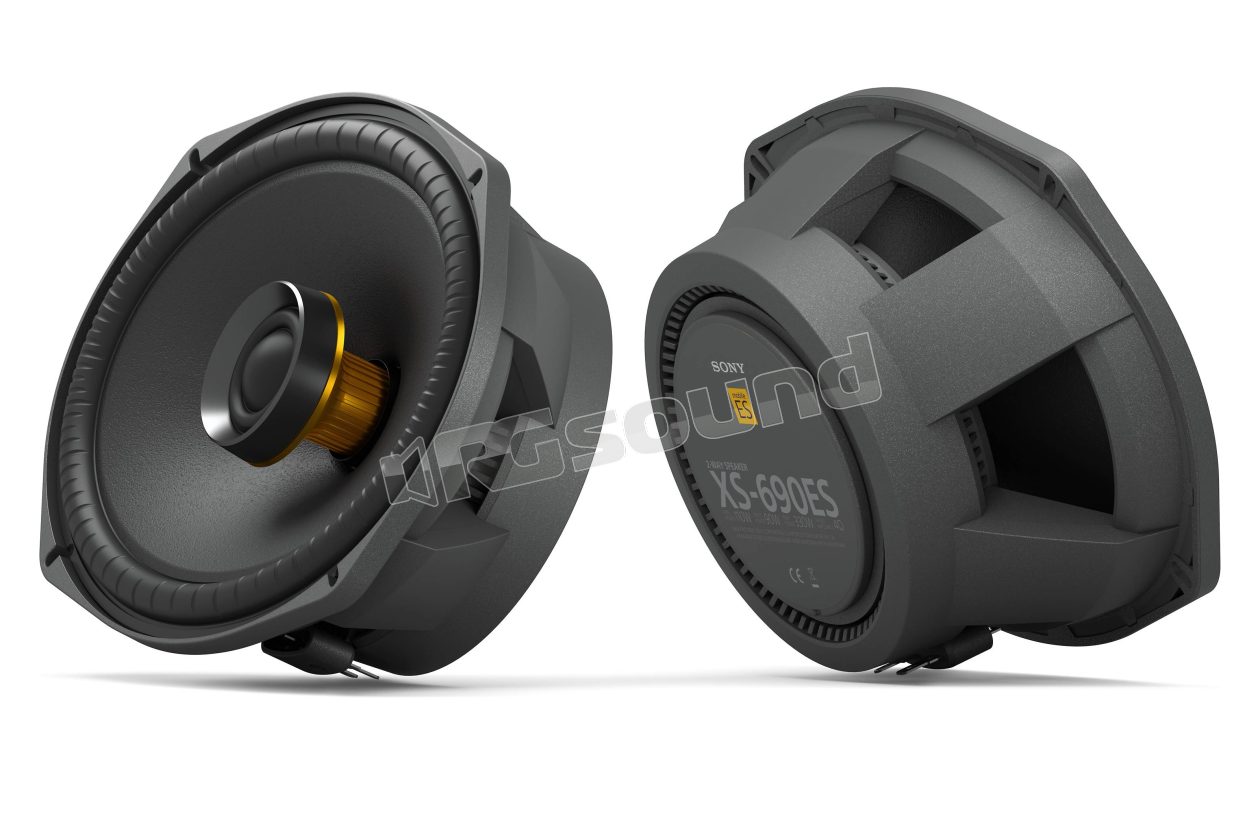

Sony XS-690ES Pair of 2-way coaxial speakers 6 x 9" (16 x 24cm) Mobile ES series


The diaphragm of the main speaker of the XS-690ES model is made of mica-reinforced cellular material (MRC) exclusive to Sony. The rigid yet lightweight driver enables a much more precise response compared to drivers made of conventional material and guarantees a smoother and more natural sound.

The integration of MRC in an exclusive matrix with aramid fibers eliminates diaphragm resonance and minimizes distortion, not only in the bass, but also in the midrange and upper frequencies. The result is powerful sound at all frequencies and incredibly clean, even at higher volumes.

The woofer surround is equipped with another Sony proprietary technology, with curved notches that improve the symmetry of vertical amplitude to drastically reduce distortion and improve clarity.

XS-690ES Features

  • Hi-Res Audio Tweeter: The soft dome tweeter diaphragm is directly connected to the voice coil, compatible with high-resolution audio, designed to cover the highest frequency sounds thanks to a frequency range extending up to 40 kHz.
  • Five-frame structure and dynamic air diffuser: The five-frame design disperses resonance while the integrated diffuser ensures optimal air circulation for the flexible cone operation and voice coil cooling.
  • Progressive height variation spider: The spider is acoustically optimized and allows for greater power and better air flow, with a profile designed for faster and more precise cone damping.

Sony XS-690ES Technical Specifications

  • 2-way coaxial speakers
  • Dimensions 6 x 9" (16 x 24 cm)
  • General characteristics
  • Peak power 330 W
  • Rated power 110 W
  • Rated power, IEC 268-5 90 W
  • Effective frequency range 35-40,000 Hz
  • Sound pressure output 90 dB ± 2 dB SPL (1 W, 1 m)
  • Impedance (ohm) 4
  • Speaker surround material rubber (separate notch)
  • Woofer magnet material Ferrite
  • Woofer diaphragm material MRC with aramid fiber matrix
  • Soft dome tweeter 1" (2.5 cm)
  • Tweeter diaphragm material Synthetic fiber
  • Tweeter magnet material Neodymium
  • Weight 1.45 g
€ 259,90 Price incl. VAT
