XS-680ES Hi-Res 6x8'' Coaxial Speakers Mobile ES Series

Sony

Discontinued

Your price:
€ 159,90
Price per pair (VAT included)
Type
Coaxial
Speaker Size
6x8''
Coaxial Type
2-way
Frequency Response
40 - 40.000 Hertz
MAX Power
240 Watt
RMS Power
60 Watt
Sensitivity
89 dB
Impedance
4 Ohm
Woofer Material
Cono rinforzato in Mica
Tweeter Material
Cupola morbida in fibra

Sony XS-680ES Pair of 2-way coaxial speakers 6 x 8" (16 x 20cm) Mobile ES series.


The diaphragm of the main speaker of the XS-160ES model is made of mica-reinforced cellular material (MRC) exclusive to Sony. The rigid yet lightweight driver allows for much more precise response compared to drivers made of conventional material and ensures smoother and more natural sound.

The integration of MRC in an exclusive matrix with aramid fibers eliminates diaphragm resonance and minimizes distortion, not only in the lows, but also in the midrange and highs. The result is powerful sound at all frequencies and incredibly clean, even at higher volumes.

The woofer surround is equipped with another proprietary Sony technology, with curved notches that improve vertical amplitude symmetry to drastically reduce distortion and improve clarity.

XS-680ES Features

  • Hi-Res Audio Tweeter: The soft dome tweeter diaphragm is directly connected to the coil, compatible with high resolution audio, designed to cover the highest range sounds thanks to a frequency range that extends up to 40 kHz.
  • Five-frame structure and dynamic air diffuser: The five-frame design dissipates resonance while the integrated diffuser ensures optimal air circulation for the flexible cone operation and coil cooling.
  • Progressive variable height spider: The spider is acoustically optimized and allows for greater power and better air flow, with a profile designed for faster and more precise cone damping.

Scheda tecnica

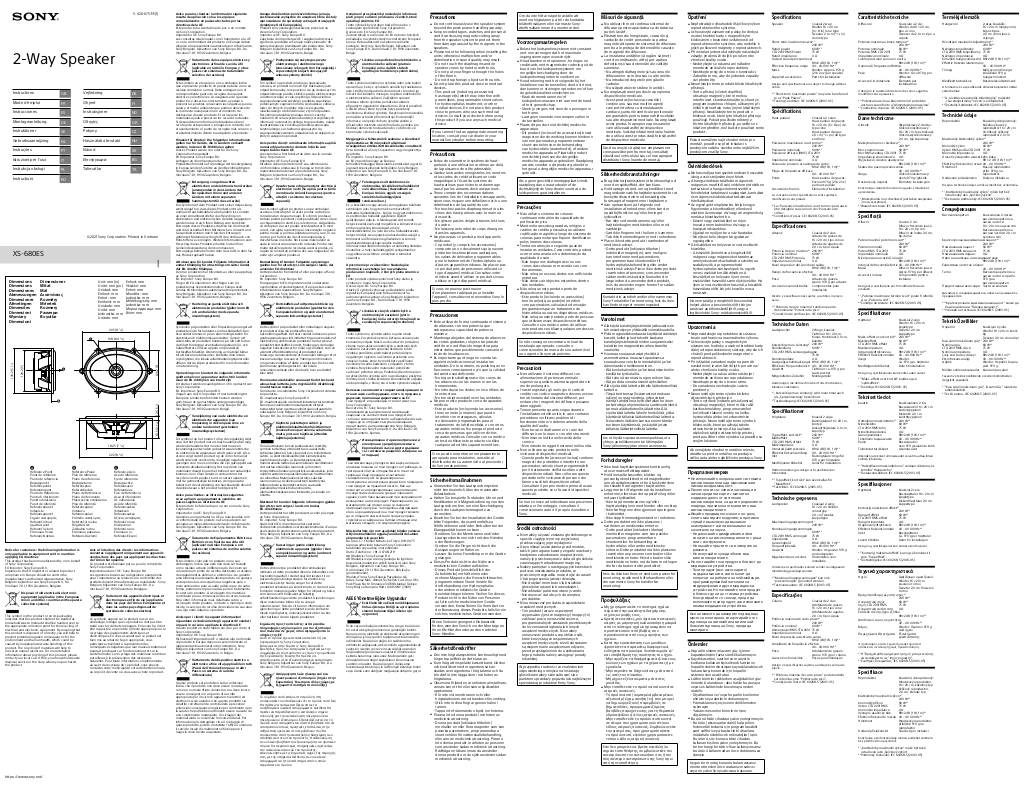

n-20230531142454-50266751m.pdf

Sony XS-680ES Technical Specifications

  • 2-way coaxial speakers
  • Size 6 x 8" (16 x 20 cm)
  • General features
  • Peak power 240 W
  • Rated power 75 W
  • Rated power, IEC 268-5 60 W
  • Effective frequency range 40-40,000 Hz
  • Sound pressure output 89 dB ± 2 dB SPL (1 W,1 m)
  • Impedance (ohm) 4
  • Speaker surround material rubber (separate notch)
  • Woofer magnet material Ferrite
  • Woofer diaphragm material MRC with aramid fiber matrix
  • Soft dome tweeter 13/16" (2.0 cm)
  • Tweeter diaphragm material Synthetic fiber
  • Tweeter magnet material Neodymium
  • Weight 970 g
Discontinued
