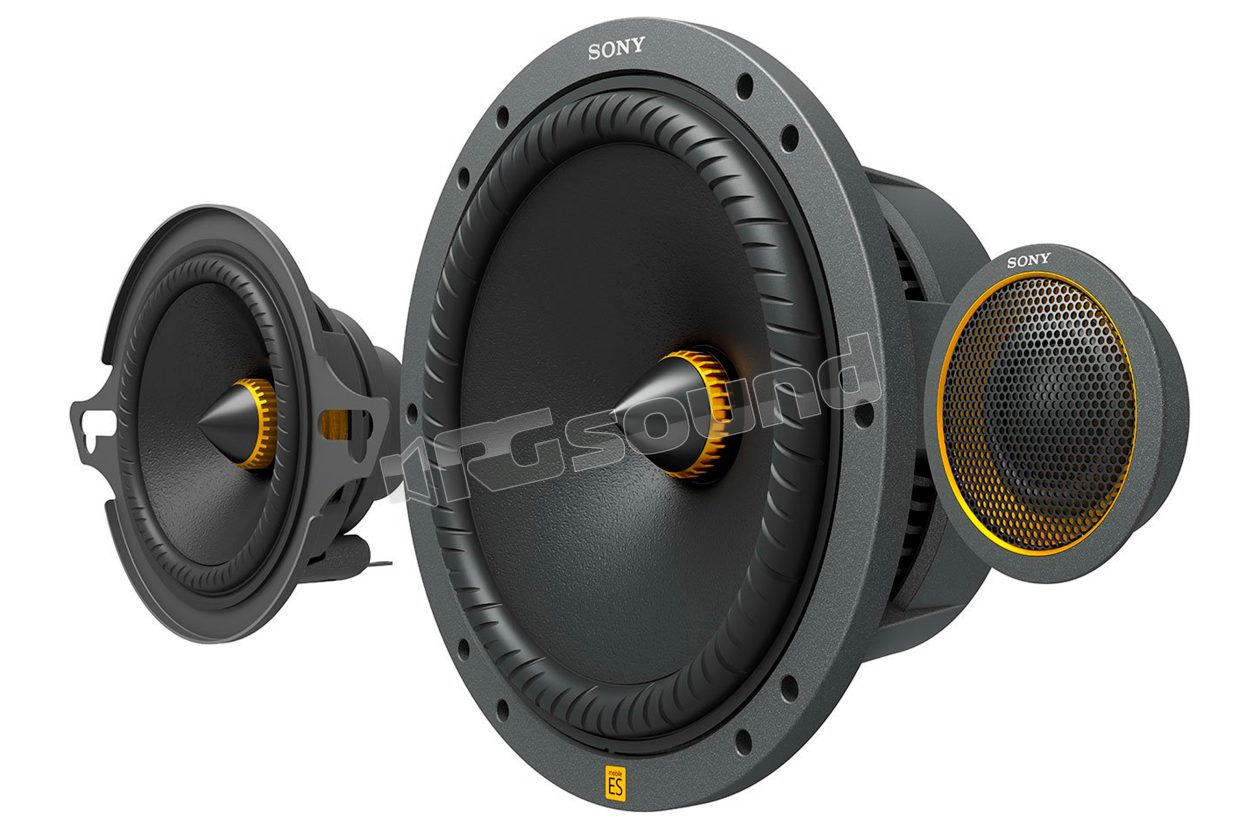

XS-163ES 165mm 3-Way Speaker Kit Mobile ES Series

Sony
Your price:
€ 329,00
Price per single item (VAT included)
In stock, ready to ship
Calculating shipping costs to
Type
3-way separate kit
Woofer Size
165 mm
Midrange Size
80 millimetri
Tweeter Size
25 millimetri
MAX Power
270 Watt
RMS Power
90 Watt
Frequency Response
40 - 40.000 Hertz
Sensitivity
89 dB
Impedance
4 Ohm

Sony XS-163ES Three-way separate mobile speaker system ES with high-resolution audio playback

The woofer surround features another proprietary Sony technology, with distinctive curved notches that enhance vertical amplitude symmetry, for noticeably reduced distortion and greater clarity.

Compatible with high-resolution audio, a soft dome tweeter diaphragm is directly connected to the voice coil, designed to cover the ultra-high ends of your music, with a frequency range extending to 40 kHz.

The acoustically optimized spider allows for greater power handling and air flow, with a profile designed for faster and more precise damping of the speaker cone.

XS-163ES Features

  • Elevate your sound: Breathe new life into your listening experience in the car with 3-way component mobile ES speakers. A new 3½" (8 cm) midrange driver will give you a wider soundstage and more depth to your music, for full-bodied vocals and detailed instrument textures.
  • Slim midrange: The newly designed midrange driver is powered by a compact yet incredibly powerful neodymium magnet. The result is a shallower basket, designed to work even in tight spaces and challenging installations.
  • Crossover with biamplification capability and gain selector: The audiophile-grade crossover is equipped with optimized low-resistance film capacitors for clear high-frequency reproduction. In addition, inductive winding and air-core coils offer sharp and powerful midrange sound on demand. You will enjoy surprisingly low distortion across all frequencies and the precision of crossover gain control, even when driving components with a single amplifier.

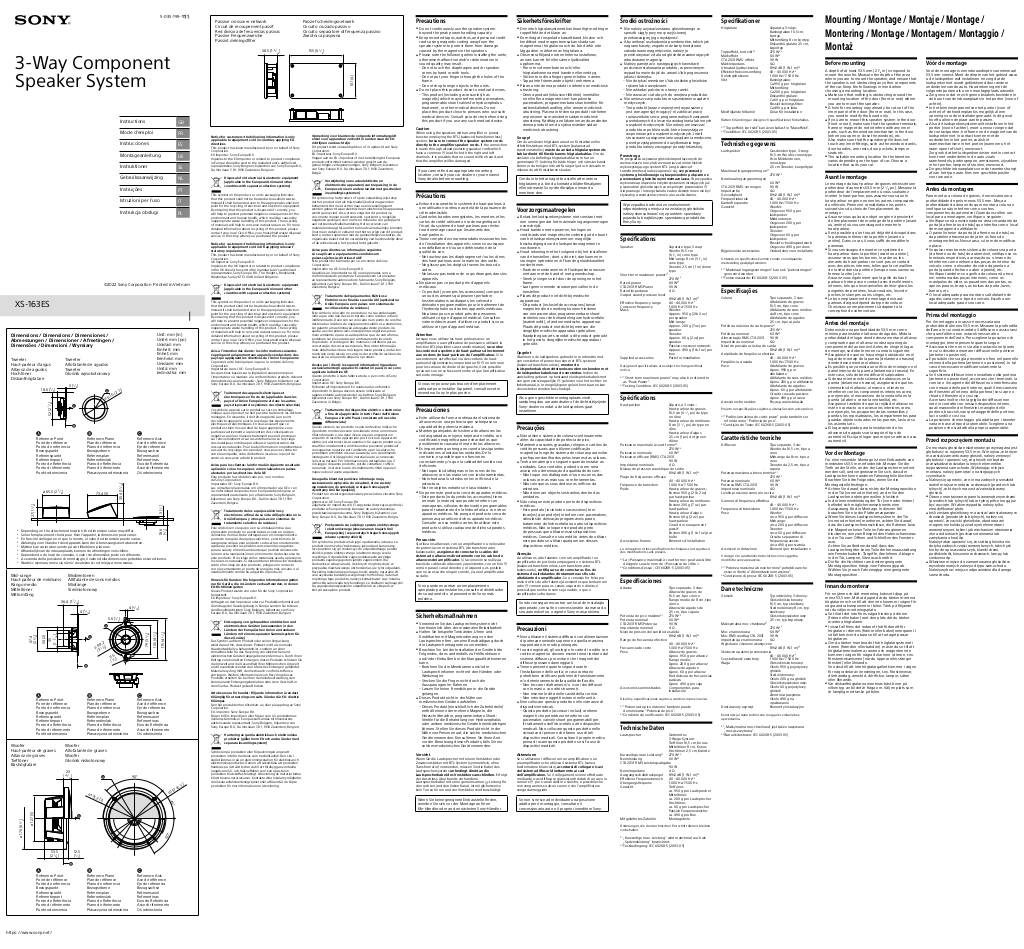

Scheda tecnica

n-20230531125356-50351991m.pdf

Sony XS-163ES Technical Specifications

  • Frequency response 40 - 40,000 Hz
  • Impedance (Ohm) 4
  • Sound pressure output 89 dB ±2 dB SPL (1 W, 1 m)
  • Peak power 270 W
  • Effective power 90 W
  • Nominal power 60 W
  • Midrange diameter 3.5" (8 cm)
  • Midrange magnetic material Neodymium
  • Dimensions and weight
  • Weight (midrange) 7.05 ounces
  • Weight (crossover) 1.08 pounds
  • Weight (tweeter) 2.12 ounces
  • Weight (woofer) 33.51 ounces
  • Speaker system configuration component, 2-way
  • Dimensions 6.5" (16 cm)
  • Tweeter diameter 1" (2.5 cm)
  • Soft dome
  • Tweeter diaphragm material Synthetic fiber
  • Tweeter magnet material Neodymium
  • Woofer surround material rubber (separate notch)
  • Woofer magnet material ferrite
€ 329,00 Price incl. VAT
