XS-162ES Mobile ES Series 2-way speaker kit

Sony

Discontinued

Your price:
€ 199,00
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
40 - 40.000 Hertz
Woofer Size
165 mm
Tweeter Size
25 millimetri
MAX Power
270 Watt
RMS Power
60 Watt
Sensitivity
89 dB
Impedance
4 Ohm
Woofer Material
Cono rinforzato in Mica
Tweeter Material
Cupola morbida in fibra

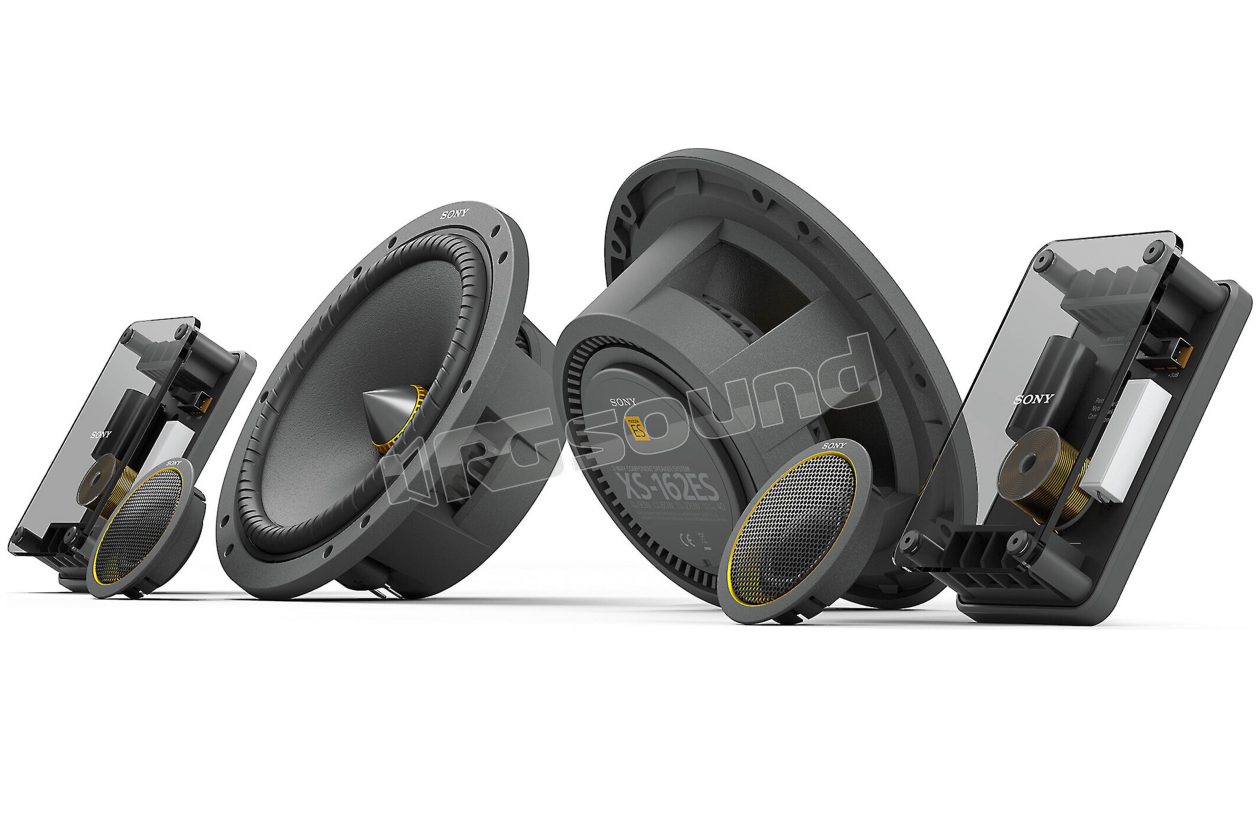

Sony XS-162ES 165mm two-way speaker system with high-resolution audio playback


The diaphragm of the main speaker of the XS-162ES system is made of Sony's exclusive mica-reinforced cellular material (MRC). The rigid yet lightweight driver allows for much more precise response compared to drivers made of conventional material and ensures a smoother and more natural sound. The integration of MRC in an exclusive matrix with aramid fibers eliminates diaphragm resonance and minimizes distortion, not only in the bass but also in the mid and high frequencies.

The result is powerful sound across all frequencies and incredibly clean, even at higher volumes. The woofer surround is equipped with another Sony proprietary technology, with curved notches that improve vertical amplitude symmetry to drastically reduce distortion and improve clarity.

XS-162ES Features

  • Phase plug: The phase plug for resonance damping on the XS-162ES woofer allows you to achieve ideal frequency response, up to the crossover point with synchronized tweeters. The rigid aluminum voice coil and Dynamic Air diffuser further support the speaker's wide frequency response, for controlled and dynamic bass.
  • Crossover with bi-amp functionality and gain selector: The sophisticated crossover of the Sony XS-162ES kit features a low-resistance film capacitor for maximum fluidity. The bi-amp functionality design reduces tweeter distortion when using the woofer with high input levels. The dedicated gain selector balances the woofer and tweeter signal levels and allows tweeter level adjustment even when managing the components from a single amplifier.
  • Tweeter for the highest notes: The soft dome tweeter diaphragm is directly connected to the voice coil, compatible with high-resolution audio, designed to cover the highest frequency sounds thanks to a frequency range that extends up to 40 kHz.

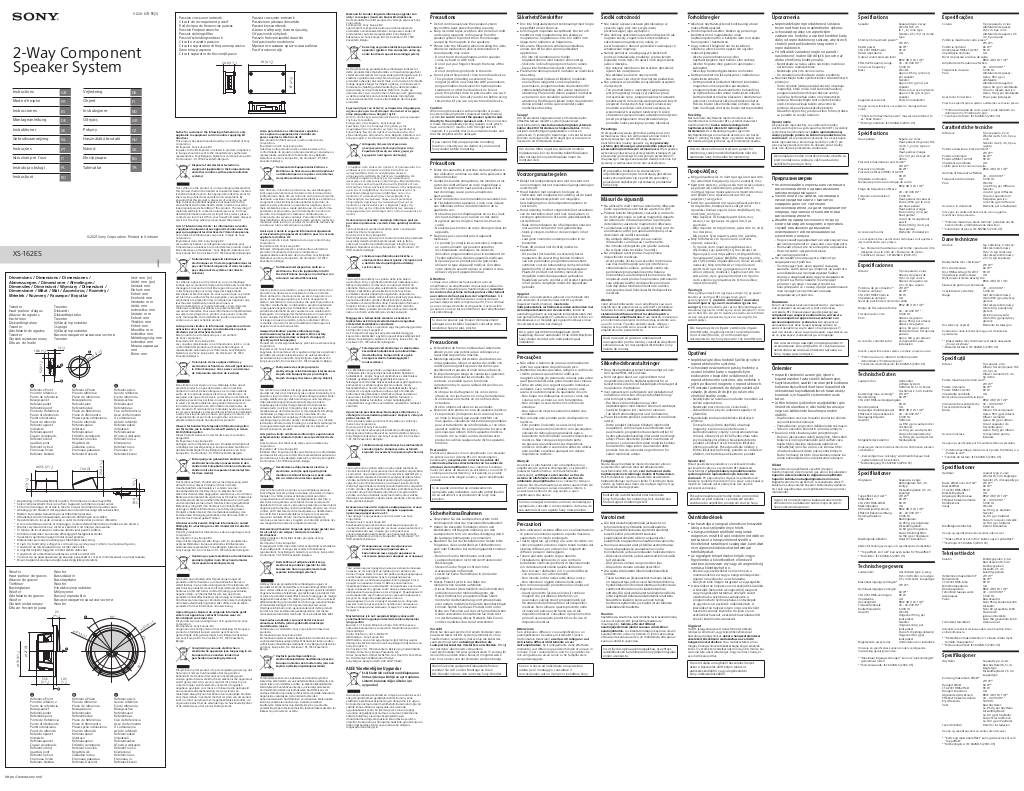

Manuale utente

n-20230531141615-50266731m.pdf

Woofer grilles Tweeter bracket

Sony XS-162ES Technical Specifications

  • 2-way speaker system
  • Woofer size 6 1/2" (16 cm)
  • Peak power 270 W
  • Nominal power 90 W
  • Nominal power, IEC 268-5 60 W
  • Effective frequency range 40-40,000 Hz
  • Sound pressure output 89 dB ± 2 dB SPL (1 W, 1 m)
  • Impedance (ohm) 4
  • Weight (woofer) 950 g
  • Weight (tweeter) 60 g
  • Weight (crossover) 160 g

Woofer

  • Speaker surround material rubber (separate notch)
  • Woofer magnet material Ferrite
  • Woofer diaphragm material MRC with aramid fiber matrix

Soft dome tweeter

  • Diameter 1" (2.5 cm)
  • Tweeter diaphragm material Synthetic fiber
  • Tweeter magnet material Neodymium
