XR-1800P 180mm 2-way component kit

Kenwood

Discontinued

Your price:
€ 210,80
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
57 ~ 20000 Hertz
Woofer Size
180 mm
MAX Power
330 Watt
RMS Power
110 Watt
Sensitivity
86 dB
Impedance
4 Ohm
Woofer Material
Polpa di cellulosa

XR-1800P 2-Way Separate Kit oversized 17cm

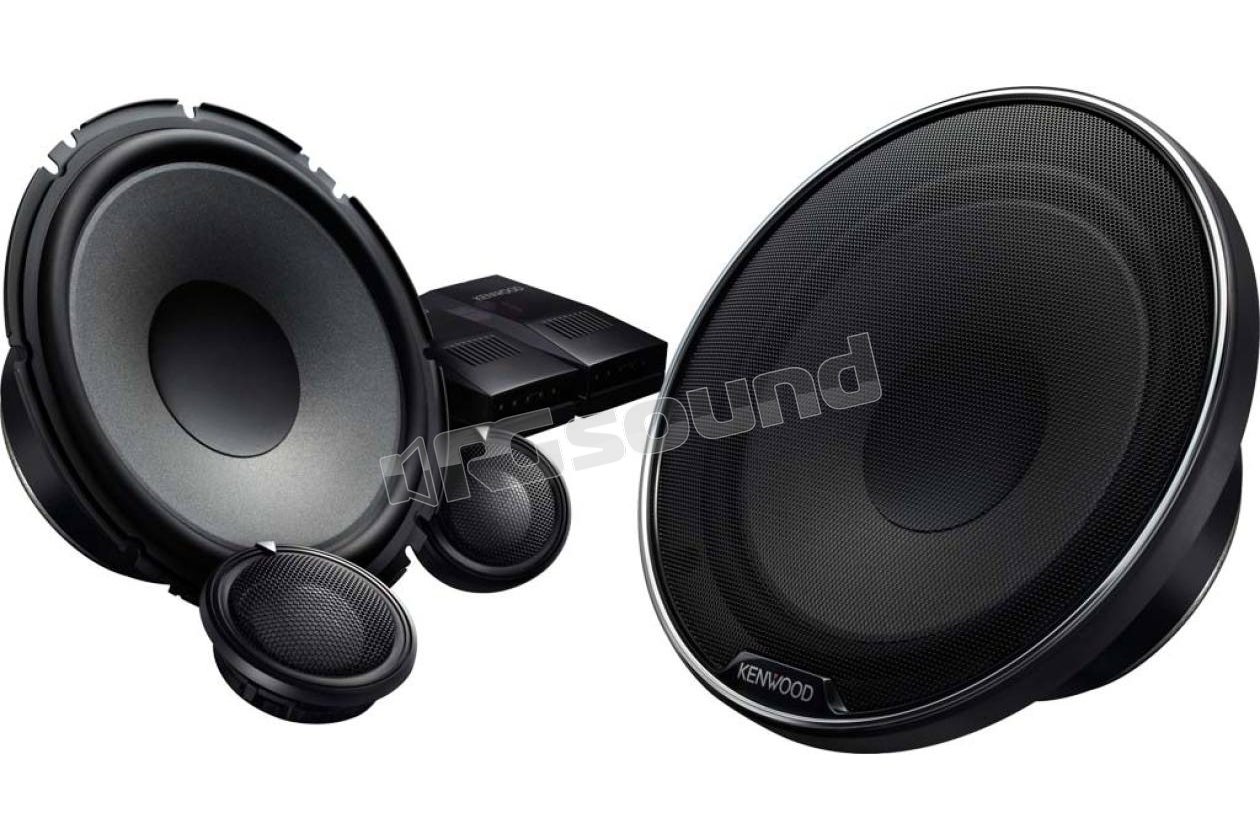

2-way kit composed of a pair of 180 mm woofers, a pair of tweeters, a pair of crossovers + installation accessories


Thanks to the advanced satin finish, the XR-1800P surface reduces unwanted distortions caused by vibrations. Furthermore, an optimal blend of cellulose pulp, hemp and fiberglass improves sound quality and extends the life of the device.

30mm Tweeter - The soft dome polyester tweeter coating fits perfectly with the oversized driver to generate a smooth transition between highs and mids.

Bigger is better! The oversized 7" cone offers deeper bass, greater power and better sound efficiency.


Main Features

2-way separate component speaker package
18 centimeter advanced hybrid pulp cone
30 millimeter dome tweeter
2-way tweeter mounting brackets for flush or surface mounting
High quality, compact dimensions, crossover network
330W Peak Input Power



Speaker Features

Speaker System 2-way Component
Peak Input Power 330W
Rated Input Power 110W
Speaker Size 193.5 x 85.3 (with grill)
Magnet Type Ferrite
Cross-over Network High quality crossover network



Speaker / Woofer Specifications

Peak Input Power 330W
Maximum Input Power 150W
Rated Input Power 110W
Woofer Cone Material Advanced hybrid pulp cone
Speaker Basket Steel
Speaker Surround Rubber
Sensitivity 86dB/W/m
Frequency Response 57Hz ~ 20000Hz
Dimensions (W x H x D) 176 x 176 x 69.5 millimeters
Mounting Depth 62 millimeters
Mounting Hole Diameter Ø 152.5 millimeters
Speaker Weight with Grille (pc.) 1160gr
Speaker Weight w / o Grille (pc.) 1050gr
Gross Weight 3900gr
Magnet Weight 330gr



Tweeter Specifications

Cone 53 millimeters
Cone Material Soft dome



Accessories

Screws (Parker-type) Ø 4 x 25mm, 12 pieces
Screws (Parker-type) Ø 4 x 6 mm, 8 pieces
Screws (Parker-type) Ø 3 x 16 mm, 4 pieces
Fixing Nut φ4, 8pieces
Fixing Nut φ3, 4pieces
Thumb Screw M5, 2 pieces
Butyl Rubber Yes
Grille Yes
Bracket for Flush Mounting 2 pieces
Electrical Circuit Box Yes, X'over network
Discontinued
