X-W10D4

Alpine

Discontinued

Your price:
€ 395,00
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
2700 Watt
RMS Power
900 Watt
Frequency Response
26 -200 Hertz
Sensitivity
83 dB
Impedance
4 + 4 Ohm
Installation Depth
174 mm
Woofer Material
Cono Mica

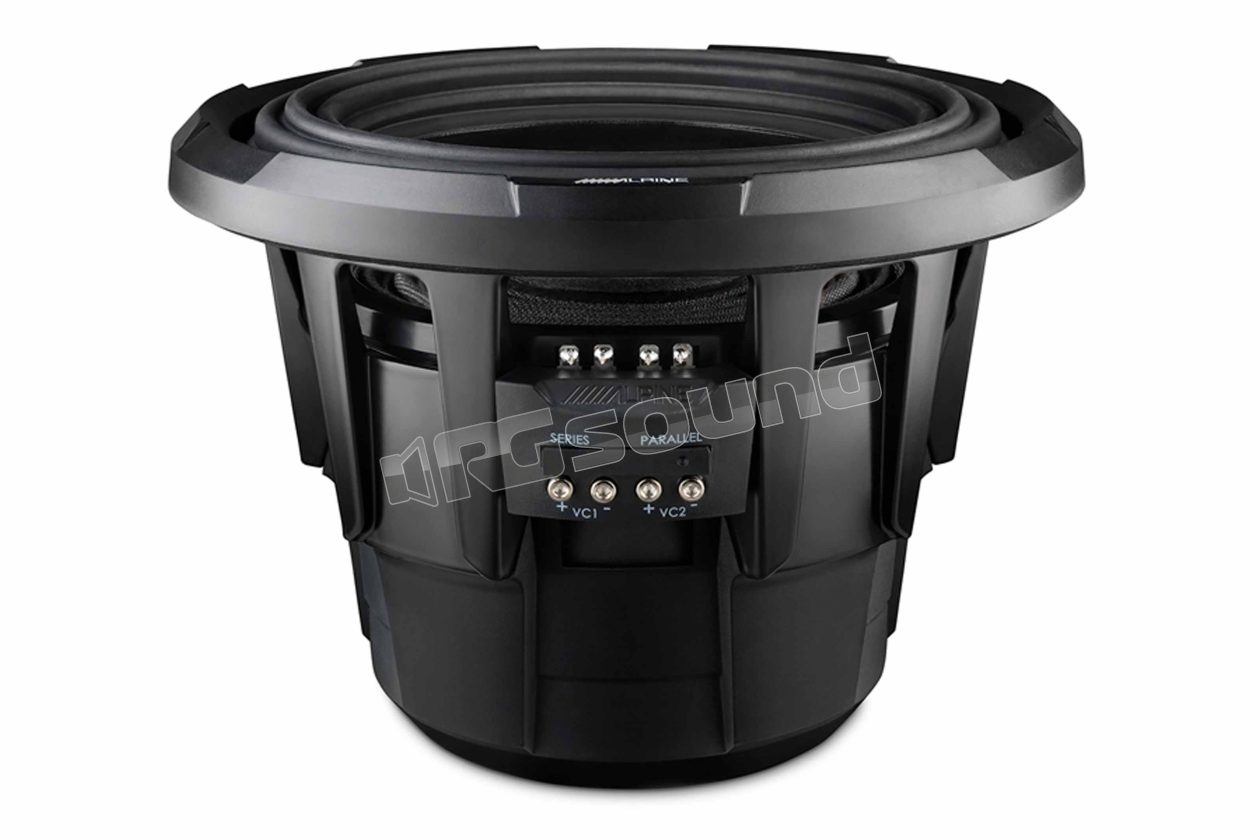

Alpine X-W10D4 25 cm (10") subwoofer X-Series with dual voice coil and 4 + 4 Ohm impedance

Alpine presents the new X-Series line of speakers, consisting of high-quality subwoofers and amplifiers. These products have been designed and tuned to create a perfect pairing for extraordinarily dynamic and realistic sound reproduction. With Alpine X-Series subwoofers, you get the maximum expression of Alpine's subwoofer technology for massive and accurate bass reproduction.

The X-W10D4 subwoofer is capable of handling up to 900 watts RMS and 2700W of maximum power. This speaker has a parabolic mica pulp cone that provides rigidity and strength for exceptional response and accuracy. An HAMR rubber surround connects the cone to the aluminum die-cast frame, while Alpine's latest technology allows the XW10D4 to move an incredible amount of air without overheating the voice coil thanks to the new ventilation circuit.

Alpine audio quality
900W power, making it a perfect match for the 900W X-A90M mono amplifier from the X series.

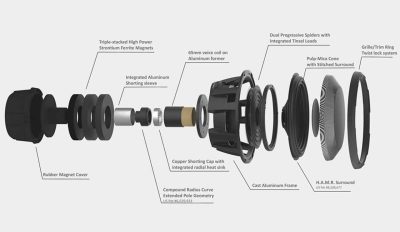

Linear Xmax 24mm (1-way), 48 mm peak-to-peak
Dual spiders for precise control over wide dynamic range
Dual shorting rings for strong motor control that ensures low THD and tight bass
Radial center pole heatsink that moves heat away from the voice coil and transfers it to the outside of the motor, for high long-term output
Largest HAMR surround yet, for linear cone movement throughout its wide excursion range
Light yet rigid pulp/mica cone that allows extremely precise bass with excellent natural tone
Twist-Lock adjustment ring with complete mesh grille included

Alpine X-W10D4 technical specifications

Maximum power: 2700 Watt
RMS power: 900 Watt
Frequency response: 26 Hz - 200 Hz
Installation depth: 174 mm
Installation diameter: 229 mm

Scheda tecnica

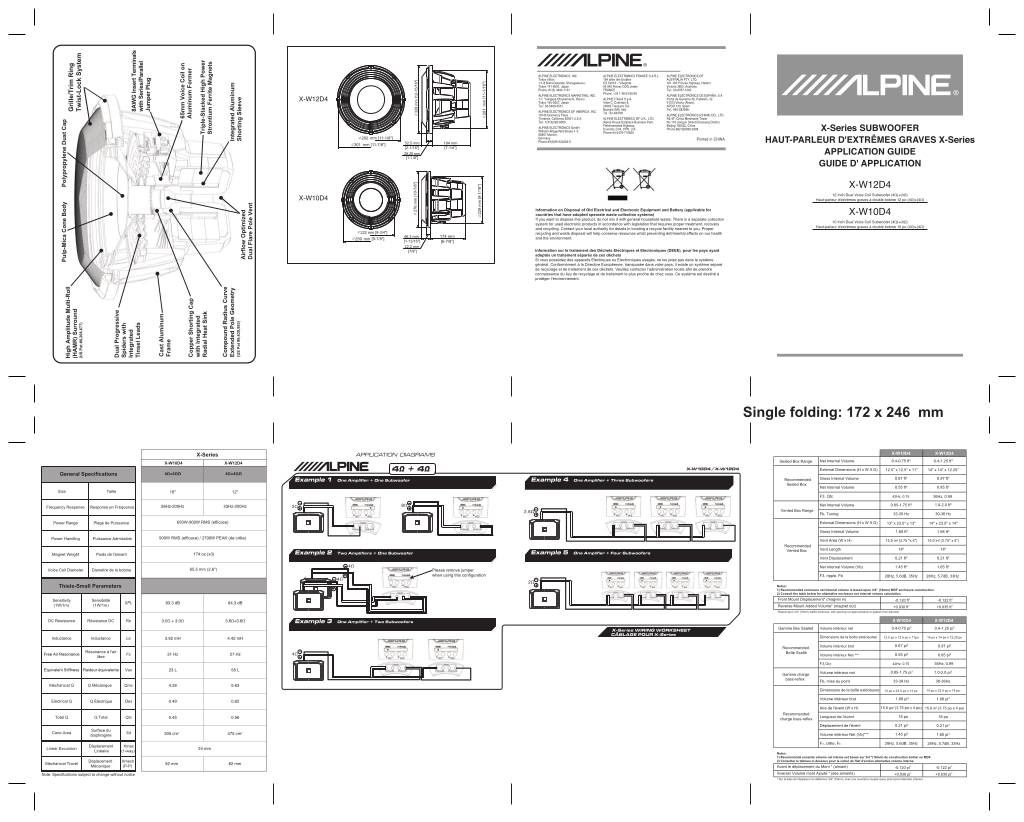

n-20180710104845-om-x-w12d4-x-w10d4-en.pdf
