X-S65C 16.5 cm 2-way component kit with HD music playback

Alpine

Discontinued

Your price:
€ 454,10
Price per single item (VAT included)
Type
2-way separate kit
Frequency Response
55 - 50.000 Hertz
Woofer Size
165 mm
Tweeter Size
25 millimetri
MAX Power
360 Watt
RMS Power
120 Watt
Sensitivity
89 dB
Impedance
4 Ohm
Woofer Material
Cono con nano fibre
Tweeter Material
Cupola in carbonio

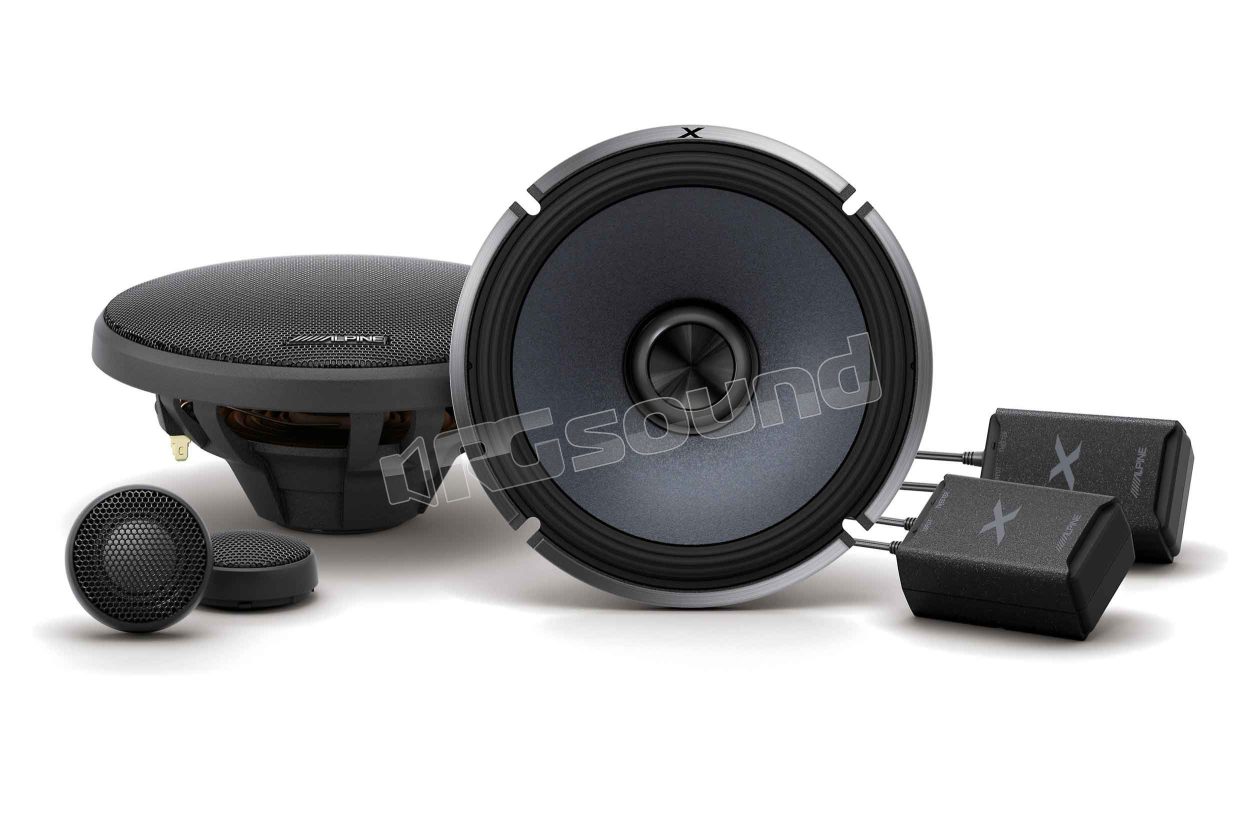

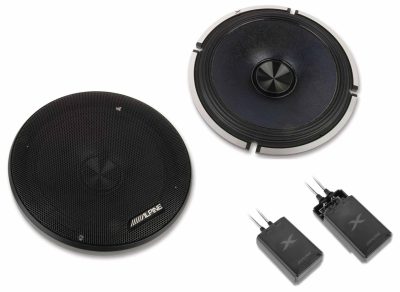

Alpine X-S65C Series X 2-way speaker system composed of 16.5 cm (6-1/2") woofer, hard dome tweeter in carbon graphite and dedicated crossovers

Key features: maximum power 360 W, nominal power 120 W, frequency response: 55 Hz - 50 kHz.

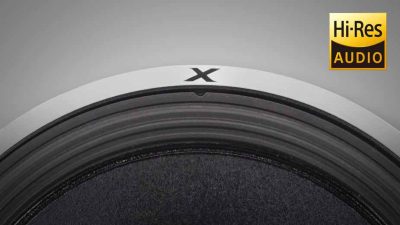

Alpine presents the new Series X speaker and amplifier range. These products have been designed and engineered to guarantee dynamic and realistic sound, maintaining an optimal sound stage. With Alpine Series X speakers, you can listen to precise high-resolution audio reproduction up to 40kHz. These top-of-the-line speakers have been designed and tuned with high precision and are made with high quality materials, while maintaining an affordable price and guaranteeing installation on many vehicles.

Alpine Sound ID which means "Defined Image" is a new global philosophy, whose objective is to provide what is missing from most audio systems. The Alpine ID philosophy is based on the development of audio systems that work together to create an acoustic environment as close as possible to reality. The elements combined together allow the listener to experience a new level of sound realism inside their vehicle. In other words, the listener can experience music as the artist had conceived it. Speakers, subwoofers and amplifiers of the X series are the foundation from which Alpine starts to give the listener this experience of pure music.

Strengths of the Alpine X-S65C

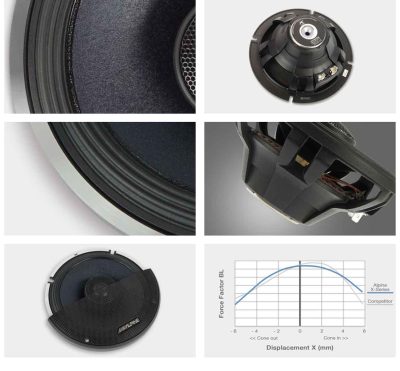

Extreme ease of installation due to the use of high-power neodymium magnets for the new Series X speakers. This means the magnet can be much smaller compared to the design of traditional speakers, guaranteeing much lower levels of mounting depth and space inside the doors.

The new motor design uses a powerful neodymium magnet. This ensures a very compact basket and motor assembly, while offering handling and dynamics at high power.

The High Amplitude Multi-Roll (HAMR) surround guarantees maximum cone excursion for unique SPL performance, while maintaining full control of the diaphragm at any point of excursion for extraordinary levels of sound clarity.

Speakers with a balanced motor force. When the cone moves, the external appearance does not change thanks to this balanced force. Alpine Series X speakers offer excellent linearity for unique sound purity.

The woofer cone is composed of a new nanofiber material to offer superior levels in terms of dynamics and response speed, while maintaining high clarity and realistic sound reproduction.

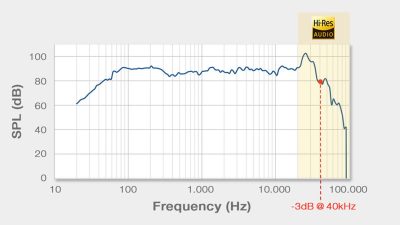

Speaker system with a very wide frequency response to faithfully reproduce the sound and harmonic details of the track you are listening to.

Instead of the normal silk dome tweeter, Alpine has chosen the new hard dome tweeter in carbon graphite. This lightweight tweeter guarantees better response in the highest ranges up to 40kHz to offer the highest sound precision.

The sides of the super-compact crossover open so you can have plenty of space to access the adjustments. It is possible to adjust the tweeter level in three steps (-3 / 0 / +3 db) and also adjust the tweeter phase (normal / reverse)

Alpine X-S65C Technical Specifications

Maximum power 360 Watts

RMS Power: 120 Watts

Woofer mounting hole diameter: 137 mm

Woofer mounting depth: 59 mm

Crossover dimensions: 45 x 70 x 30 mm

Frequency response: 55 Hz - 50 kHz

Impedance: 4 Ohm

Recommended amplification: 120 W RMS, per channel

Sensitivity: 89dB / W (1m)

2.5 cm carbon graphite tweeter (Hard Dome)

Neodymium magnet

Surface mounting application

Woofer cone in nano-fiber

HAMR Surround

Wide 35 mm voice coil

High density neodymium magnet

Compact design for easy installation

Tweeter level adjustment: 3 steps (-3, 0, + 3dB)
