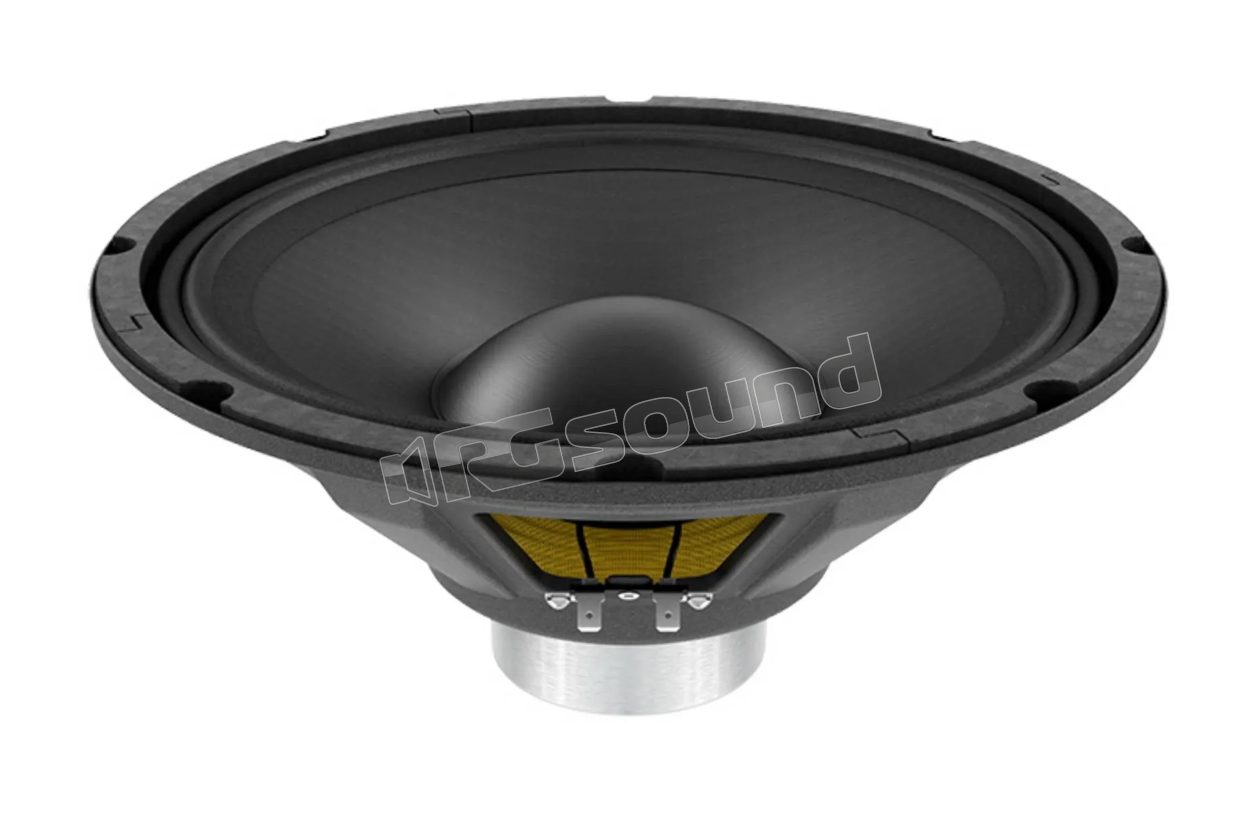

WSN122.50-4 30cm woofer

LaVoce
Your price:
€ 114,10
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
300 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
50 - 3000 Hertz
Sensitivity
97 dB
Impedance
4 Ohm
Weight
2 Kg
Installation Depth
125 mm
Woofer Material
Cellulosa trattata

LaVoce WSN122.50-4 12"/300mm woofer, 4 Ohm impedance


LaVoce code VLR01121

WSN122.50-4 Features

  • 2.5 inch copper voice coil
  • Sensitivity 97 db/spl
  • Program power handling 500 watts
  • FEM optimized motor and suspensions
  • Optimized cooling system
  • Resonance-free and durable basket design

LaVoce WSN122.50-4 technical specifications

  • Nominal diameter 300 mm (12 in)
  • Nominal impedance 4 ohm
  • Minimum impedance 3.6 ohm
  • Program power 500 W
  • Rated power AES 250 W
  • Sensitivity 97 dB
  • Frequency range 50 ÷ 3000 Hz
  • Voice coil diameter 65 mm (2.5 in)
  • Frame material STEEL
  • Magnet material NEODYMIUM
  • Magnet dimensions OD x ID x h 64 x 8 mm (2.52 x 0 x 0.31) in)
  • Coil material COPPER
  • Former material FIBERGLASS
  • Cone material WATER-RESISTANT TREATED PAPER + WATERPROOF TREATMENT ON FRONT SIDES
  • Surround material POLYTONE
  • Xmax 5.3 mm (0.21 in)
  • Xmech 9.5 mm (0.37 in)
  • Gap height 8.2 mm (0.32 in)
  • Voice coil winding height 14.7 mm (0.58 in)
  • Driver displacement volume 1.6 l (0.057 ft³)
  • Recommended enclosure 39.6 l (1.398 ft³)
  • Recommended tuning 55 Hz
  • DC resistance (Re) 3.1 ohm
  • Diaphragm area (Sd) 531 cm² (82.305 in²)
  • Resonance frequency (Fs) 49 Hz
  • Moving mass (Mms) 60.6 g (2.138 oz)
  • Compliance (Cms) 0.174 mm/N
  • Force factor (BxL) 13.64 N/D
  • Mechanical Q factor (Qms) 4.29
  • Electrical Q factor (Qes) 0.34
  • Total Q factor (Qts) 0.29
  • Equivalent air volume (Vas) 64.43 l (2.275 ft³)
  • Voice coil inductance (Le) 0.49 mH
  • Reference efficiency (Eta 0) 2.51 %
  • Bandwidth efficiency product (EBP) 144 Hz
