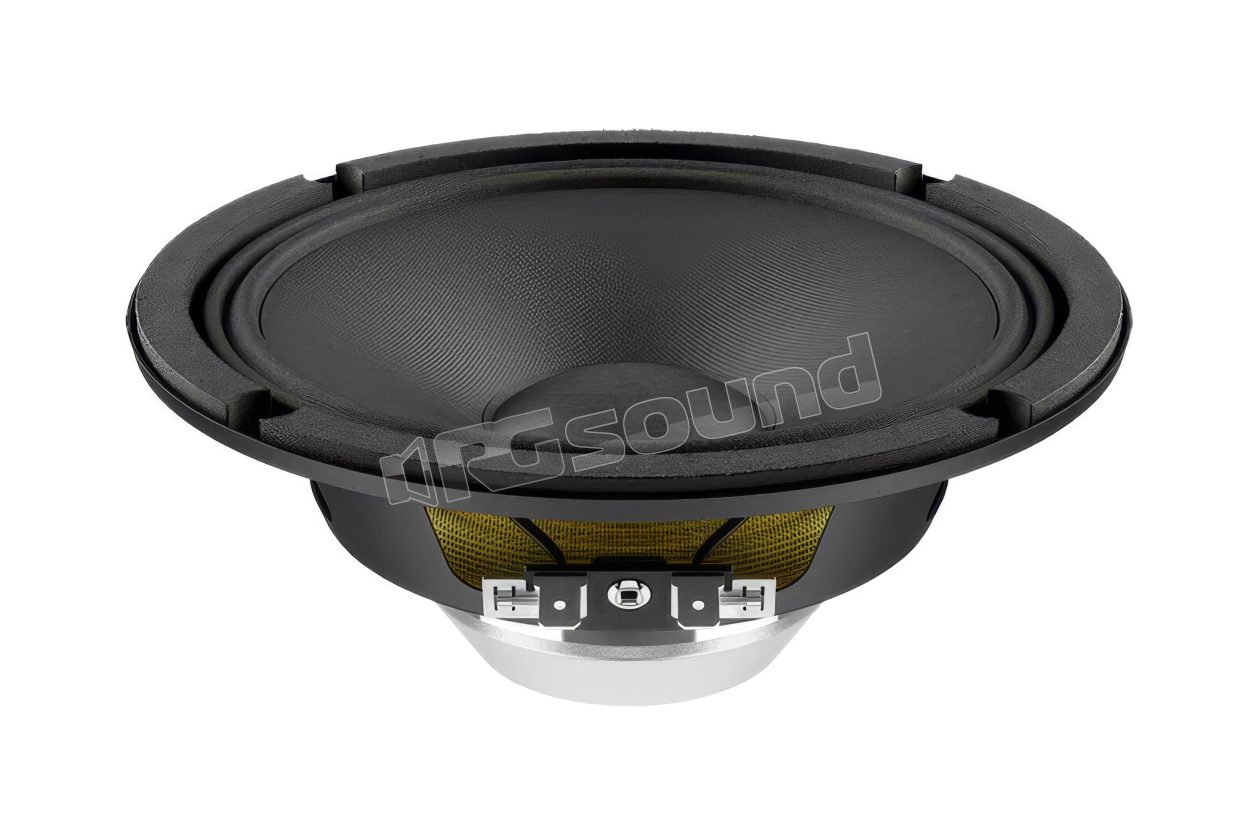

WSN061.52-4 16.5cm woofer with neodymium magnet

LaVoce
Your price:
€ 57,10
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
250 Watt
RMS Power
125 Watt
Frequency Response
90 - 6000 Hertz
Sensitivity
92,5 dB
Impedance
4 Ohm
Weight
0,9 Kg
Installation Depth
61 mm

LaVoce WSN061.52-4 6.5 woofer with neodymium magnet, 4 Ohm impedance

LaVoce code VLR01062

WSN061.52-4 Features

  • 1.5 inch copper voice coil
  • 92.5 db/spl sensitivity
  • 250 watts program power handling
  • Optimized motor and suspension
  • Resonance-free basket design and resistant

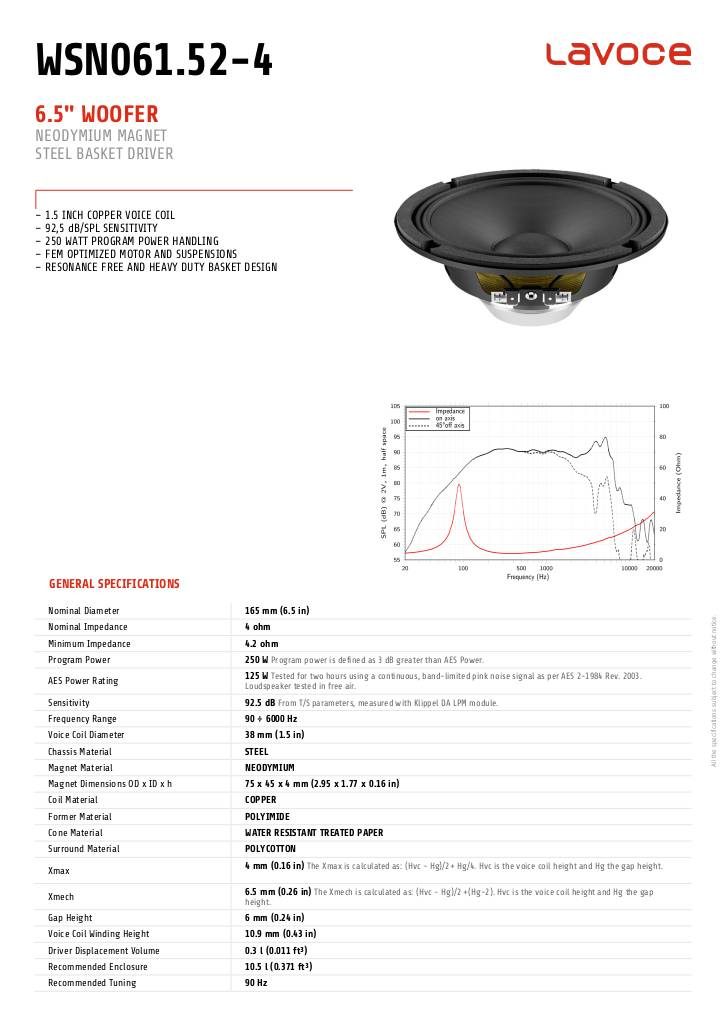

Scheda tecnica

n-20260824122444-lavoce-wsn061-52-4.pdf

LaVoce WSN061.52-4 technical specifications

  • Nominal diameter 165 mm (6.5 in)
  • Nominal impedance 4 ohm
  • Minimum impedance 4.2 ohm
  • Program power 250 W
  • AES nominal power 125 W
  • Sensitivity 92.5 dB
  • Frequency range 90 ÷ 6000 Hz
  • Voice coil diameter 38 mm (1.5 in)
  • Frame material STEEL
  • Magnet material NEODYMIUM
  • Magnet dimensions OD x ID x h 75 x 45 x 4 mm (2.95 x 1.77 x 0.16 in)
  • Coil material COPPER
  • Former material POLYIMIDE
  • Cone material WATER-RESISTANT TREATED PAPER
  • Surround material POLITONE
  • Xmax 4 mm (0.16 in)
  • Xmech 6.5 mm (0.26 in)
  • Gap height 6 mm (0.24 in)
  • Voice coil winding height 10.9 mm (0.43 in)
  • Driver displacement volume 0.3 l (0.011 ft³)
  • Recommended enclosure 10.5 l (0.371 ft³)
  • Recommended tuning 90 Hz
  • DC resistance (Re) 3.5 ohm
  • Diaphragm area (Sd) 132 cm² (20.46 in²)
  • Resonance frequency (Fs) 90 Hz
  • Moving mass (Mms) 14.9 g (0.526 oz)
  • Compliance (Cms) 0.209 mm/N
  • Force factor (BxL) 8.65 N/D
  • Mechanical Q factor (Qms) 5.49
  • Electrical Q factor (Qes) 0.39
  • Total Q factor (Qts) 0.37
  • Equivalent air volume (Vas) 5.15 l (0.182 ft³)
  • Voice coil inductance (Le) 0.33 mH
  • Reference efficiency (Eta 0) 0.92 %
  • Bandwidth efficiency product (EBP) 231 Hz
