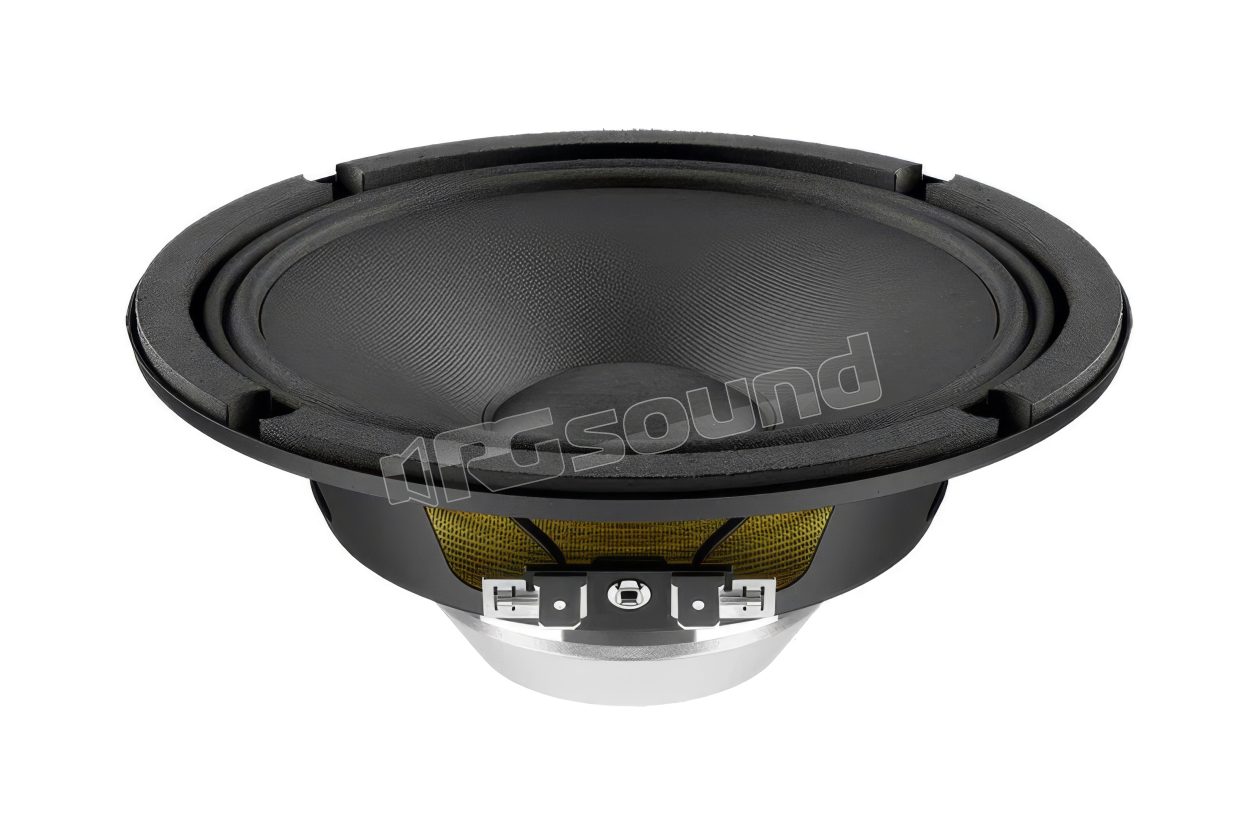

WSN061.52-16 16.5 cm woofer, 16 Ohm impedance

LaVoce
Your price:
€ 57,10
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
250 Watt
RMS Power
125 Watt
Frequency Response
90 - 6000 Hertz
Sensitivity
93 dB
Impedance
16 Ohm
Weight
0,9 Kg
Installation Depth
61 mm
Voice Coil Diameter
38 mm

LaVoce WSN061.52-16 6.5 woofer with neodymium magnet, 16 Ohm impedance

LaVoce code VLR01061

WSN061.52-16 Features

  • 1.5 inch copper voice coil
  • 93 db/spl sensitivity
  • 250 watt program power handling
  • Optimized motor and suspension
  • Resonance-free and durable basket design

Scheda tecnica

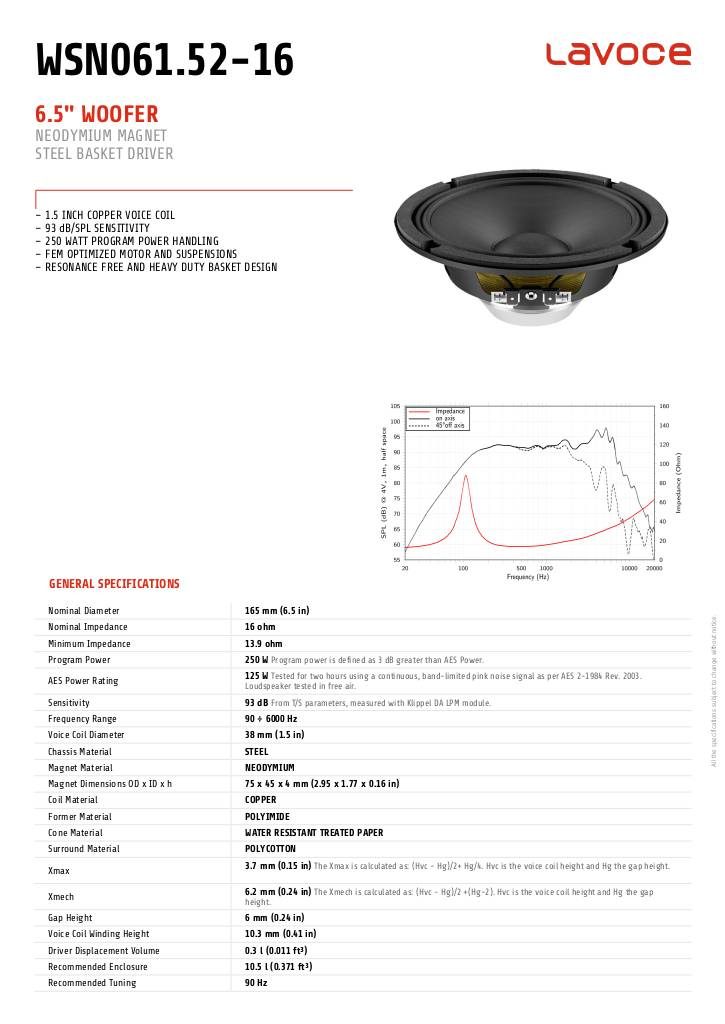

n-20260824120805-lavoce-wsn061-52-16.pdf

LaVoce WSN061.52-16 technical specifications

  • Nominal diameter 165 mm (6.5 in)
  • Nominal impedance 16 ohm
  • Minimum impedance 13.9 ohm
  • Program power 250 W
  • Nominal AES power 125 W
  • Sensitivity 93 dB
  • Frequency range 90 ÷ 6000 Hz
  • Voice coil diameter 38 mm (1.5 in)
  • Frame material STEEL
  • Magnet material NEODYMIUM
  • Magnet dimensions OD x ID x h 75 x 45 x 4 mm (2.95 x 1.77 x 0.16 in)
  • Coil material COPPER
  • Former material POLYIMIDE
  • Cone material WATER RESISTANT TREATED PAPER
  • Surround material POLITONE
  • Xmax 3.7 mm (0.15 in)
  • Xmech 6.2 mm (0.24 in)
  • Gap height 6 mm (0.24 in)
  • Voice coil winding height 10.3 mm (0.41 in)
  • Driver displacement volume 0.3 l (0.011 ft³)
  • Recommended enclosure 10.5 l (0.371 ft³)
  • Recommended tuning 90 Hz
  • DC resistance (Re) 11.8 ohm
  • Diaphragm area (Sd) 132 cm² (20.46 in²)
  • Resonance frequency (Fs) 108 Hz
  • Moving mass (Mms) 12 g (0.423 oz)
  • Compliance (Cms) 0.181 mm/N
  • Force factor (BxL) 12.56 N/D
  • Mechanical Q factor (Qms) 3.94
  • Electrical Q factor (Qes) 0.61
  • Total Q factor (Qts) 0.53
  • Equivalent air volume (Vas) 4.46 l (0.158 ft³)
  • Voice coil inductance (Le) 0.66 mH
  • Reference efficiency (Eta 0) 0.89 %
  • Bandwidth efficiency product (EBP) 177 Hz
