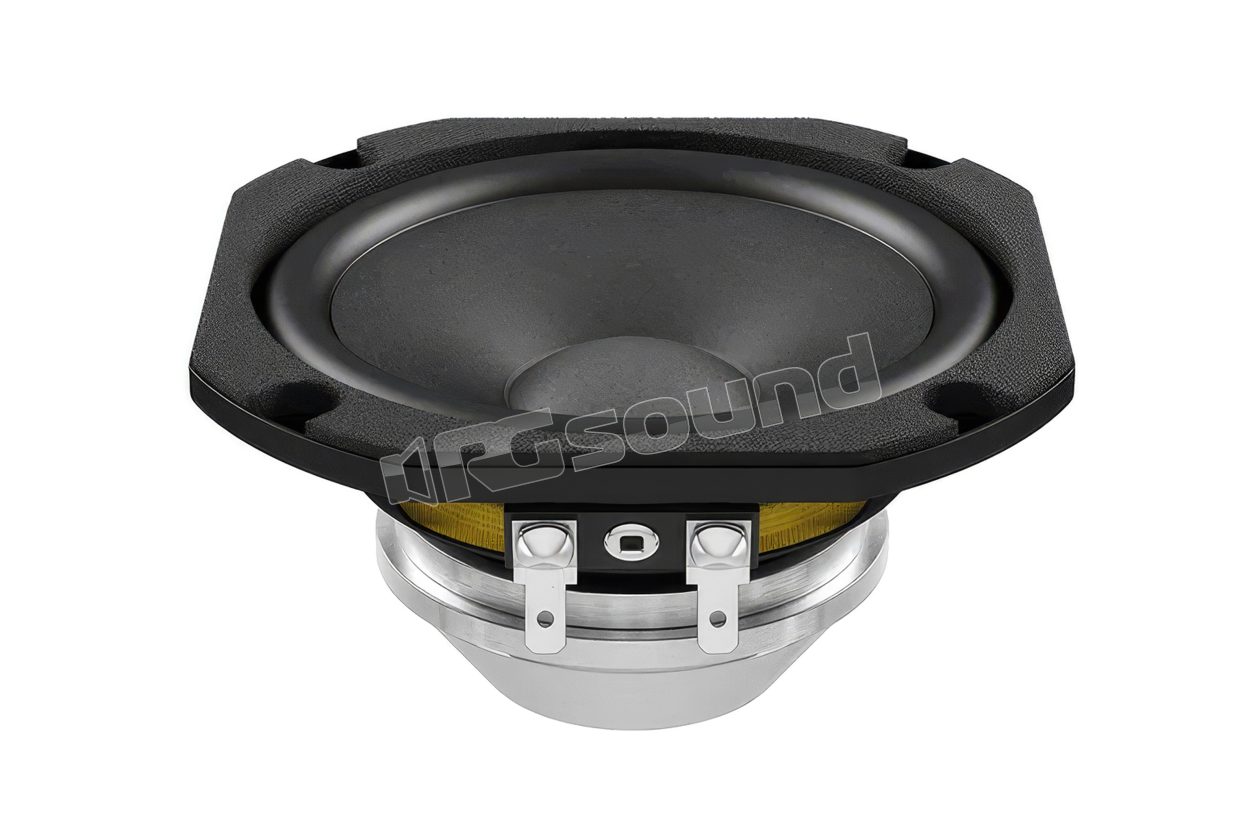

WSN041.00-16 4"/100mm woofer, 16 Ohm

LaVoce
Your price:
€ 48,50
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
4x6''
MAX Power
240 Watt
RMS Power
120 Watt
Frequency Response
150 - 9000 Hertz
Sensitivity
97 dB
Impedance
668 Ohm
Weight
2,3 Kg
Installation Depth
74 mm
Voice Coil Diameter
38 mm

LaVoce WSN041.00-16 4"/100mm Woofer, 16 Ohm


LaVoce code 70R06046

WSN041.00-16 Features

  • Neodymium magnet

  • Steel basket frame

  • 1 inch ccaw voice coil

  • 91 db/spl sensitivity

  • 80 watt program power handling

  • Optimized motor and suspension

  • Resonance-free and robust basket design

  • Rubber surround material

LaVoce WSN041.00-16 Technical Specifications

  • Nominal diameter 100 mm (4 in)
  • Nominal impedance 16 ohm
  • Minimum impedance 13.5 ohm
  • Program power 80 W
  • AES rated power 40 W
  • Sensitivity 91 dB
  • Frequency range 100 ÷ 12000 Hz
  • Voice coil diameter 25 mm (1 in)
  • Frame material STEEL
  • Magnet material NEODYMIUM
  • Magnet dimensions OD x ID x h 65 x 32 x 4 mm (2.56 x 1.26 x 0.16 in)
  • Coil material COPPER
  • Former material POLYIMIDE
  • Cone material WATER-RESISTANT TREATED PAPER
  • Surround material RUBBER
  • Xmax 4.3 mm (0.17 in)
  • Xmech 6 mm (0.24 in)
  • Gap height 5 mm (0.2 in)
  • Voice coil winding height 11 mm (0.43 in)
  • Driver displacement volume 0.125 l (0.004 ft³)
  • Recommended enclosure 2 l (0.071 ft³)
  • Recommended tuning 165 Hz
  • DC resistance (Re) 12 ohm
  • Diaphragm area (Sd) 56 cm² (8.68 in²)
  • Resonance frequency (Fs) 106 Hz
  • Moving mass (Mms) 5.12 g (0.181 oz)
  • Compliance (Cms) 0.442 mm/N
  • Force factor (BxL) 10.39 N/D
  • Mechanical Q factor (Qms) 6.47
  • Electrical Q factor (Qes) 0.38
  • Total Q factor (Qts) 0.36
  • Equivalent air volume (Vas) 1.96 l (0.069 ft³)
  • Voice coil inductance (Le) 0.42 mH
  • Reference efficiency (Eta 0) 0.59 %
  • Bandwidth efficiency (EBP) 279 Hz
