WSF121.70G-8 12"/300 mm guitar speaker

LaVoce
Your price:
€ 79,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

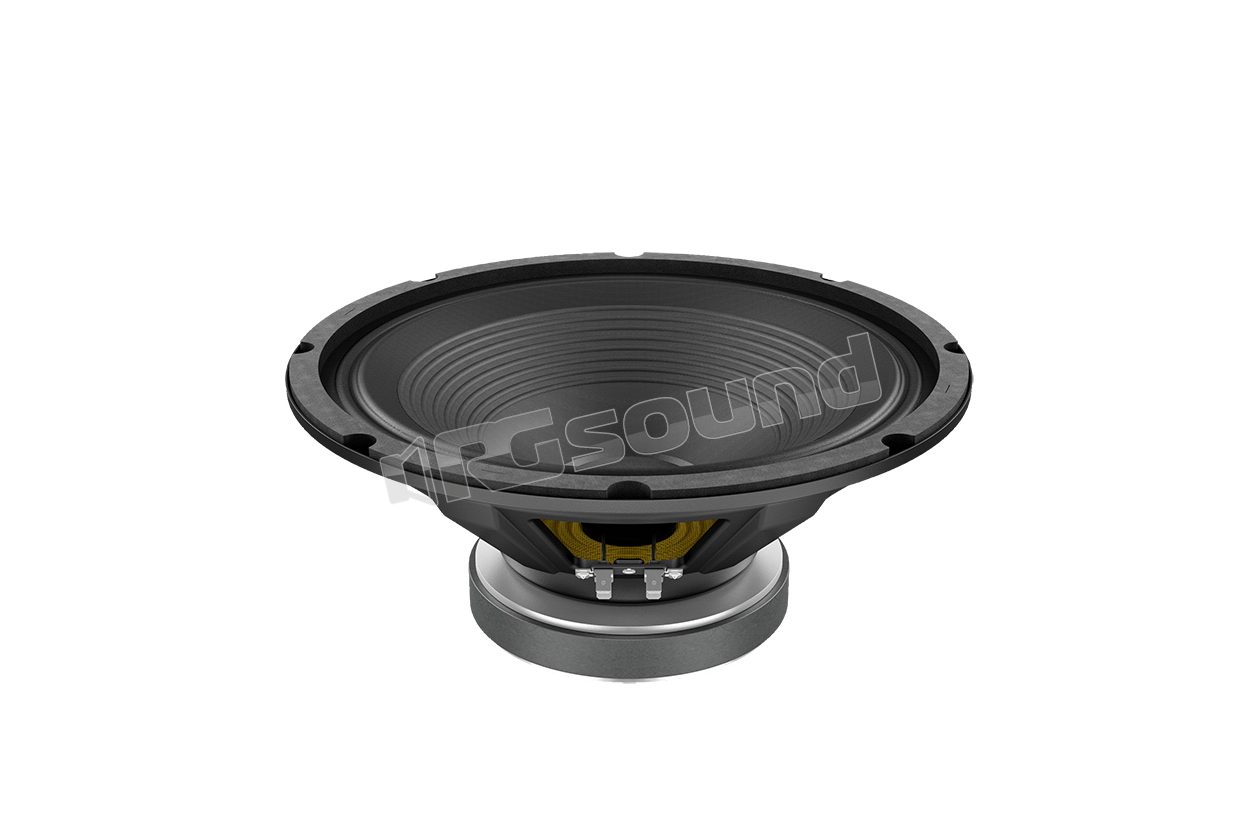

LaVoce WSF121.70G-8 Guitar Speaker 12"/300 mm

Main features of the WSF121.70G-8 speaker

  • 1.8 inch copper voice coil
  • Sensitivity 99 db/spl
  • Program power handling 200 watt
  • Soft and silky tone
  • Controlled bass, fat and warm midrange, detailed highs rich in harmonics

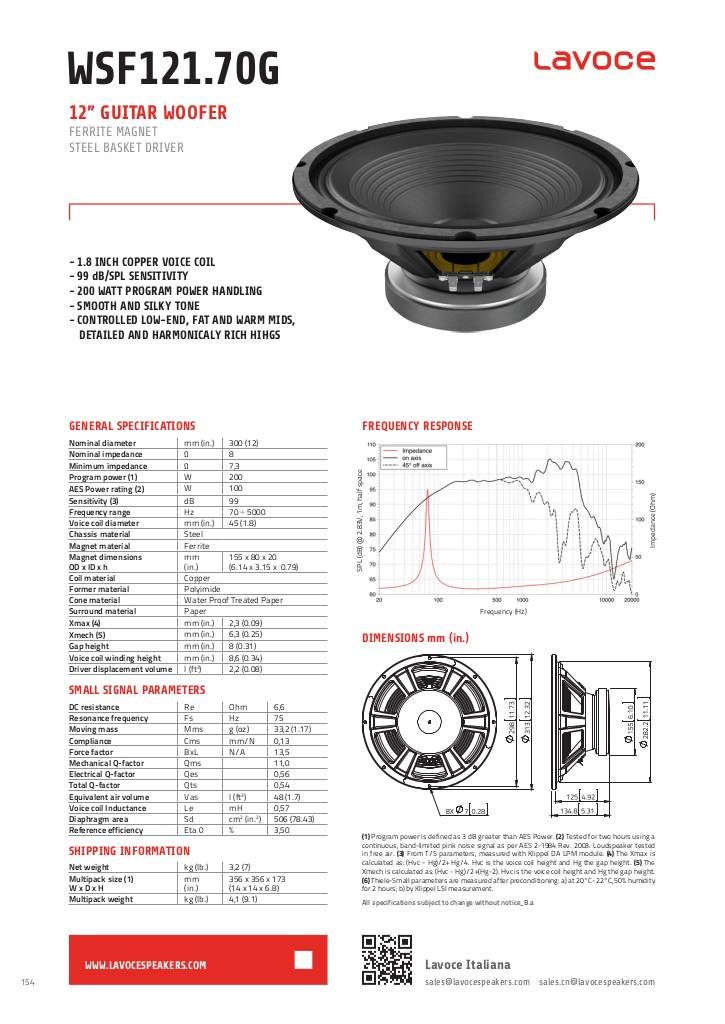

scheda tecnica

1549117528-wsf12170g-8-1.pdf

LaVoce WSF121.70G-8 Technical Specifications

  • Nominal diameter mm (in) 300 (12)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 7.3
  • Program power W 200
  • AES power W 100
  • Sensitivity dB 99
  • Frequency range Hz 70 ÷ 5000
  • Voice coil diameter mm (in) 45 (1.8)
  • Frame material Steel
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 155 x 80 x 20 (6.14 x 3.15 x 0.79)
  • Coil material Copper
  • Structure material Polyimide
  • Cone material Waterproof treated paper
  • Surround material Paper
  • Xmax mm (in) 2.3 (0.09)
  • Xmech mm (in) 6.3 (0.25)
  • Gap height mm (in) 8 (0.31)
  • Voice coil winding height mm (in) 8.6 (0.34)
  • Driver displacement volume l (ft³) 2.2 (0.08)
  • DC resistance Ohm 6.6
  • Resonance frequency Hz 75
  • Moving mass g (oz) 33.2 (1.17)
  • Compliance mm/N 0.13
  • Force factor N/A 13.5
  • Mechanical Q factor 11
  • Electrical Q factor 0.56
  • Total Q factor 0.54
  • Equivalent air volume l (ft3) 48 (1.7)
  • Voice coil inductance mH 0.57
  • Diaphragm area cm2 (in.2) 506 (78.43)
  • Reference efficiency 3.5%
  • Net weight kg (lb) 3.2 (7)
  • Multipack dimensions L x W x H 356 x 356 x 173 (14 x 14 x 6.8)
  • Multipack weight kg (lb) 4.1 (9.1)
€ 79,00 Price incl. VAT
