WL5 line array driver

Beyma

Discontinued

Your price:
€ 997,00
Price per pair (VAT included)
Type
Super Tweeter
Speaker Size
Other sizes
MAX Power
100 Watt
RMS Power
50 Watt
Frequency Response
600 - 20.000 Hertz
Sensitivity
108 dB
Impedance
8 Ohm
Weight
2,62 Kg
Installation Depth
271 mm
Voice Coil Diameter
72 mm

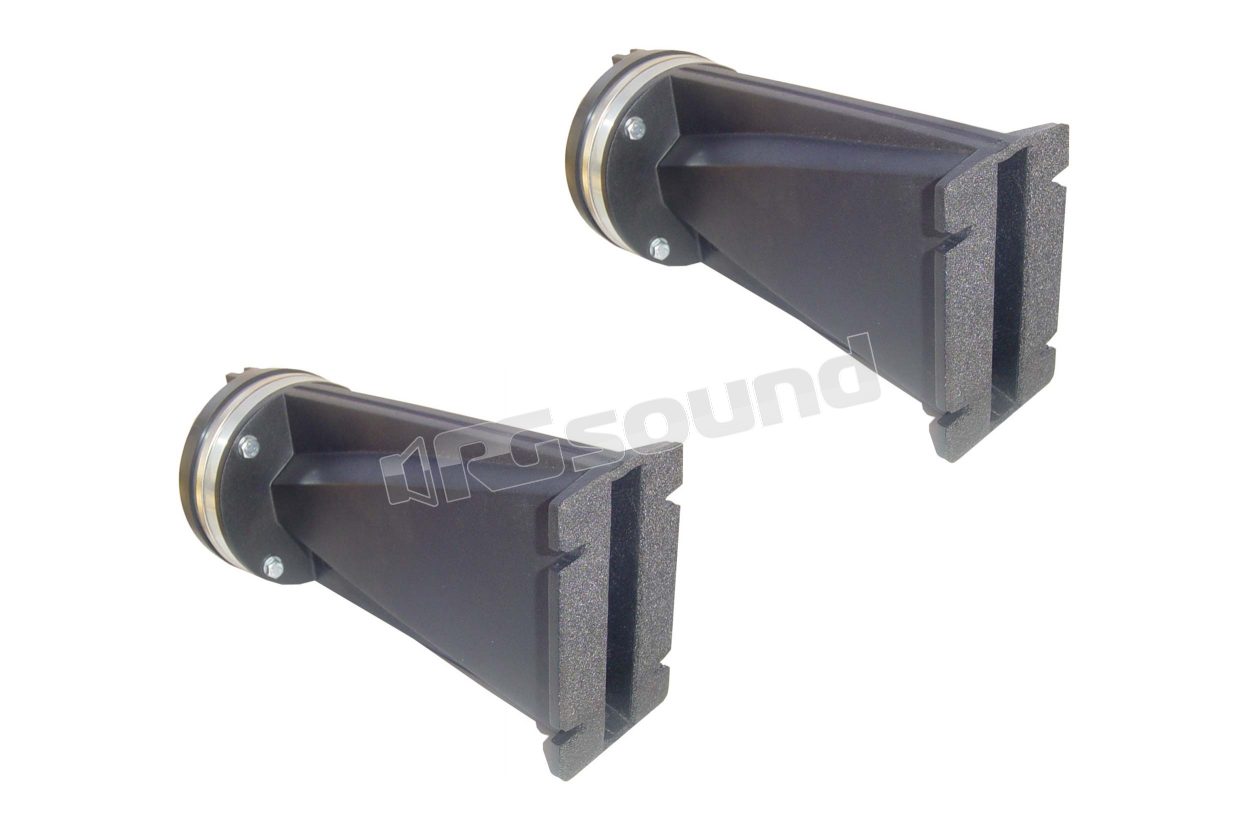

Beyma WL5 pair of line array drivers with 5" x 1" rectangular output and neodymium magnetic circuit for high efficiency.

Effective acoustic coupling up to 16 kHz, sensitivity 108 dB, minimum recommended crossover frequency of 0.8 kHz. 3" voice coil for better power handling.

This combination of high-power neodymium compression drivers with waveguide offers a simple solution for realizing a Line Array System, solving the difficult problem of achieving optimal coupling between adjacent high-frequency transducers.

Instead of using expensive and complicated wave shaping devices, a simple but effective waveguide transforms the circular opening of the compression driver into a rectangular surface, without excessive opening of the angle to provide low curvature to the acoustic wavefront, arriving to satisfy the curvature requirements for optimal acoustic coupling between adjacent sources up to 16 kHz. This is achieved with the minimum possible length for low distortion, but without being excessively short, which would cause strong high-frequency interference. The 3" diameter voice coil and diaphragm structure allow a low crossover frequency. This makes this solution suitable for use with 5", 6.5", 8" and 10" drivers, facilitating the high frequency requirements of Mid Band Line Array drivers.

Beyma WL5 technical specifications

Throat diameter 36 mm 1.4 in

Flange height 125 mm 5 in

Nominal impedance 8 Ohm

Minimum impedance 7.2 ohm @ 3 kHz

Re 5.5 ohm

Power capacity 50 W AES above 0.8 kHz

Program power 100 W above 0.8 kHz

Sensitivity 108 dB 1 W @ 1 m

Frequency range 600-20000 Hz

Recom. crossover frequency 800 Hz or higher (12 dB/oct. min slope)

Voice coil diameter 72.2 mm 2.9 in

Flux density 2 T

BL factor 11 N /A

Diaphragm material titanium dome with polyester surround

External diameter 123 mm 4.84 in

Depth 271 mm 10.67 in

Four 7.5 mm diameter holes

Net weight 2.62 kg 5.76 lb.

Total weight (2 units) 5.65 kg 12.43 lb.

Magnet Neodymium

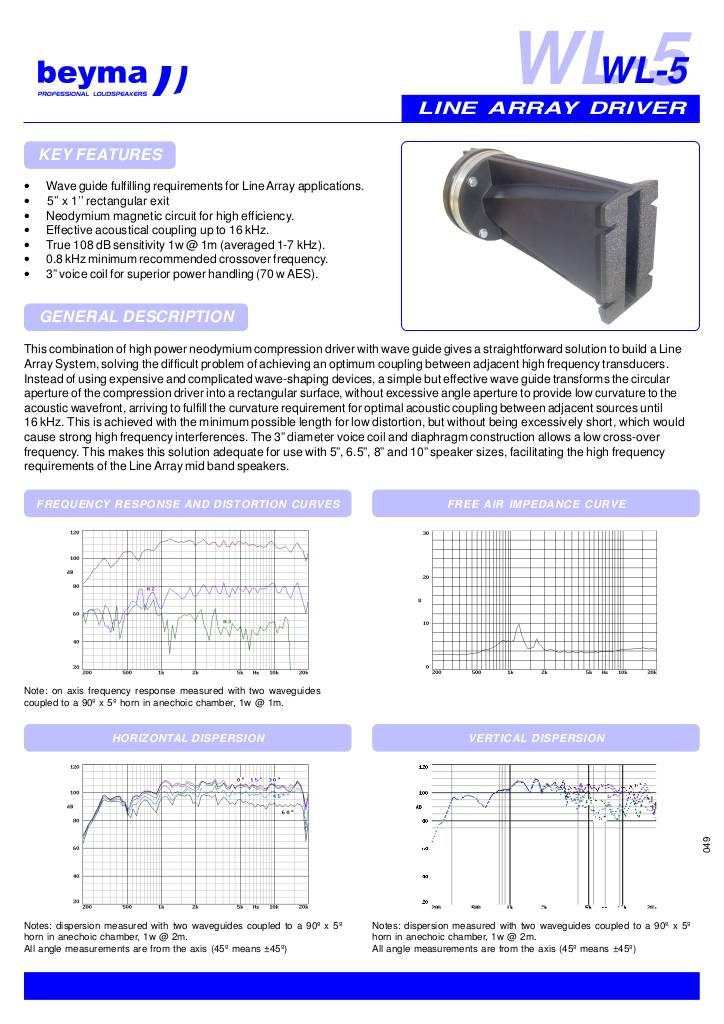

Scheda tecnica

n-20180518122135-wl5.pdf
Discontinued
