WL3 line array driver

Beyma

Discontinued

Your price:
€ 503,00
Price per pair (VAT included)
Type
Super Tweeter
Speaker Size
Other sizes
MAX Power
80 Watt
RMS Power
40 Watt
Frequency Response
700 - 20.000 Hertz
Sensitivity
105 dB
Impedance
8 Ohm
Weight
2,2 Kg
Installation Depth
142 mm
Voice Coil Diameter
44 mm

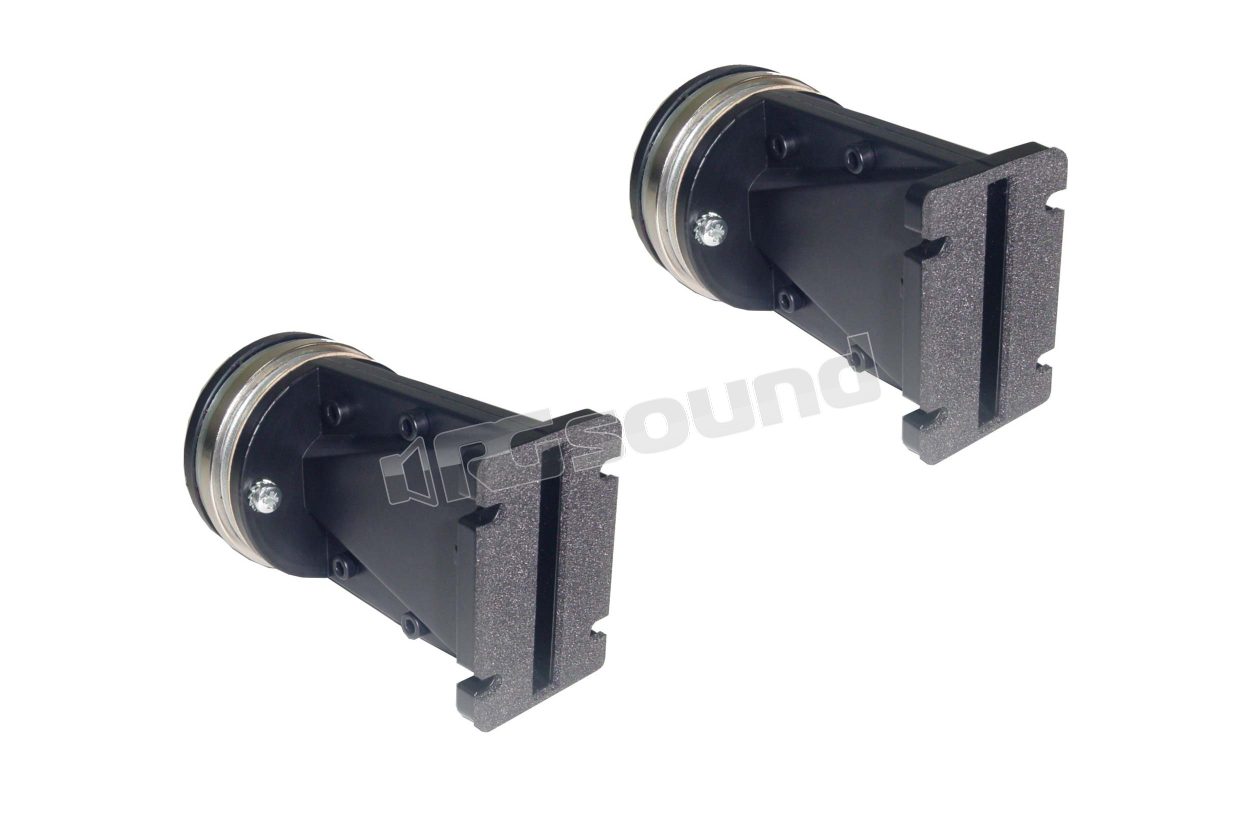

Beyma WL3 pair of line array drivers with 3'' x 0.4'' rectangular output at high sensitivity 105 dB

Neodymium magnetic circuit for high efficiency, effective acoustic coupling up to 18 kHz. Extended frequency range: 0.7 - 20 kHz. 1.75" voice coil for excellent power handling.

This combination of high-power neodymium compression drivers with wave guide offers a simple solution for building a line Array System, which solves the difficult problem of achieving optimal coupling between adjacent high-frequency transducers.

Instead of using expensive and complicated wave shaping devices, a simple but effective wave guide transforms the circular aperture of the compression driver into a rectangular surface, without excessive opening of the angle to provide low curvature to the acoustic wave front, managing to meet the curvature requirements for optimal acoustic coupling between adjacent sources up to 18 kHz. This is achieved with the minimum possible length for low distortion, but without being excessively short, which would cause strong high-frequency interference. This wave guide can be combined with speakers of different diameters but special combinations are with 6" and 5" speakers.

Beyma WL3 technical specifications

Throat diameter 20.5 mm 0.8 in

Flange height 76.2 mm 3 in

Nominal impedance 8 Ohm

Minimum impedance 5.5 ohm @ 4.5 kHz

Re 5.6 ohm

Power capacity 40 W AES above 1.5 kHz

Program power 80 W above 1.5 kHz

Sensitivity 105 dB 1 W @ 1 m coupled to horn

Frequency range 700-20000 Hz

Recom. crossover frequency 1.5 kHz or higher (12dB/oct min slope)

Voice coil diameter 44.3 mm 1.75 in

Flux density 1.8 T

BL factor 8 N/A

Diaphragm material Polyester

External diameter 80 mm 3.15 in

Depth 142 mm 5.60 in

Four 6 mm diameter holes

Net weight 1 kg 2.2 lb

Total weight (2 units) 2.4 kg 5.28 lb.

Magnet Neodymium

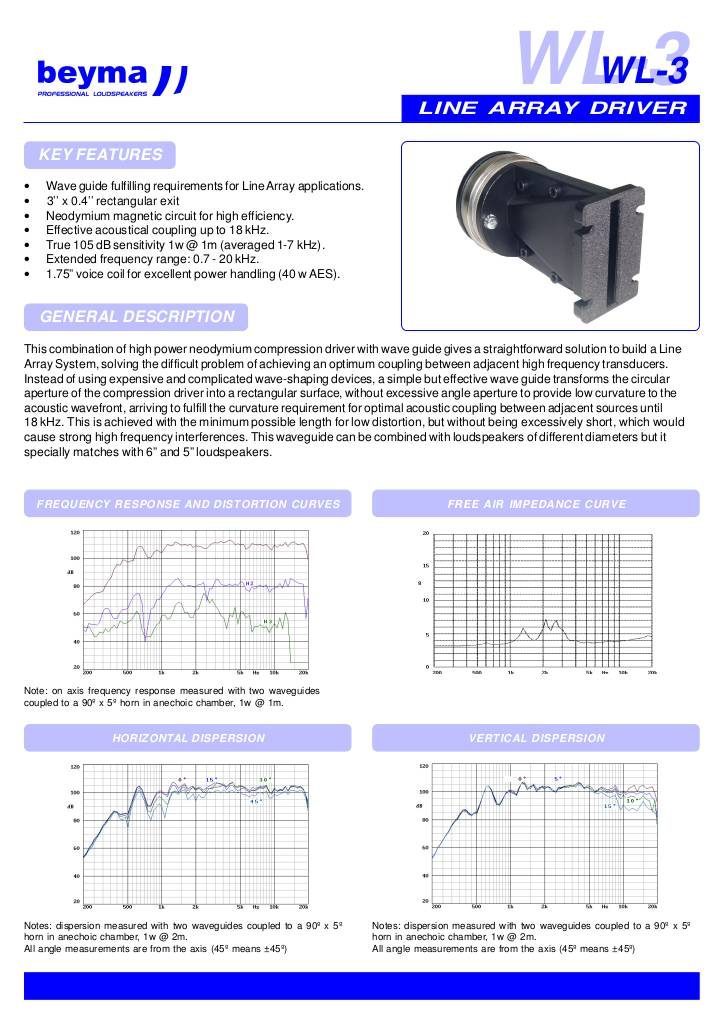

Scheda tecnica

n-20180518114920-wl3.pdf
