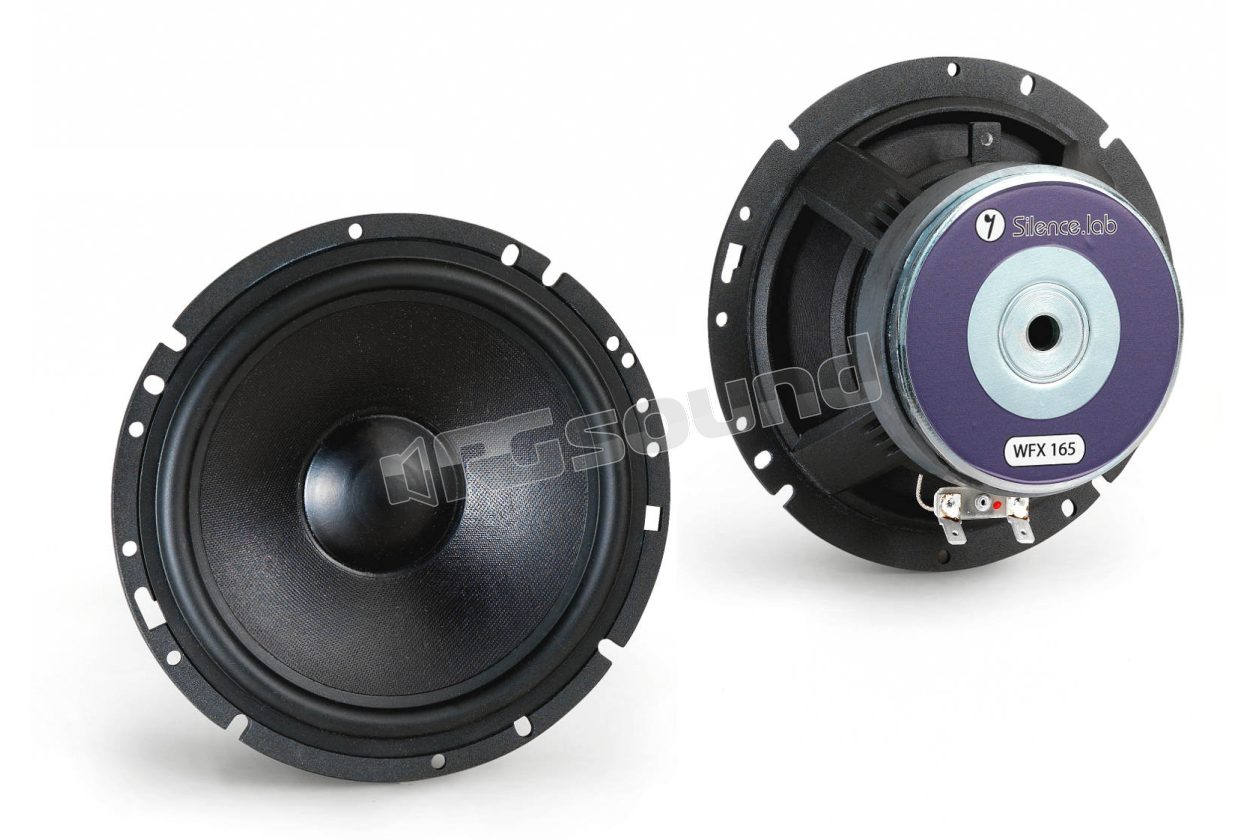

WFX 165

Silence Lab

Discontinued

Your price:
€ 317,70
Price per pair (VAT included)
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
180 Watt
RMS Power
90 Watt
Frequency Response
50 - 4500 Hertz
Sensitivity
91 dB
Impedance
3,5 Ohm
Weight
1,9 Kg
Installation Depth
66 mm
Woofer Material
Cellulosa trattata

WFX 165 165mm mid-woofer for hi-end systems, naturalness and no coloration are the main qualities of this component.


This midwoofer has been designed to achieve reference performance, always keeping in mind the size constraints, to allow an installation that optimizes the response in the environment.
For this reason the magnetic circuit uses the combined action of ferrite and neodymium, adopted the copper shorting ring and a balanced moving assembly to minimize distortion.

WFX 165 Parameters

Re ohm 3.5
Fs Hz 58
Qm 1.70
Qe 0.66
Qt 0.47
Vas L 11
Xmax +/- mm 6
D mm 132
Mms g 16.06
Cms mm/N 0.46
B*l Wb/m 5.61
Le mH 0.55
Sens dB 91
Pn Watt 90
Bob mm 38
Kg 1.9

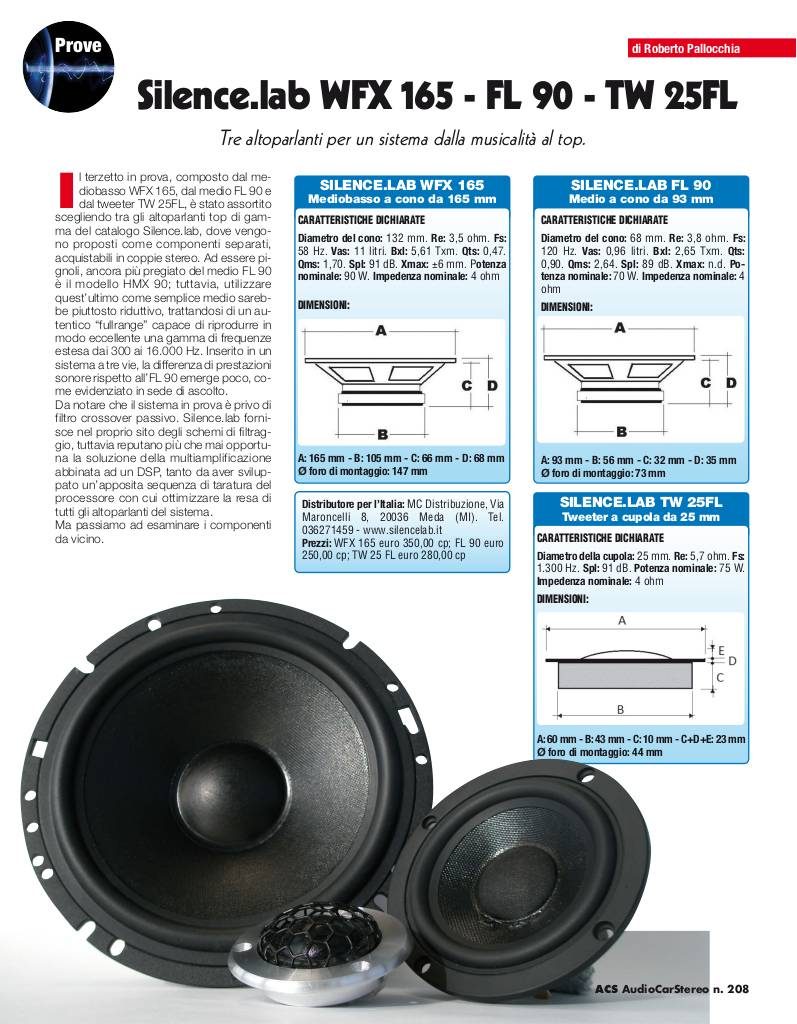

test ACS numero 208

20120118005947-acs208-wfx.pdf
