WFN 130

Silence Lab

Discontinued

Your price:
€ 217,80
Price per pair (VAT included)
Type
Midrange
Speaker Size
100 mm
MAX Power
140 Watt
RMS Power
70 Watt
Frequency Response
100 - 4000 Hertz
Sensitivity
89 dB
Impedance
3 Ohm
Weight
0,44 Kg

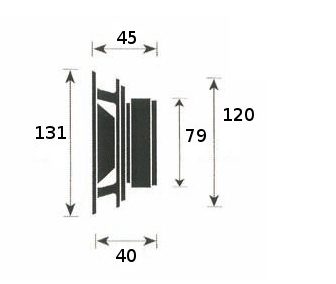

Installation Depth
40 mm

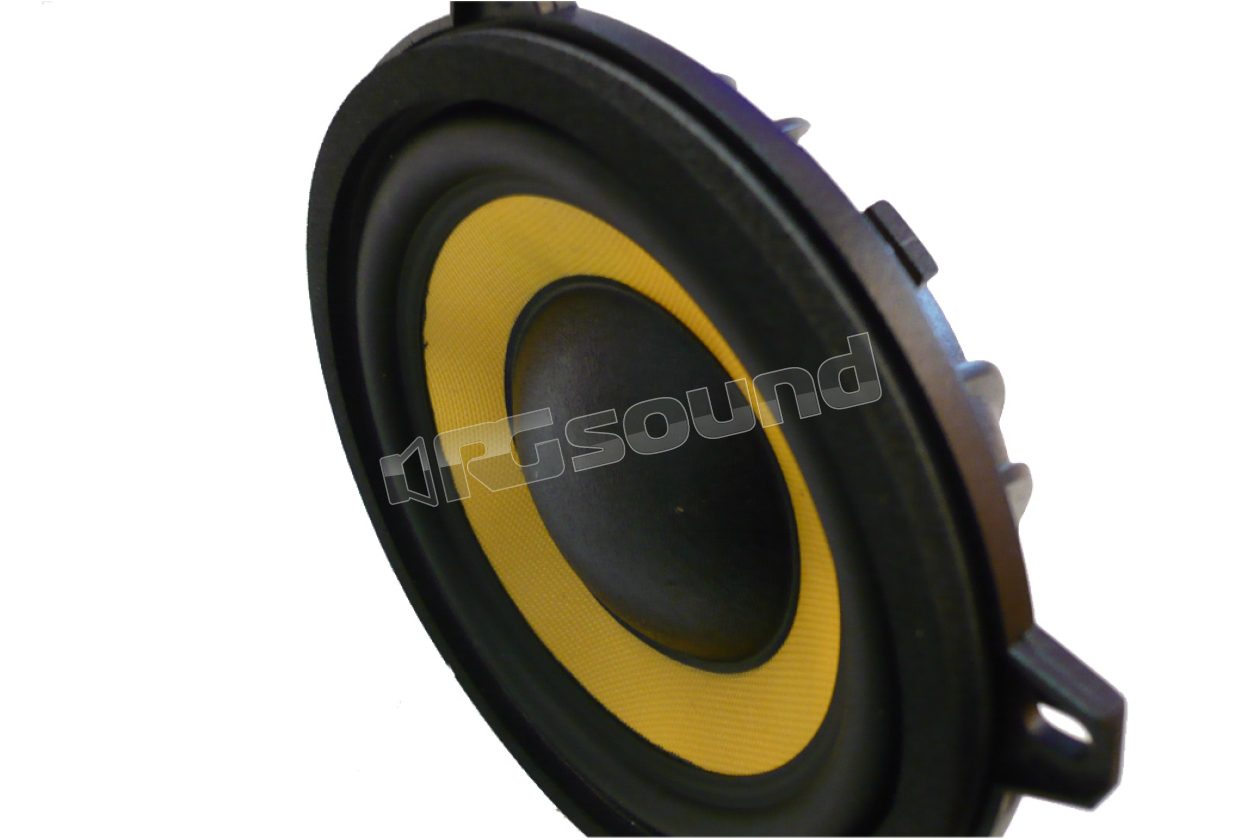

The WFN 130 is an ultra flat midrange.
The construction characteristics, common to the entire WFN line, characterize it for size and installability, the 105mm cone allows it excellent low frequency response allowing it, in extreme solution, a frequency response from 100Hz to 4000Hz.

Parameters

Re ohm 3
Fs Hz 71
Qm 3.30
Qe 1.32
Qt 0.94
Vas L 6.00
Xmax +/- mm 2
D mm 105
Mms g 8.97
Cms mm/N 0.57
B*l Wb/m 3.00
Le mH 0.35
Sens dB 89
Pn Watt 70
Bob mm 38
Kg 0.44

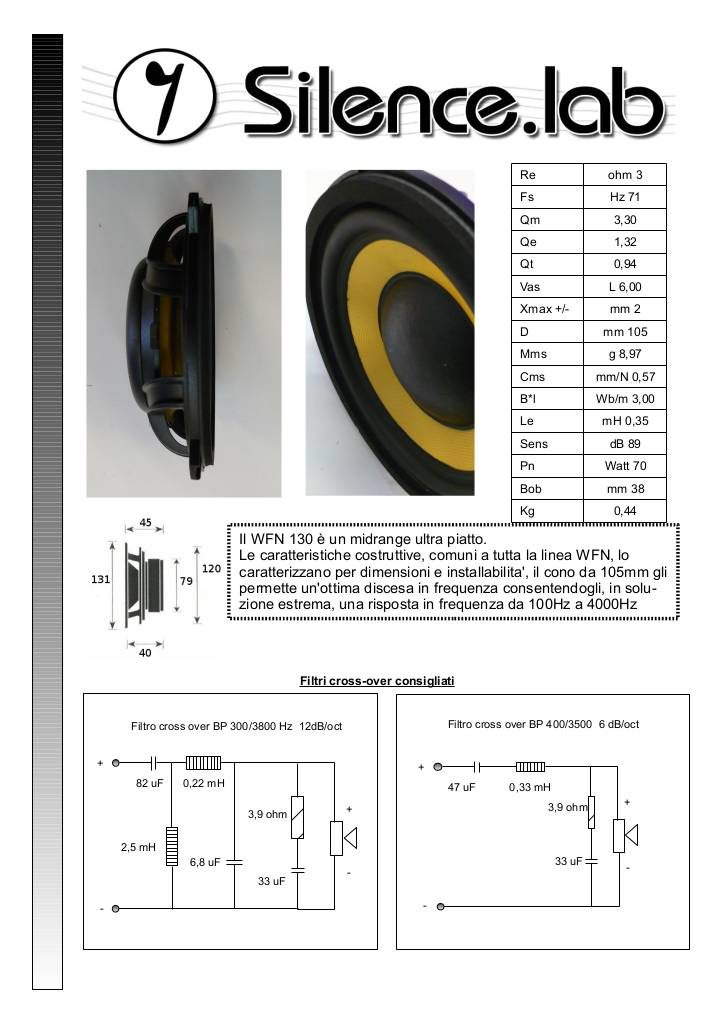

WFN130 scheda

20120118172700-data-wfn130.pdf
Discontinued
