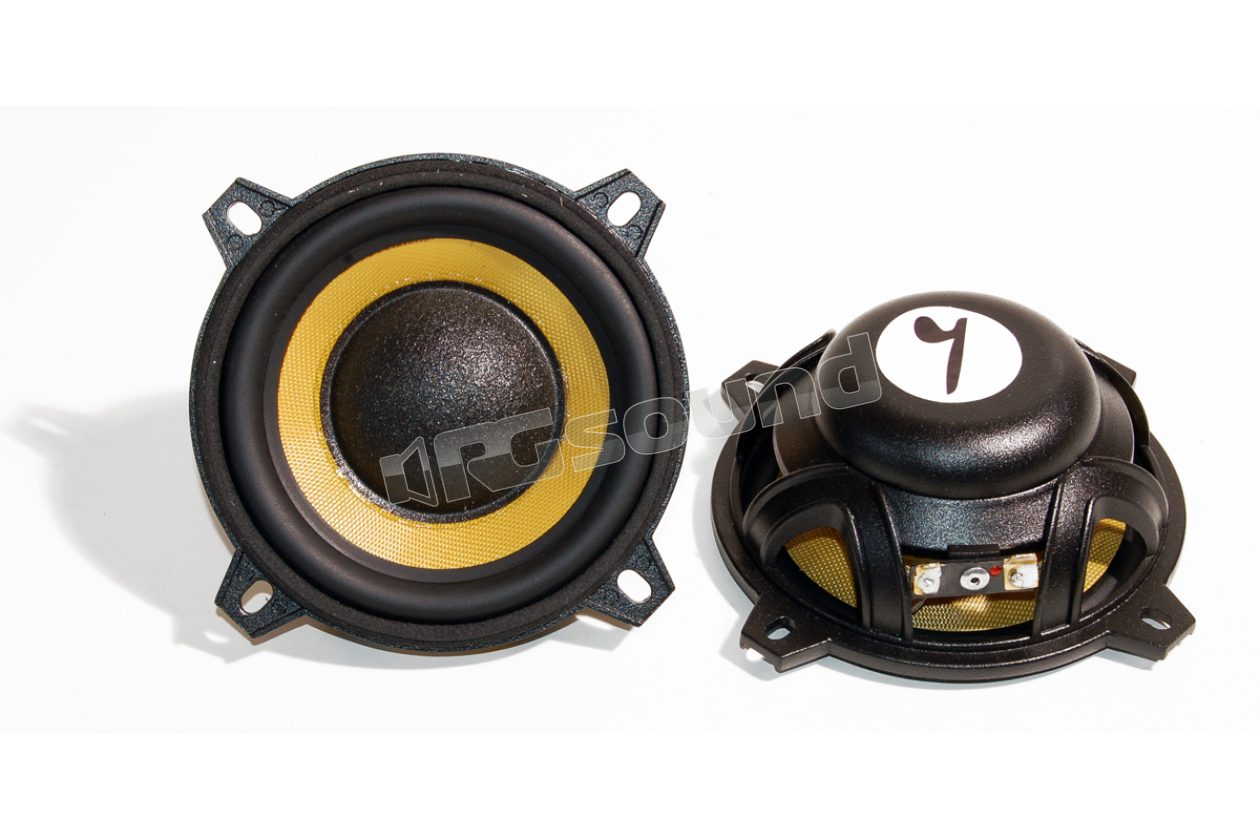

WFN 100 ultra-slim midrange with fiberglass cone

Silence Lab

Discontinued

Your price:
€ 159,00
Price per pair (VAT included)
Type
Midrange
Speaker Size
80 mm
MAX Power
140 Watt
RMS Power
70 Watt
Sensitivity
88 dB
Impedance
3 Ohm
Weight
0,32 Kg

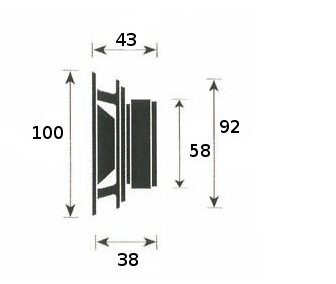

Installation Depth
38 mm

The WFN 100 is an ultra-flat midrange with fiberglass cone, rubber suspension, 38 mm voice coil and neodymium magnet, these are the constructive characteristics common to the entire WFN line.

The reduced dimensions allow optimal positioning which combined with the acoustic qualities of speed and detail, deliver a clear, well-articulated and precise midrange.

Specifications

Re ohm 3
Fs Hz 86
Qm 3.36
Qe 1.29
Qt 0.93
Vas L 1.82
Xmax +/- mm 2
D mm 80
Mms g 6.58
Cms mm/N 0.52
B*l Wb/m 2.84
Le mH 0.25
Sens dB 88
Pn Watt 70
Bob mm 38
Kg 0.32

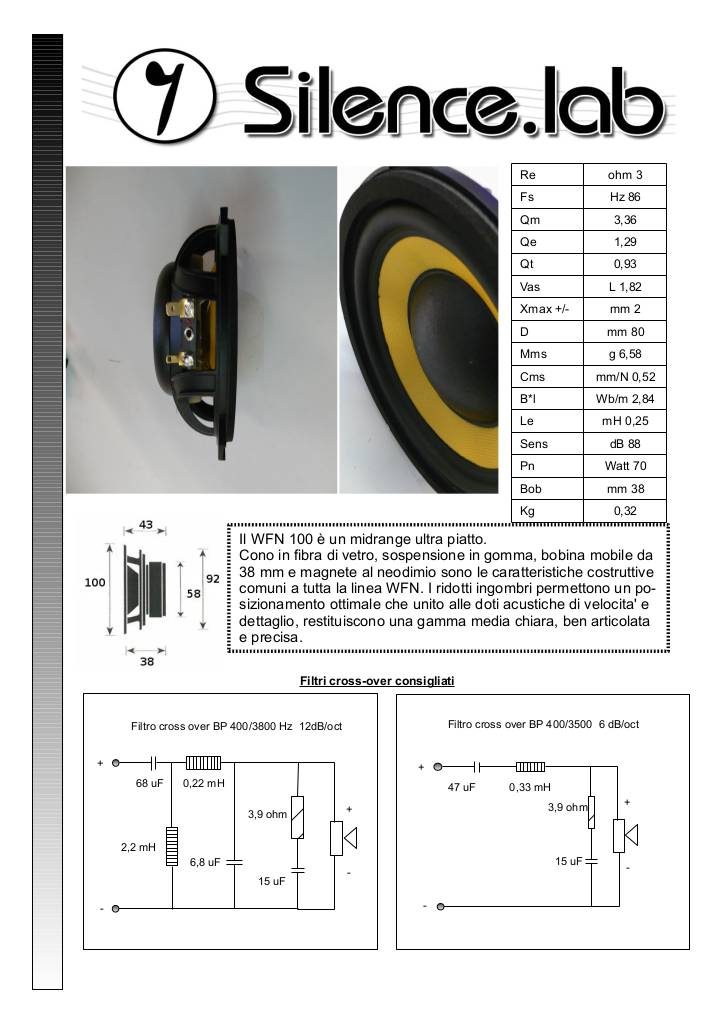

WFN100 scheda

20120118173258-data-wfn100.pdf
Discontinued
