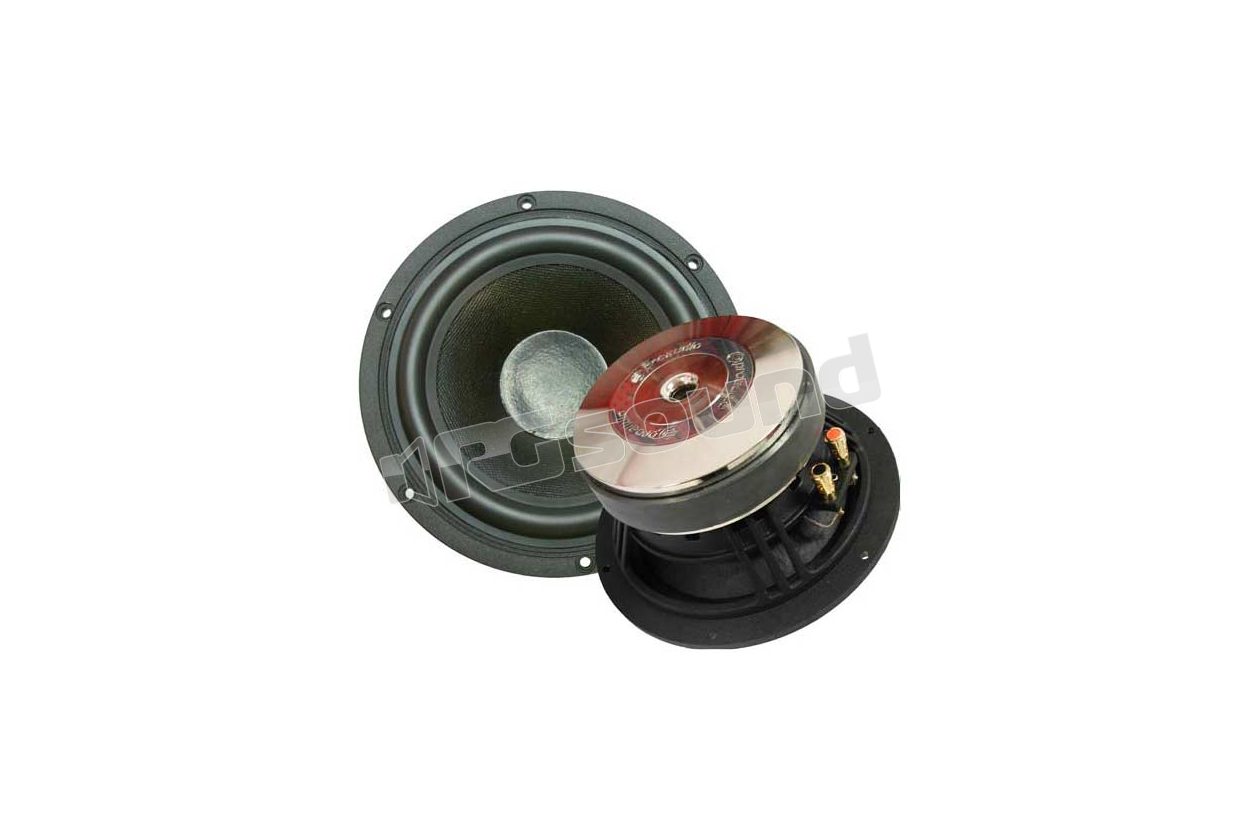

WFC 170 - WFC170

Proaudio

Discontinued

Your price:
€ 305,60
Price per pair (VAT included)
Type
Woofer and midwoofer
Speaker Size
170 mm
MAX Power
260 Watt
RMS Power
130 Watt
Sensitivity
94 dB
Impedance
4 Ohm
Installation Depth
80 mm
Woofer Material
Cellulosa

Proaudio WFC170 midwoofer with balanced and natural musicality, the tonal character remains coherent throughout the entire range, never excessive, despite the extraordinary airiness.
Fast and responsive with both "modern" music programs and in reproducing the myriad of details in jazz and classical music.
The cellulose cone, extremely lightweight, responds instantly even to the slightest stimulation, revealing subtle details as if it were a pure midrange. The low range, in fact, has nothing to envy to that of larger diameters: full, round and incisive especially if installed in defined volumes.

The WFC 170 is perfect for two-way Sound-Quality installations, especially if paired with the TWC26 or TWC32 Tweeter.
Thanks to the exponential geometry of the membrane, linearity of response is ensured to the extremes of the polar field, minimizing the need for filter corrections.

WFC170 Specifications

Basket: Calibrated aluminum die-casting finished by turning.
Magnet: Ferrite.
Voice coil: Copper, 38mm diameter, aluminum alloy support.
Centerpiece: Nomex® electronically pretreated and formed at high pressure.
Suspension: Butyl rubber.
Cone: Damped and treated cellulose.
Power handling: 130Watt RMS | 260Watt Max.
Impedance: 4 ohm
Efficiency: 94dB

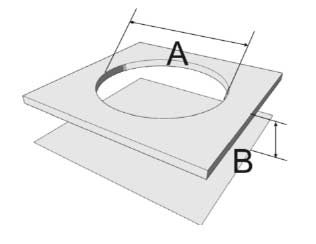

Dimensions: A: 147mm, B: 80mm

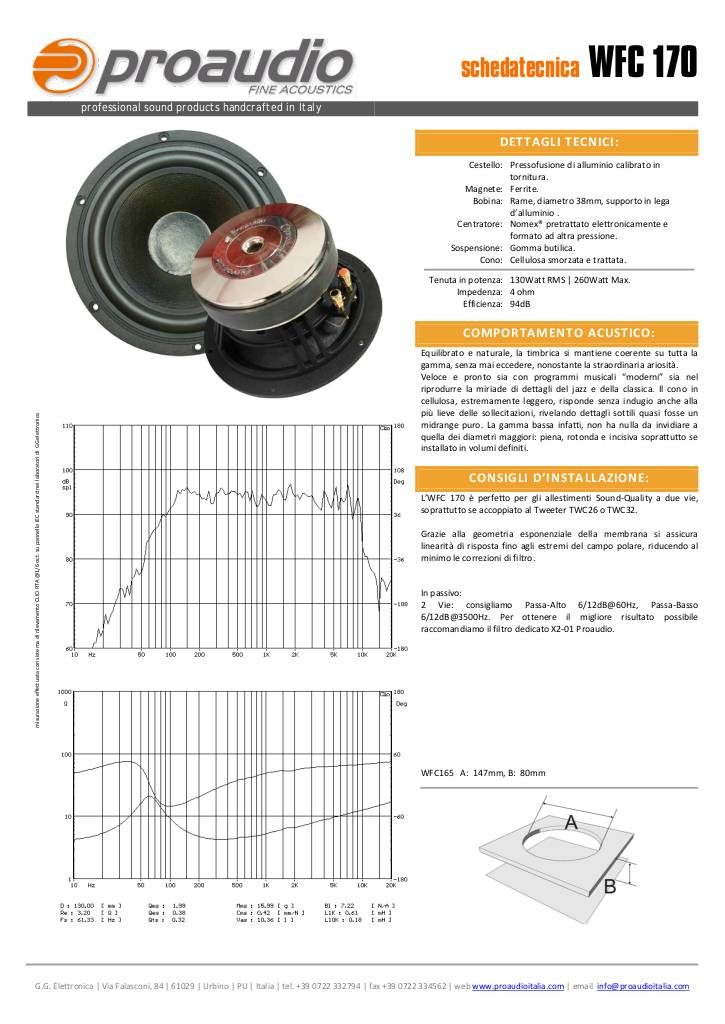

Scheda Tecnica - specifiche

20090816164728-wfc170.pdf
Discontinued
