WF165

Proaudio

Discontinued

Your price:
€ 145,20
Price per pair (VAT included)

165mm Woofer - Efficiency: 94dB

WF 165 Technical Features:

Basket: Pressure die-cast aluminum calibrated in turning.
Magnet: Ferrite.
Voice coil former: Aluminum turned from solid.
Voice coil: Copper, 32mm diameter, aluminum alloy support.
Centeringponent: Electronically pretreated acrylic formed at high pressure.
Suspension: Butyl rubber.
Cone: Micro-woven fiberglass, treated.
Power handling: 100Watt RMS | 200Watt Max.
Impedance: 4 ohm
Efficiency: 94dB

Acoustic Features:

Balanced and natural, the tonal character remains coherent throughout the range, never exceeding, despite the extraordinary airiness. Fast and responsive with both "modern" musical programs and in reproducing the myriad of details of jazz and classical music. The microfiber cone, extremely light, responds without hesitation even to the slightest stimulation, revealing subtle details as if it were a pure midrange. The low range indeed has nothing to envy compared to that of larger diameters: full, round and incisive, especially if installed in defined volumes.

Installation Tips:


The MWN 165 is perfect for two-way Sound-Quality kits, paired with the TW26 tweeter or the TW32. Thanks to the exponential geometry of the membrane and the phase corrector, it does not suffer in off-axis installations, on the contrary, it ensures linear response throughout the extremes of the polar field, minimizing filter corrections. It has characteristics that guarantee exemplary performance both in the door and in "unusual" positions such as pillars or dashboard.

Passive: we recommend High-Pass 6dB@70Hz Low-Pass 6/12dB@ 5000Hz. To obtain the best possible result we recommend the dedicated X2-01 Proaudio filter.

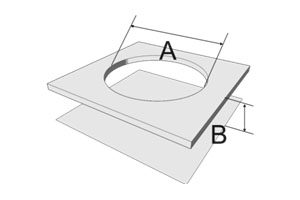

Installation dimensions: WF165 A: 165mm, B: 75mm

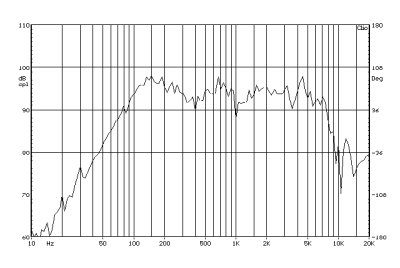

Response Graph


Impedance Graph

scheda tecnica - specifiche - grafico

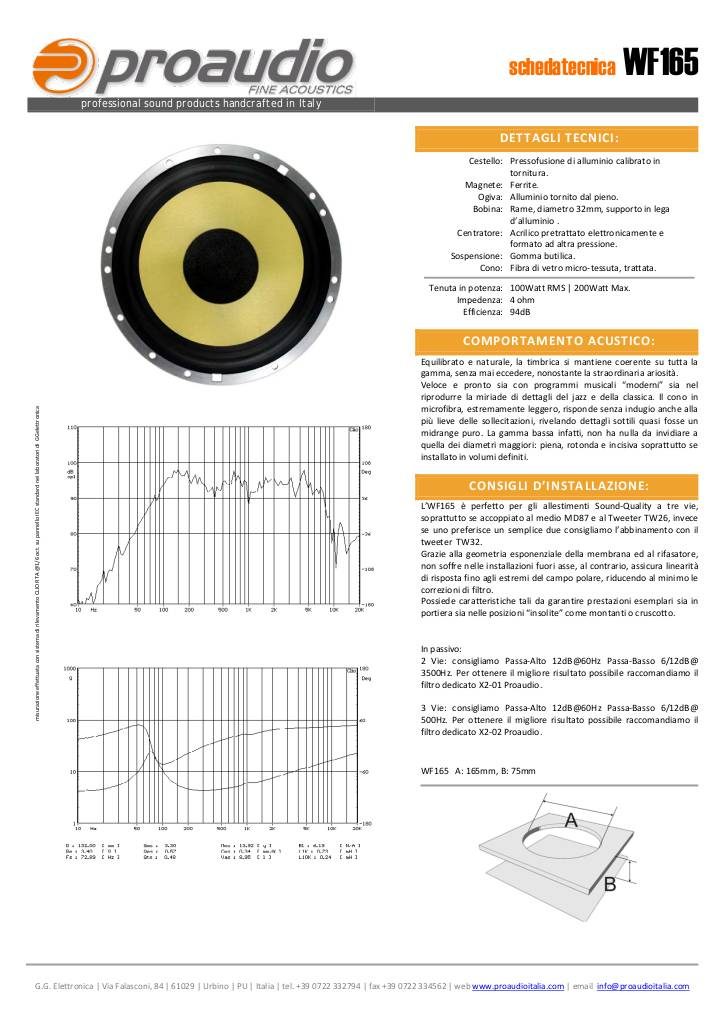

20080912115228-wf165.pdf
