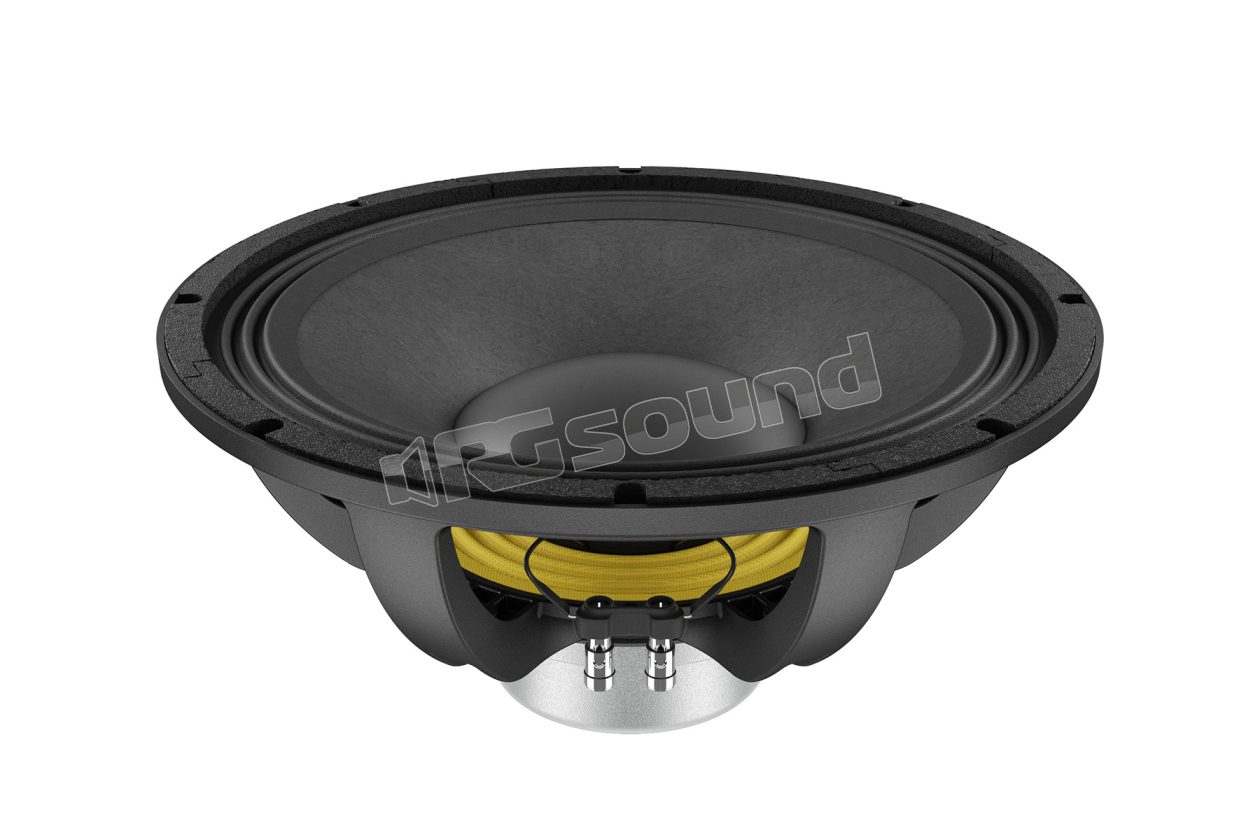

WAN154.02 15"/380mm Woofer

LaVoce

Discontinued

Your price:
€ 235,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
1400 Watt
RMS Power
700 Watt
Frequency Response
40 - 3000 Hertz
Sensitivity
99 dB
Impedance
8 Ohm
Weight
6,5 Kg
Voice Coil Diameter
100 mm

LaVoce WAN154.02 15"/380mm Woofer


LaVoce code 70R10157

WAN154.02 Features

  • 4 inch CCAW voice coil
  • Sensitivity 99 db/spl
  • Program power handling of 1400 watt
  • FEM optimized motor and suspension
  • Optimized cooling system
  • Resonance-free and resistant basket design
  • Triple roll surround

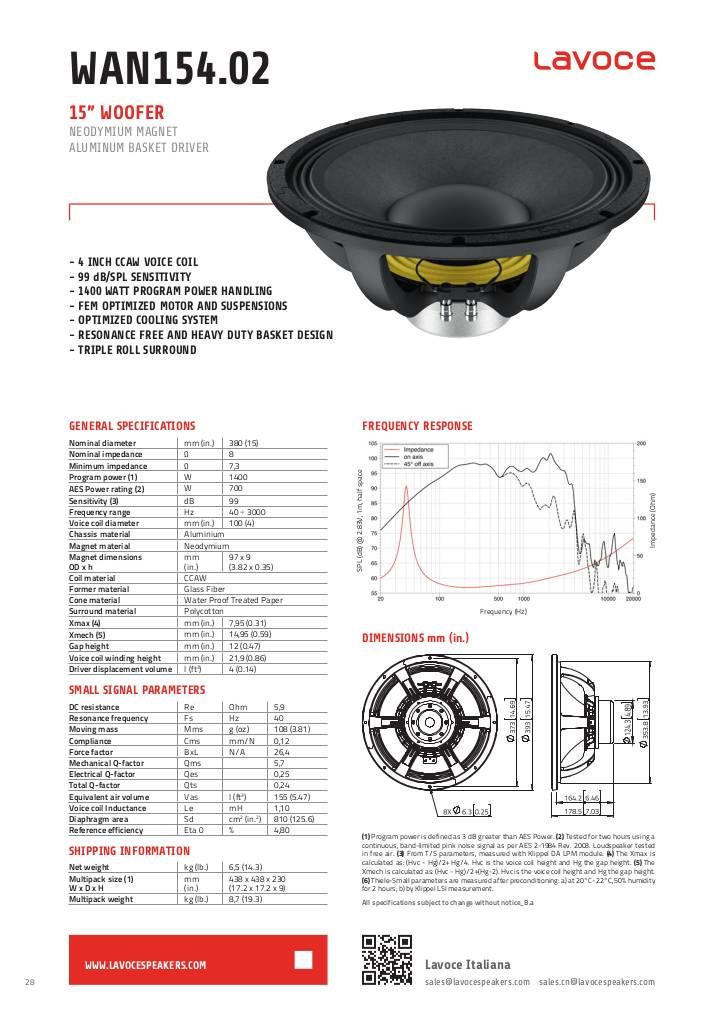

scheda tecnica

1549117198-wan15402-1.pdf

LaVoce WAN154.02 Technical Specifications

  • Nominal diameter mm (in) 380 (15)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 7.3
  • Program power W 1400
  • AES power W 700
  • Sensitivity dB 99
  • Frequency range Hz 40 ÷ 3000
  • Voice coil diameter mm (in) 100 (4)
  • Frame material Aluminum
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 97 x 9 (3.82 x 0.35)
  • Coil material CCAW
  • Structure material Fiberglass
  • Cone material Water-resistant treated paper
  • Surround material Polycotton
  • Xmax mm (in) 7.95 (0.31)
  • Xmech mm (in) 14.95 (0.59)
  • Gap height mm (in) 12 (0.47)
  • Voice coil winding height mm (in) 21.9 (0.86)
  • Driver displacement volume l (ft³) 4 (0.14)
  • DC resistance Ohm 5.9
  • Resonance frequency Hz 40
  • Moving mass g (oz) 108 (3.81)
  • Compliance mm/N 0.12
  • Force factor N/A 26.4
  • Mechanical Q factor 5.7
  • Electrical Q factor 0.25
  • Total Q factor 0.24
  • Equivalent air volume l (ft3) 155 (5.47)
  • Voice coil inductance mH 1.10
  • Diaphragm area cm2 (in.2) 810 (125.6)
  • Reference efficiency 4.8
  • Net weight kg (lb) 6.5 (14.3)
  • Multipack dimensions L x W x H mm x mm x mm (in x in x in) 438 x 438 x 230 (17.2 x 17.2 x 9)
  • Multipack weight kg (lb) 8.7 (19.3)
Discontinued
