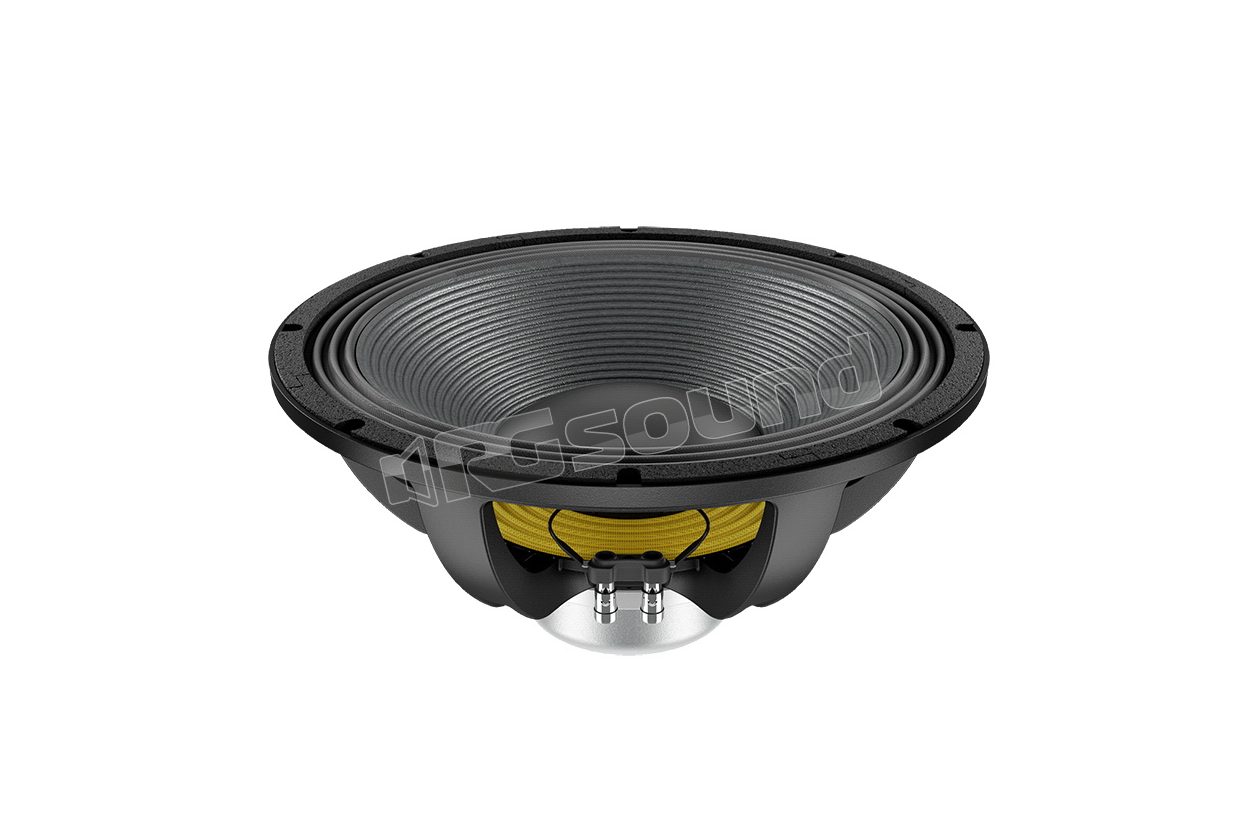

WAN154.01 15"/380mm Subwoofer

LaVoce
Your price:
€ 323,40
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
380 mm
MAX Power
2000 Watt
RMS Power
1000 Watt
Frequency Response
45 - 1000 Hertz
Sensitivity
98 dB
Impedance
8 Ohm
Weight
8,2 Kg
Voice Coil Diameter
100 mm

LaVoce WAN154.01 15"/380mm Subwoofer

LaVoce code 70R10156


WAN154.01 Features

  • 4 inch copper voice coils 98 db/spl sensitivity
  • 2000 watt program power handling
  • FEM optimized motor and suspensions
  • Optimized cooling system
  • Dual silicone spider
  • Resonance-free and robust basket design
  • Aluminum demodulating ring
  • Triple roll surround

scheda tecnica

1549116991-wan15401-1.pdf

LaVoce WAN154.01 Technical Specifications

  • Nominal diameter mm (in) 380 (15)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.4
  • Program power W 2000
  • AES power W 1000
  • Sensitivity dB 98
  • Frequency range Hz 45 ÷ 1000
  • Voice coil diameter mm (in) 100 (4)
  • Basket material Aluminum
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 97 x 31 x 9 (3.8 x 1.2 x 0.35)
  • Coil material Copper
  • Structure material Fiberglass
  • Cone material Water-resistant treated paper
  • Surround material Polycotton
  • Xmax mm (in) 8.8 (0.34)
  • Xmech mm (in) 17.3 (0.68)
  • Gap height mm (in) 14 (0.55)
  • Voice coil height mm (in) 24.5 (0.96)
  • Driver displacement volume l (ft³) 4.4 (0.16)
  • DC resistance Ohm 5.1
  • Resonance frequency Hz 43
  • Moving mass g (oz) 164 (5.8)
  • Compliance mm/N 0.07
  • Force factor N/A 25.9
  • Mechanical Q factor 8.2
  • Electrical Q factor 0.36
  • Total Q factor 0.35
  • Equivalent air volume l (ft3) 84 (2.97)
  • Voice coil inductance mH 1.70
  • Diaphragm area cm2 (in.2) 830 (128.65)
  • Reference efficiency 2.5
  • Net weight kg (lb) 8.2 (18)
  • Multipack dimensions L x W x H 438 x 438 x 230 (17.2 x 17.2 x 9)
  • Multipack weight kg (lb) 10.4 (22.8)
€ 323,40 Price incl. VAT
