WAN153.01-4 38cm woofer

LaVoce
Your price:
€ 291,20
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
380 mm
MAX Power
1200 Watt
RMS Power
600 Watt
Frequency Response
40 - 2000 Hertz
Sensitivity
99 dB
Impedance
4 Ohm
Weight
6 Kg
Installation Depth
161 mm
Woofer Material
Cellulosa trattata

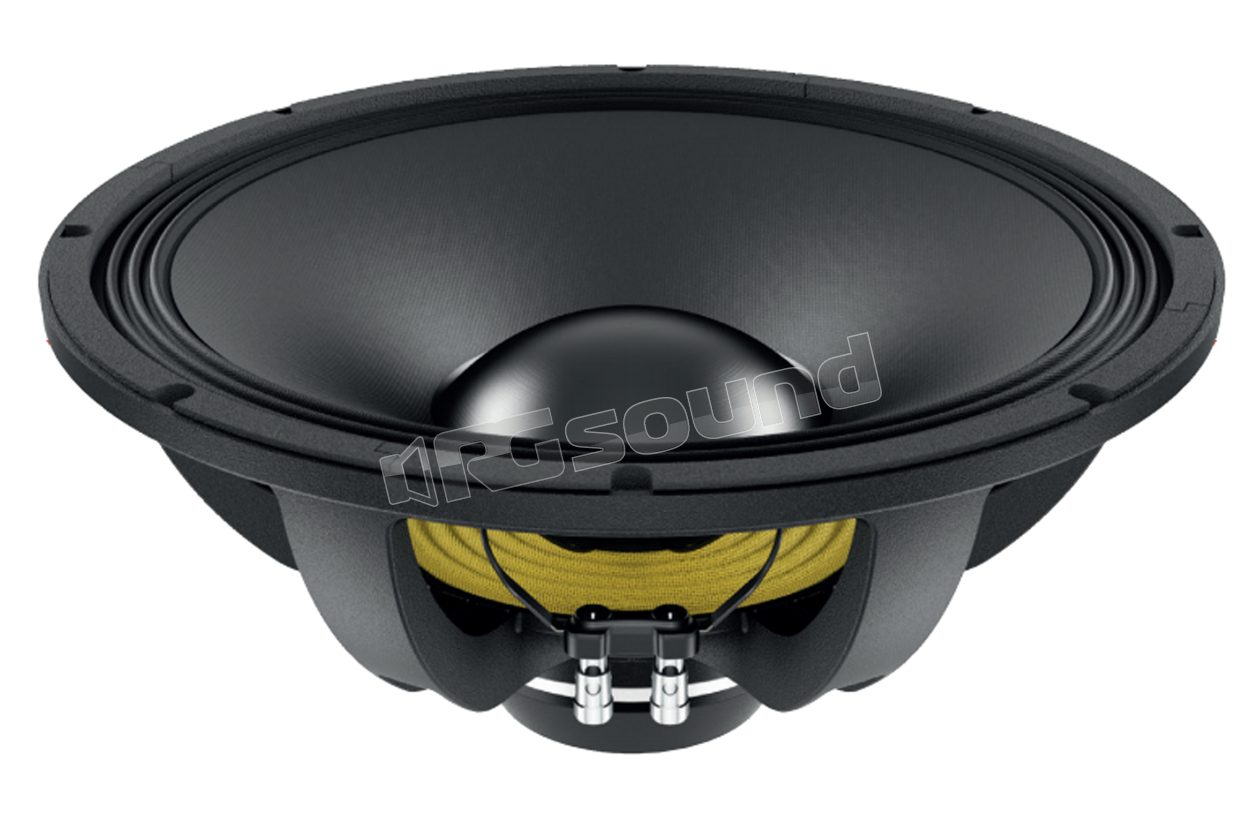

LaVoce WAN153.01-4 15" / 38cm woofer with neodymium magnet

LaVoce code VLR1015G

Main features

  • Neodymium magnet
  • Aluminum frame
  • 3 inch copper voice coil
  • 99 db/spl sensitivity
  • 1200 watts program power handling
  • Optimized motor and suspensions
  • Optimized cooling system
  • Dual spider
  • Dual aluminum demodulating ring
  • Triple surround

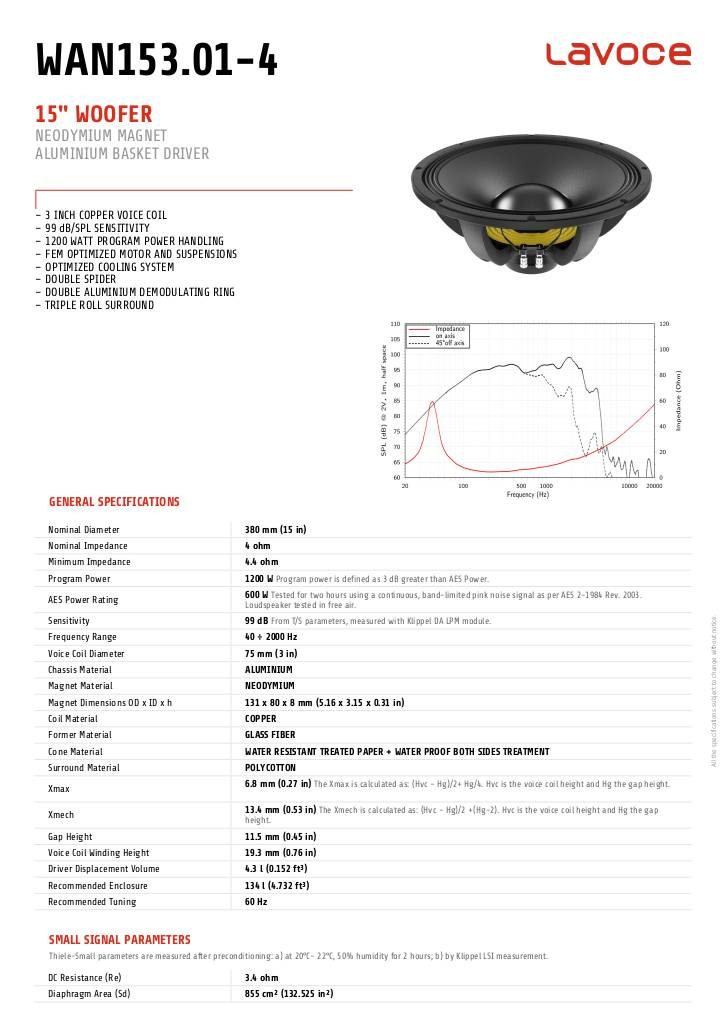

Scheda tecnica

n-20260826122151-lavoce-wan153-01-4.pdf

LaVoce WAN153.01-4 technical specifications

  • Nominal diameter 380 mm (15 in)
  • Nominal impedance 4 ohm
  • Minimum impedance 4.4 ohm
  • Program power 1200 W
  • AES nominal power 600 W
  • Sensitivity 99 dB
  • Frequency range 40 ÷ 2000 Hz
  • Voice coil diameter 75 mm (3 in)
  • Frame material ALUMINUM
  • Magnet material NEODYMIUM
  • Magnet dimensions OD x ID x h 131 x 80 x 8 mm (5.16 x 3.15 x 0.31 in)
  • Coil material COPPER
  • Former material FIBERGLASS
  • Cone material WATER-RESISTANT TREATED PAPER + WATERPROOF TREATMENT ON BOTH SIDES
  • Surround material POLYTHENE
  • Xmax 6.8 mm (0.27 in)
  • Xmech 13.4 mm (0.53 in)
  • Gap height 11.5 mm (0.45 in)
  • Voice coil winding height 19.3 mm (0.76 in)
  • Driver displacement volume 4.3 l (0.152 ft³)
  • Recommended enclosure 134 l (4.732 ft³)
  • Recommended tuning 60 Hz
  • DC resistance (Re) 3.4 ohm
  • Diaphragm area (Sd) 855 cm² (132.525 in²)
  • Resonance frequency (Fs) 43 Hz
  • Moving mass (Mms) 114.1 g (4.025 oz)
  • Compliance (Cms) 0.12 mm/N
  • Force factor (BxL) 21.36 N/D
  • Mechanical Q factor (Qms) 4.26
  • Electrical Q factor (Qes) 0.23
  • Total Q factor (Qts) 0.22
  • Equivalent air volume (Vas) 124.15 l (4.384 ft³)
  • Voice coil inductance (Le) 0.81 mH
  • Reference efficiency (Eta 0) 4.13 %
  • Bandwidth efficiency product (EBP) 187 Hz
