WAN153.00-4 30cm woofer

LaVoce
Your price:
€ 106,40
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
300 mm
MAX Power
1000 Watt
RMS Power
500 Watt
Frequency Response
45 - 3000 Hertz
Sensitivity
98,5 dB
Impedance
4 Ohm
Weight
5,8 Kg
Installation Depth
158 mm
Woofer Material
Cellulosa trattata

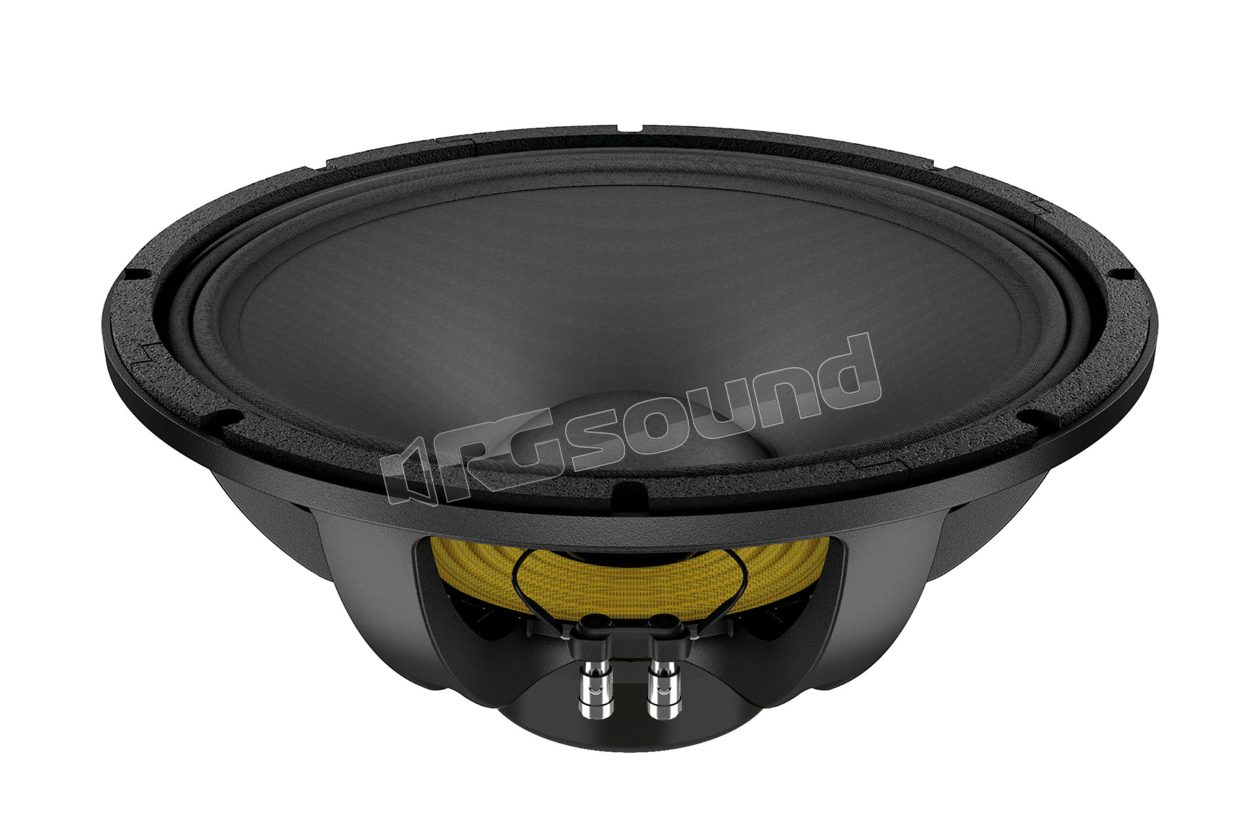

LaVoce WAN153.00-4 woofer 30cm with neodymium magnet, maximum power 1000 Watt

LaVoce code VLR1015H

Main features

  • Neodymium magnet
  • Aluminum basket
  • 3 inch CCAW voice coil
  • 98.5 db/spl sensitivity
  • 1000 watt program power handling
  • Optimized motor and suspension
  • Optimized cooling system
  • 4 ohm impedance

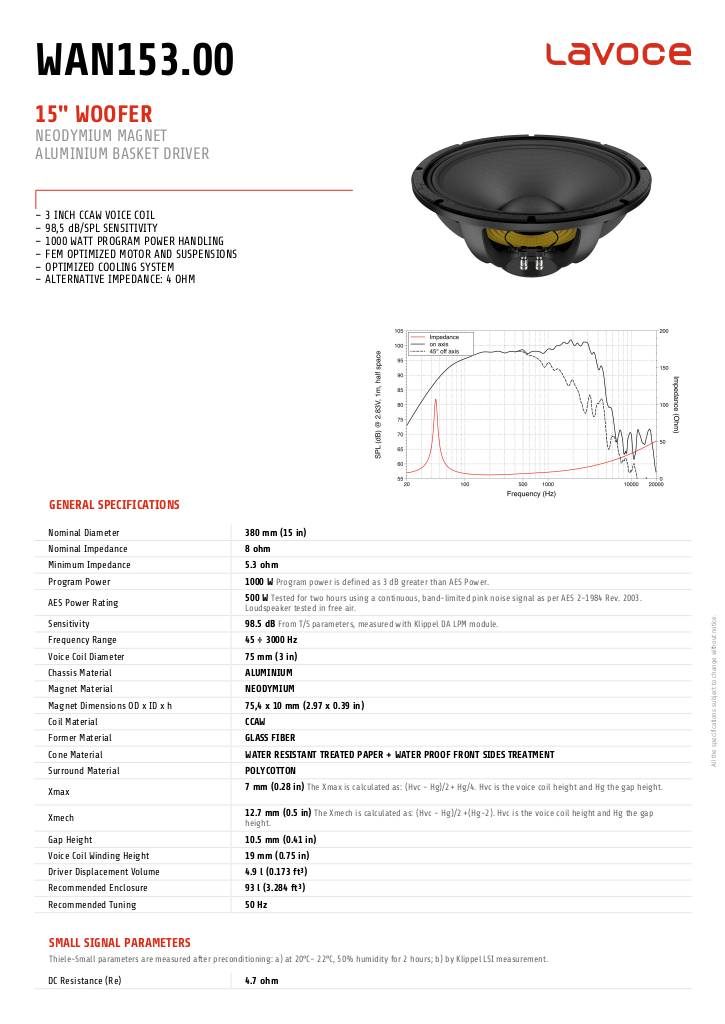

Scheda tecnica

n-20260825161116-lavoce-wan153-00.pdf

LaVoce WAN153.00-4 technical specifications

  • Nominal diameter 380 mm (15 in)
  • Nominal impedance 4 ohm
  • Minimum impedance 4.1 ohm
  • Program power 1000 W
  • Rated power AES 500 W
  • Sensitivity 97.5 dB
  • Frequency range 45 ÷ 3000 Hz
  • Voice coil diameter 75 mm (3 in)
  • Frame material ALUMINUM
  • Magnet material NEODYMIUM
  • Magnet dimensions OD x ID x h
  • 75.4 x 10 mm (2.97 x 0.39 in)
  • Coil material CCAW
  • Former material FIBERGLASS
  • Cone material TREATED WATER RESISTANT PAPER + WATERPROOF TREATMENT OF FRONT SIDES
  • Surround material POLYTHENE
  • Xmax 7 mm (0.28 in)
  • Xmech 12.7 mm (0.5 in)
  • Space height 10.5 mm (0.41 in)
  • Voice coil winding height 19 mm (0.75 in)
  • Driver displacement volume 4.9 l (0.173 ft³)
  • Recommended enclosure 93 l (3.284 ft³)
  • Recommended tuning 50 Hz
