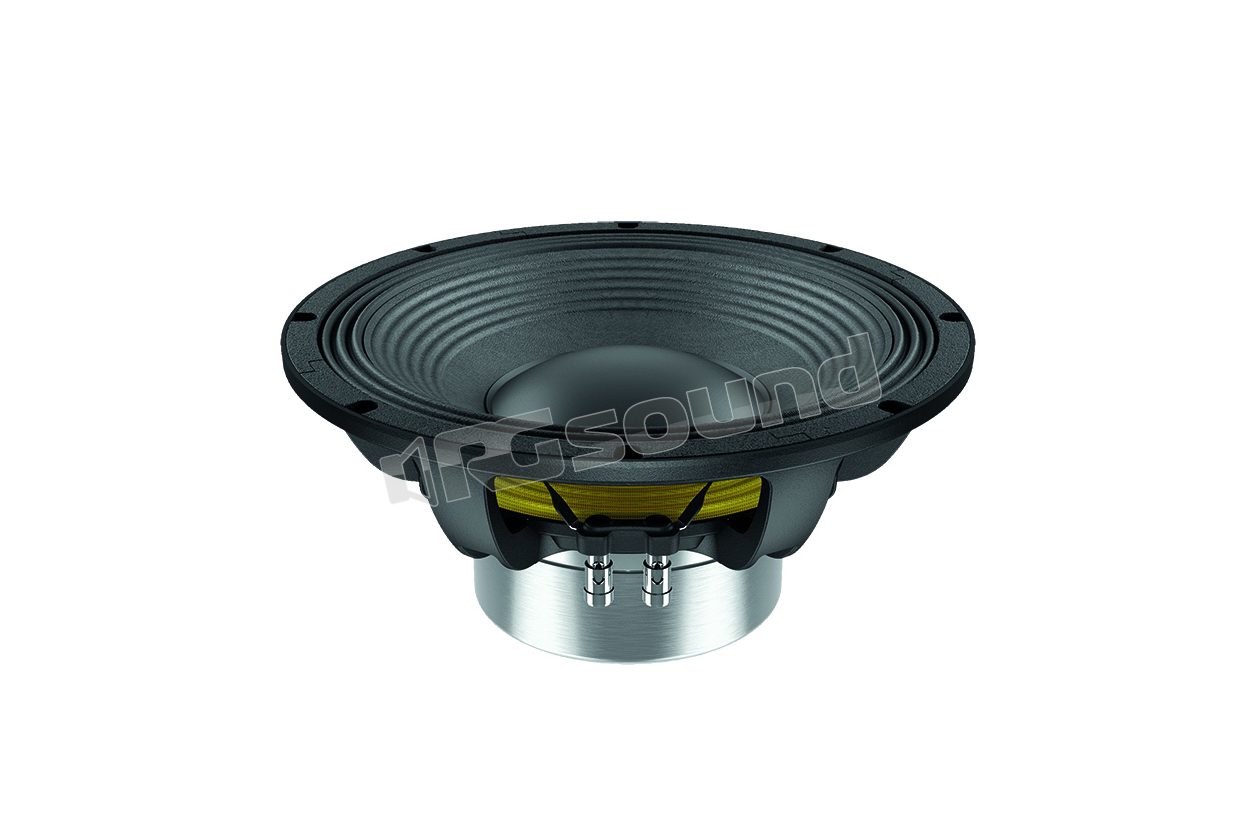

WAN124.01 12"/300mm Subwoofer

LaVoce
Your price:
€ 316,50
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
2000 Watt
RMS Power
1000 Watt
Frequency Response
40 - 2000 Hertz
Sensitivity
96 dB
Impedance
8 Ohm
Weight
7,5 Kg
Voice Coil Diameter
100 mm

LaVoce WAN124.01 12"/300mm Subwoofer

LaVoce code 70R10124

WAN124.01 Features

  • 4-inch copper voice coil
  • Sensitivity 96 db/spl
  • Program power handling of 2000 watts
  • Motor and suspensions optimized FEM
  • Optimized cooling system
  • Aluminum demodulating ring
  • Double silicon spider
  • Resonance-free and rigid basket design
  • Triple roll surround

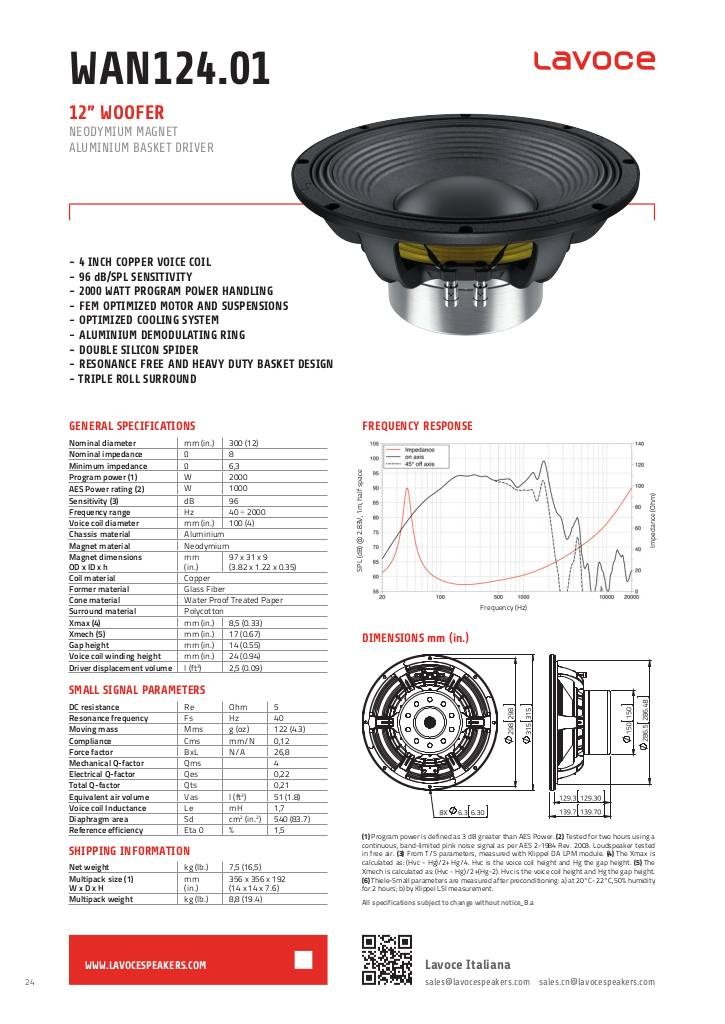

scheda tecnica

1549117103-wan12401-1.pdf

LaVoce WAN124.01 Technical Specifications

  • Nominal diameter mm (in) 300 (12)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.3
  • Program power W 2000
  • AES power W 1000
  • Sensitivity dB 96
  • Frequency range Hz 40 ÷ 2000
  • Voice coil diameter mm (in) 100 (4)
  • Frame material Aluminum
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 97 x 31 x 9 (3.82 x 1.22 x 0.35)
  • Coil material Copper
  • Structure material Fiberglass
  • Cone material Water-treated paper
  • Surround material Polycotton
  • Xmax mm (in) 8.5 (0.33)
  • Xmech mm (in) 17 (0.67)
  • Gap height mm (in) 14 (0.55)
  • Voice coil winding height mm (in) 24 (0.94)
  • Driver displacement volume l (ft³) 2.5 (0.09)
  • DC resistance Ohm 5
  • Resonance frequency Hz 40
  • Moving mass g (oz) 122 (4.3)
  • Compliance mm/N 0.12
  • Force factor N/A 26.8
  • Mechanical Q factor 4
  • Electrical Q factor 0.22
  • Total Q factor 0.21
  • Equivalent air volume l (ft3) 51 (1.8)
  • Voice coil inductance mH 1.7
  • Diaphragm area cm2 (in.2) 540 (83.7)
  • Reference efficiency 1.5
  • Net weight kg (lb) 7.5 (16.5)
  • Multipack dimensions L x W x H 356 x 356 x 192 (14 x 14 x 7.6)
  • Multipack weight kg (lb) 8.8 (19.4)
€ 316,50 Price incl. VAT
