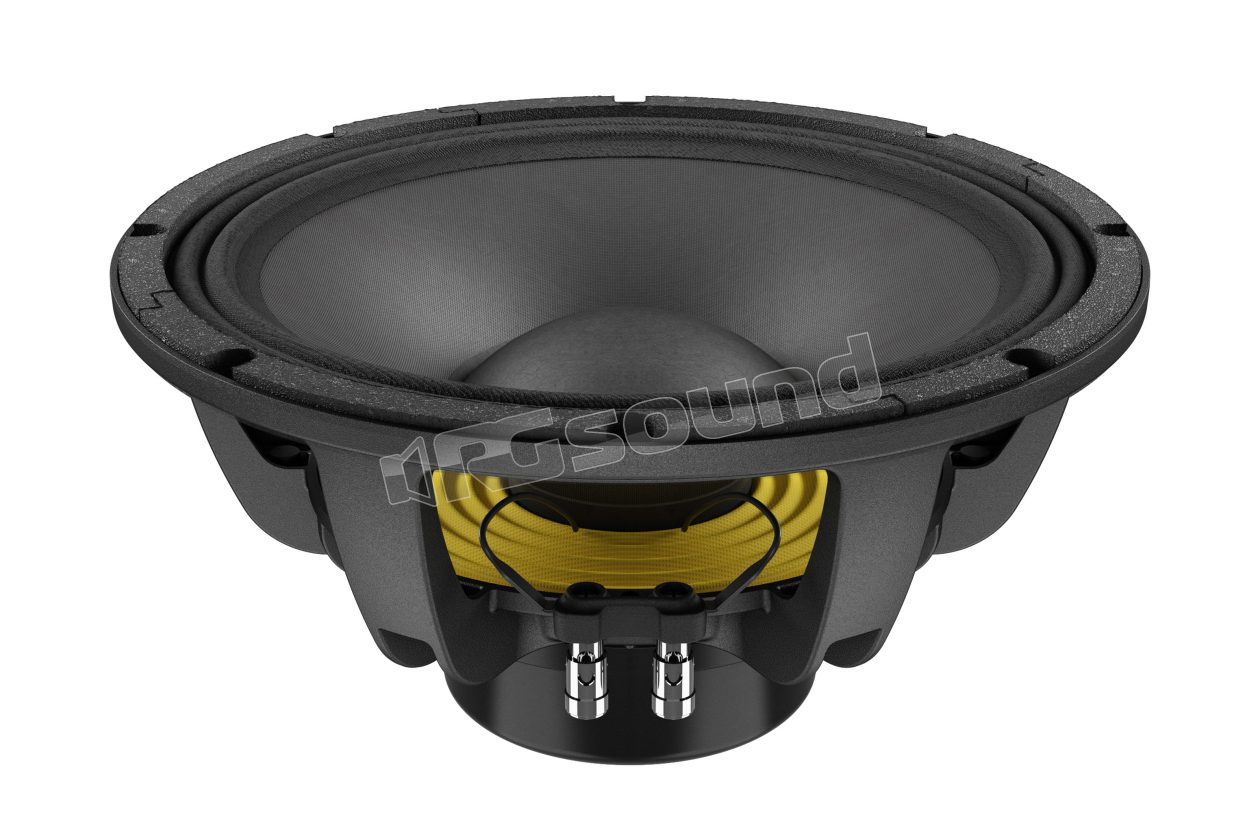

WAN123.00-4 12"/300mm woofer, 4 Ohm

LaVoce
Your price:
€ 194,40
instead of:€ 202,50
You save € 8,10
Offer valid until 29/11/2026
Price per single item (VAT included)
Black Friday: offers valid until 29 November
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
300 mm
MAX Power
1000 Watt
RMS Power
300 Watt
Frequency Response
50 - 3000 Hertz
Sensitivity
98 dB
Impedance
4 Ohm
Weight
5,2 Kg
Installation Depth
141 mm
Woofer Material
Cellulosa trattata

LaVoce WAN123.00-4 woofer 12" / 300mm with 4 Ohm impedance


LaVoce code VLR10128

WAN123.00-4 Features

  • 3 inch voice coil in CCAW
  • Sensitivity 98 db/spl
  • Power handling 1000 watt rated
  • Motor and suspensions optimized FEM
  • Optimized cooling system
  • Basket design resonance-free and resistant
  • Impedance 4 Ohm

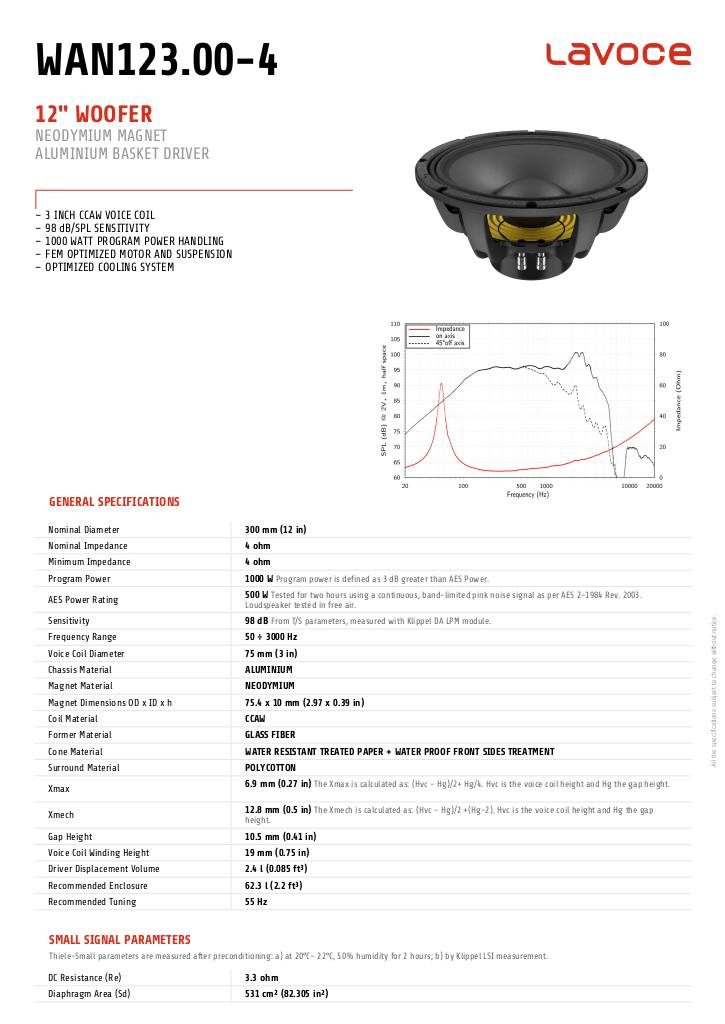

Scheda tecnica

n-20260825145344-lavoce-wan123-00-4.pdf

LaVoce WAN123.00-4 technical specifications

  • Nominal diameter 300 mm (12 in)
  • Nominal impedance 4 ohm
  • Minimum impedance 4 ohm
  • Program power 1000 W
  • Rated AES power 500 W
  • Sensitivity 98 dB
  • Frequency range 50 ÷ 3000 Hz
  • Voice coil diameter 75 mm (3 in)
  • Frame material ALUMINUM
  • Magnet material NEODYMIUM
  • Magnet size OD x ID x h 75.4 x 10 mm (2.97 x 0.39 in)
  • Coil material CCAW
  • Surround material FIBER GLASS
  • Cone material TREATED WATER-RESISTANT PAPER + WATERPROOF TREATMENT OF FRONT SIDES
  • Surround material POLYTONE
  • Xmax 6.9 mm (0.27 in)
  • Xmech 12.8 mm (0.5 in)
  • Voice gap height 10.5 mm (0.41 in)
  • Voice coil winding height 19 mm (0.75 in)
  • Driver displacement volume 2.4 l (0.085 ft³)
  • Recommended enclosure 62.3 l (2.2 ft³)
  • Recommended tuning 55 Hz
  • DC resistance (Re) 3.3 ohm
  • Diaphragm area (Sd) 531 cm² (82.305 in²)
  • Resonance frequency (Fs) 54 Hz
  • Moving mass (Mms) 60.4 g (2.131 oz)
  • Compliance (Cms) 0.144 mm/N
  • Force factor (BxL) 15.29 N/D
  • Mechanical Q factor (Qms) 5.11
  • Electrical Q factor (Qes) 0.29
  • Total Q factor (Qts) 0.27
  • Equivalent air volume (Vas) 57.46 l (2.029 ft³)
  • Voice coil inductance (Le) 0.56 mH
  • Reference efficiency (Eta 0) 3.01 %
  • Bandwidth efficiency product (EBP) 186 Hz
