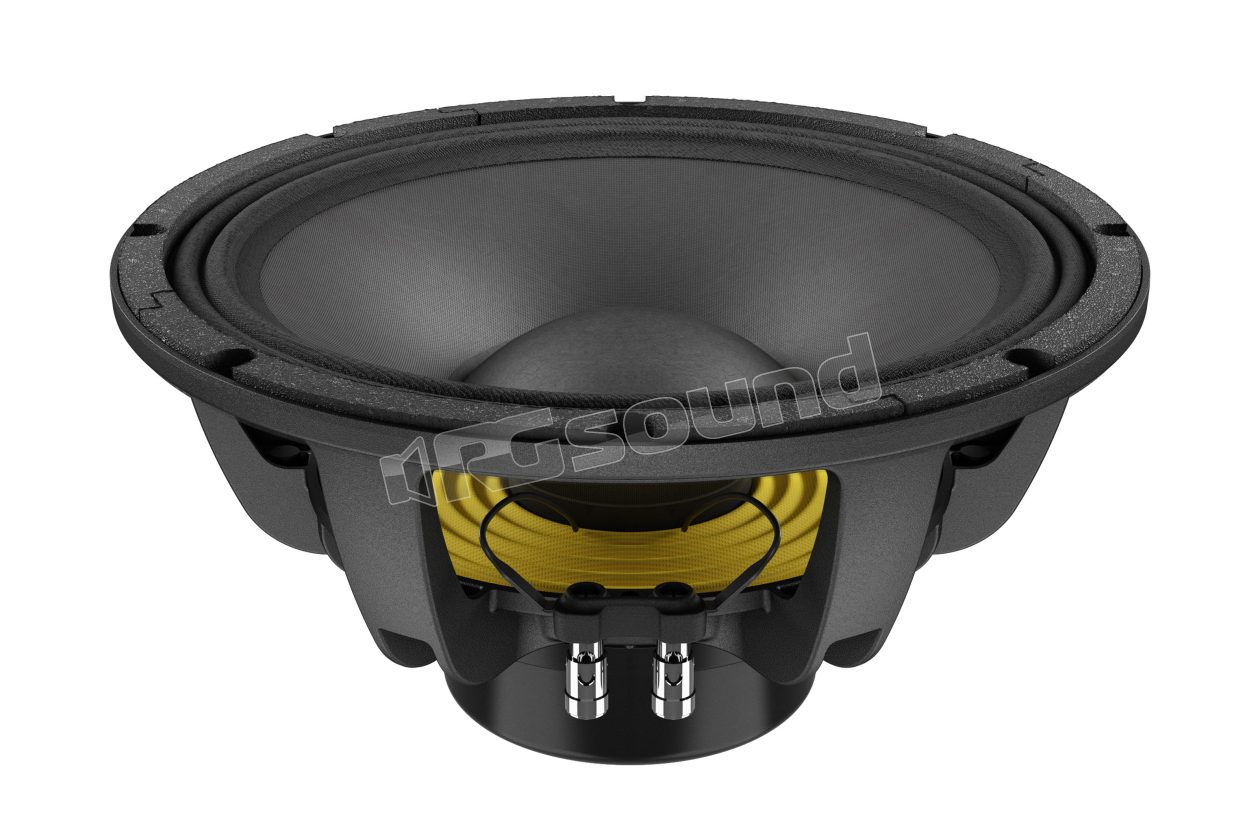

WAN123.00-16 12"/300mm woofer, 16 Ohm

LaVoce
Your price:
€ 202,50
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

LaVoce WAN123.00-16 woofer 12" / 300mm with 16 Ohm impedance


LaVoce code VLR10128

WAN123.00-16 Features

  • 3 inch voice coil in CCAW
  • Sensitivity 97 db/spl
  • Power handling of 1000 watt program
  • Motor and suspensions optimized Fem
  • Optimized cooling system
  • Basket design free from resonances and resistant
  • Impedance 16 Ohm

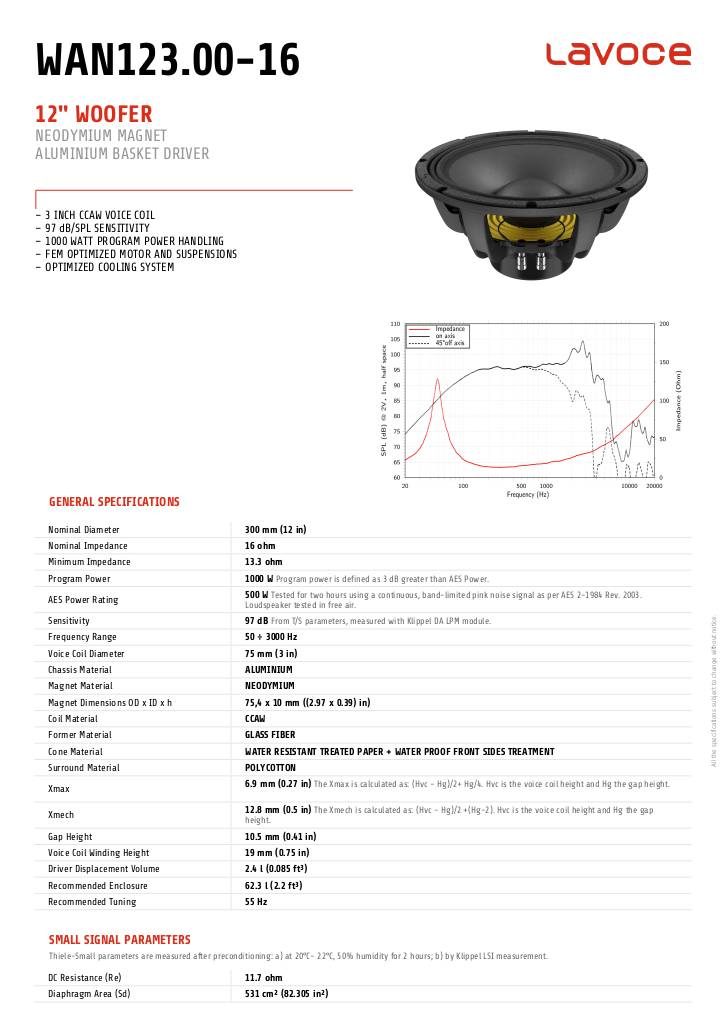

Scheda tecnica

n-20260825125333-lavoce-wan123-00-16.pdf

LaVoce WAN123.00-16 technical specifications

  • Nominal diameter 300 mm (12 in)
  • Nominal impedance 16 ohm
  • Minimum impedance 13.3 ohm
  • Program power 1000 W
  • AES nominal power 500 W
  • Sensitivity 97 dB
  • Frequency range 50 ÷ 3000 Hz
  • Voice coil diameter 75 mm (3 in)
  • Frame material ALUMINUM
  • Magnet material NEODYMIUM
  • Magnet dimensions OD x ID x h 75.4 x 10 mm ((2.97 x 0.39) in)
  • Coil material CCAW
  • Previous material FIBERGLASS
  • Cone material WATER RESISTANT TREATED PAPER + WATERPROOF TREATMENT OF FRONT SIDES
  • Surround material POLITONE
  • Xmax 6.9 mm (0.27 in)
  • Xmech 12.8 mm (0.5 in)
  • Air gap height 10.5 mm (0.41 in)
  • Voice coil winding height 19 mm (0.75 in)
  • Driver displacement volume 2.4 l (0.085 ft³)
  • Recommended enclosure 62.3 l (2.2 ft³)
  • Recommended tuning 55 Hz
  • DC resistance (Re) 11.7 ohm
  • Diaphragm area (Sd) 531 cm² (82.305 in²)
  • Resonance frequency (Fs) 49 Hz
  • Moving mass (Mms) 62.5 g (2.205 oz)
  • Compliance (Cms) 0.168 mm/N
  • Force factor (BxL) 25.02 N/D
  • Mechanical Q factor (Qms) 3.26
  • Electrical Q factor (Qes) 0.36
  • Total Q factor (Qts) 0.32
  • Equivalent air volume (Vas) 67.04 l (2.367 ft³)
  • Voice coil inductance (Le) 1.27 mH
  • Reference efficiency (Eta 0) 2.12 %
  • Bandwidth efficiency product (EBP) 136 Hz
