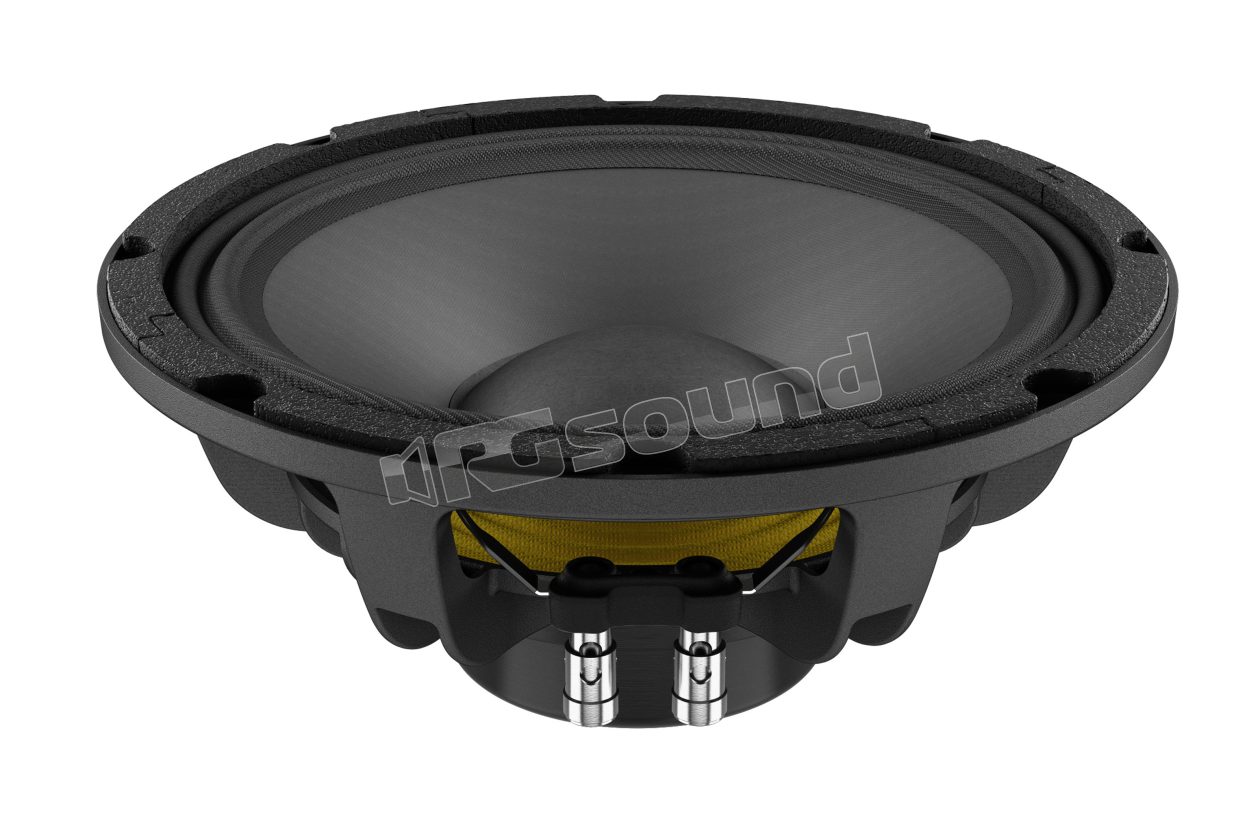

WAN102.50-16 25cm woofer with neodymium magnet, 16 Ohm impedance

LaVoce
Your price:
€ 155,60
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to

LaVoce WAN102.50-16 10" woofer with neodymium magnet and aluminum basket, 16 Ohm impedance

LaVoce code VLR10106

Main features

  • 2.5 inch CCAW voice coil
  • 97 dB/SPL sensitivity
  • 600 watts program power handling
  • Optimized motor and suspension
  • Optimized cooling system

Scheda tecnica

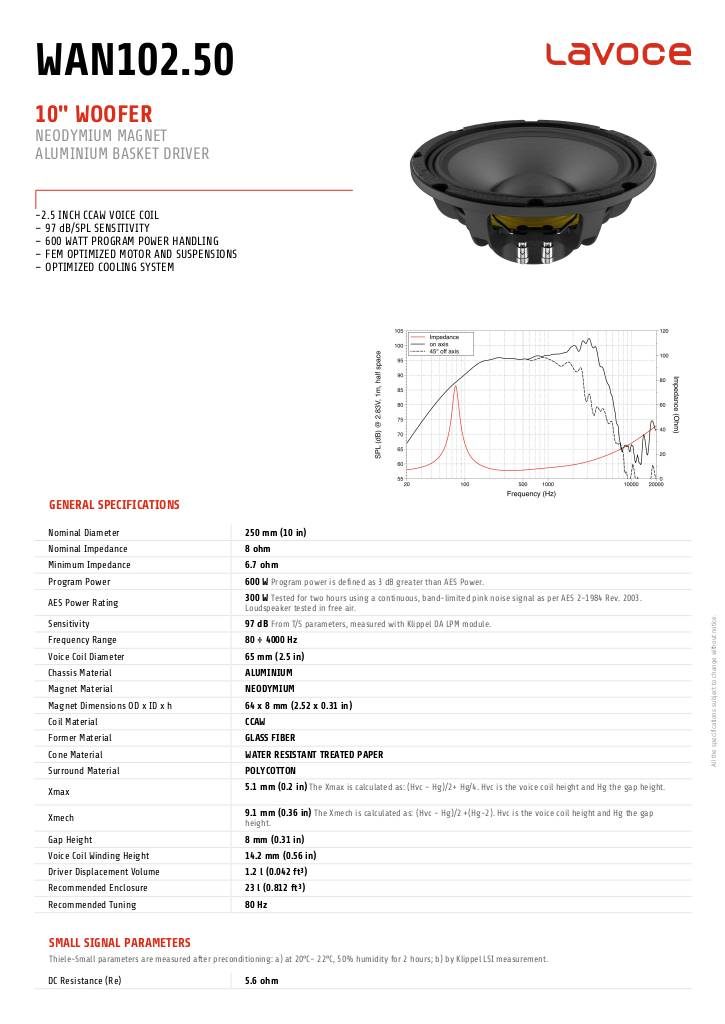

n-20260824143136-lavoce-wan102-50.pdf

LaVoce WAN102.50-16 technical specifications

  • Nominal diameter 250 mm (10 in)
  • Nominal impedance 8 ohm
  • Minimum impedance 6.7 ohm
  • Program power 600 W
  • AES nominal power 300 W
  • Sensitivity 97 dB
  • Frequency range 80 ÷ 4000 Hz
  • Voice coil diameter 65 mm (2.5 in)
  • Basket material ALUMINUM
  • Magnet material NEODYMIUM
  • Magnet dimensions OD x ID x h 64 x 8 mm (2.52 x 0.31 in)
  • Coil material CCAW
  • Surround material FIBER GLASS
  • Cone material WATER RESISTANT TREATED PAPER
  • Surround material POLYTONE
  • Xmax 5.1 mm (0.2 in)
  • Xmech 9.1 mm (0.36 in)
  • Gap height 8 mm (0.31 in)
  • Voice coil winding height 14.2 mm (0.56 in)
  • Driver displacement volume 1.2 l (0.042 ft³)
  • Recommended enclosure 23 l (0.812 ft³)
  • Recommended tuning 80 Hz
  • DC resistance (Re) 5.6 ohm
  • Diaphragm area (Sd) 350 cm² (54.25 in²)
  • Resonance frequency (Fs) 78 Hz
  • Moving mass (Mms) 32.6 g (1.15 oz)
  • Compliance (Cms) 0.129 mm/N
  • Force factor (BxL) 15.3 N/D
  • Mechanical Q factor (Qms) 4.73
  • Electrical Q factor (Qes) 0.38
  • Total Q factor (Qts) 0.35
  • Equivalent air volume (Vas) 22.4 l (0.791 ft³)
  • Voice coil inductance (Le) 0.52 mH
  • Reference efficiency (Eta 0) 2.62 %
  • Bandwidth efficiency product (EBP) 205 Hz
€ 155,60 Price incl. VAT
