WAN082.50 8"/200mm Woofer

LaVoce

Discontinued

Your price:
€ 125,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
500 Watt
RMS Power
250 Watt
Frequency Response
75 - 2000 Hertz
Sensitivity
94 dB
Impedance
8 Ohm
Weight
1,9 Kg
Voice Coil Diameter
65 mm

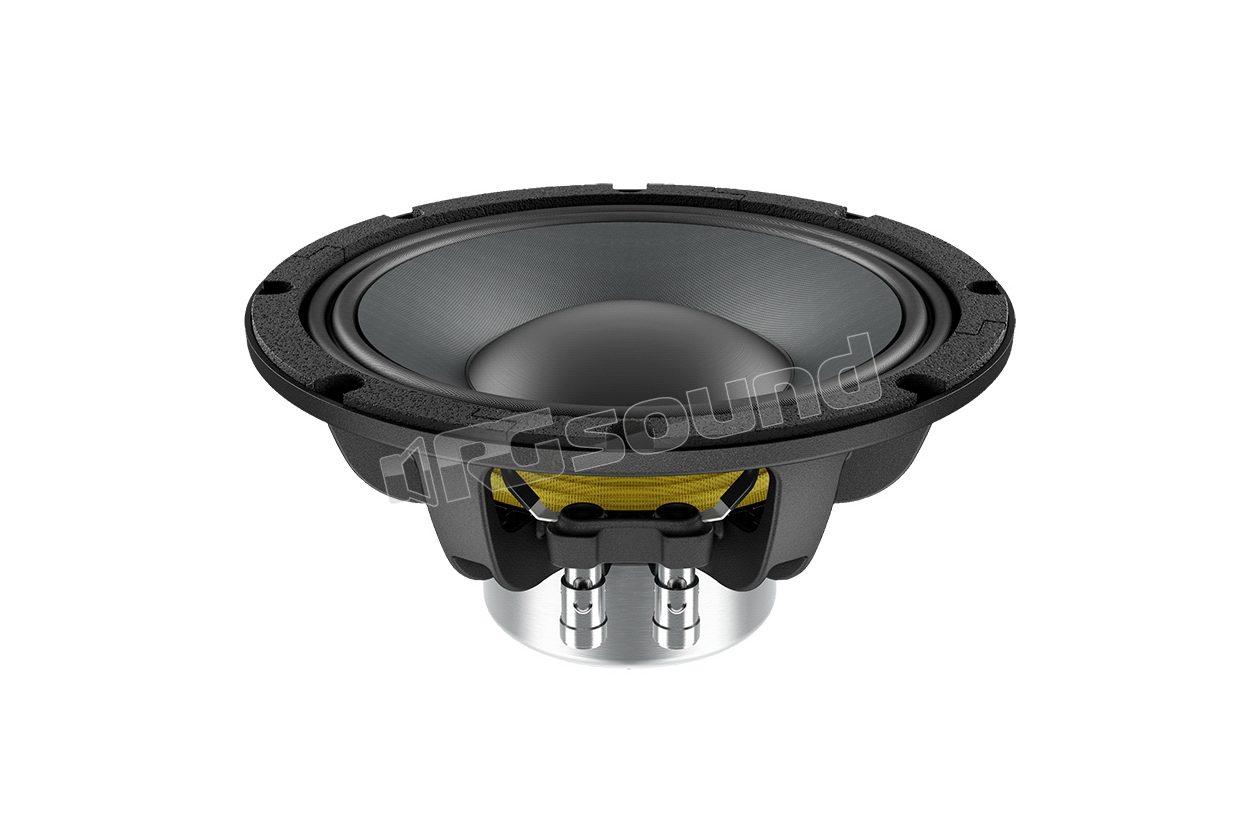

LaVoce WAN082.50 8"/200mm Woofer


LaVoce code 70R10083, product available on order only, 6 weeks delivery time from the date of order.

WAN082.50 Features

  • 2.5 inch copper voice coil
  • Sensitivity 94 db/spl
  • Program power handling 500 watts
  • FEM optimized motor and suspensions
  • Optimized cooling system
  • Resonance-free and robust basket design

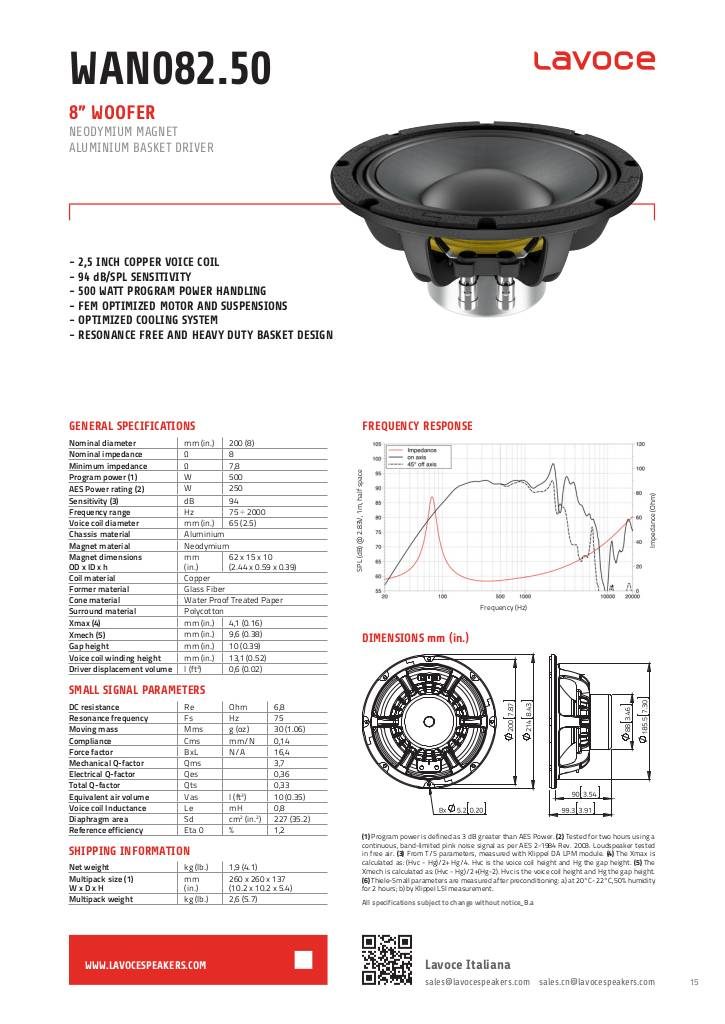

scheda tecnica

1549117754-wan08250-1.pdf

LaVoce WAN082.50 Technical Specifications

  • Nominal diameter mm (in) 200 (8)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 7.8
  • Program power W 500
  • AES power W 250
  • Sensitivity dB 94
  • Frequency range Hz 75 ÷ 2000
  • Voice coil diameter mm (in) 65 (2.5)
  • Basket material Aluminum
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 62 x 15 x 10 (2.44 x 0.59 x 0.39)
  • Coil material Copper
  • Structure material Fiberglass
  • Cone material Waterproof coated paper
  • Surround material Polycotton
  • Xmax mm (in) 4.1 (0.16)
  • Xmech mm (in) 9.6 (0.38)
  • Gap height mm (in) 10 (0.39)
  • Voice coil winding height mm (in) 13.1 (0.52)
  • Driver displacement volume l (ft³) 0.6 (0.02)
  • DC resistance Ohm 6.8
  • Resonance frequency Hz 75
  • Moving mass g (oz) 30 (1.06)
  • Compliance mm/N 0.14
  • Force factor N/A 16.4
  • Mechanical Q factor 3.7
  • Electrical Q factor 0.36
  • Total Q factor 0.33
  • Equivalent air volume l (ft3) 10 (0.35)
  • Voice coil inductance mH 0.8
  • Diaphragm area cm2 (in.2) 227 (35.2)
  • Reference efficiency 1.2
  • Net weight kg (lb) 1.9 (4.1)
  • Multipack dimensions L x W x H 260 x 260 x 137 (10.2 x 10.2 x 5.4)
  • Multipack weight kg (lb) 2.6 (5.7)
Discontinued
