WAN082.02 8" woofer with neodymium magnet

LaVoce
Your price:
€ 175,60
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
80 - 5000 Hertz
Sensitivity
96,5 dB
Impedance
8 Ohm
Weight
3 Kg
Installation Depth
88 mm
Voice Coil Diameter
51 mm

LaVoce WAN082.02 8" woofer with neodymium magnet and aluminum basket

LaVoce code VLR10088

Main features

  • 8 Ohm impedance
  • 2 inch CCAW voice coil
  • 96.5 db/spl sensitivity
  • 400 W program power handling
  • Optimized motor and suspensions
  • Optimized cooling system
  • Copper ring for extended frequency response

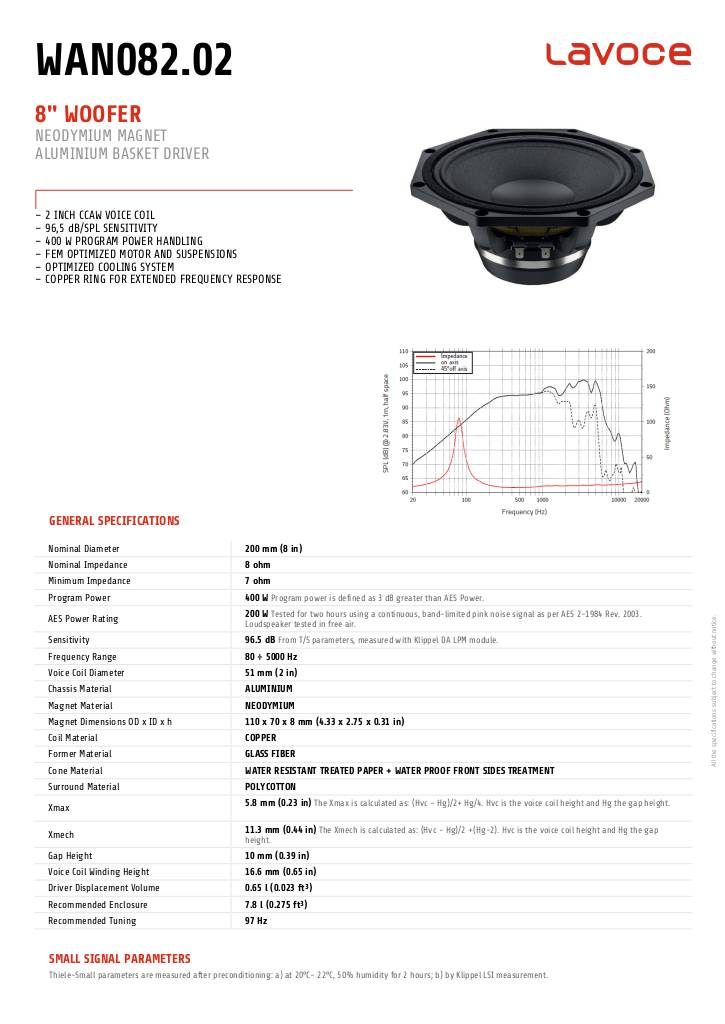

Scheda tecnica

n-20260824142124-lavoce-wan082-02.pdf

LaVoce WAN082.02 technical specifications

  • Nominal diameter 200 mm (8 in)
  • Nominal impedance 8 ohm
  • Minimum impedance 7 ohm
  • Program power 400 W
  • Nominal AES power 200 W
  • Sensitivity 96.5 dB
  • Frequency range 80 ÷ 5000 Hz
  • Voice coil diameter 51 mm (2 in)
  • Frame material ALUMINUM
  • Magnet material NEODYMIUM
  • Magnet dimensions OD x ID x h 110 x 70 x 8 mm (4.33 x 2.75 x 0.31 in)
  • Coil material COPPER
  • Surround material POLITONE
  • Cone material WATER RESISTANT TREATED PAPER + WATERPROOF TREATMENT OF FRONT SIDES
  • Xmax 5.8 mm (0.23 in)
  • Xmech 11.3 mm (0.44 in)
  • Gap height 10 mm (0.39 in)
  • Voice coil winding height 16.6 mm (0.65 in)
  • Driver displacement volume 0.65 l (0.023 ft³)
  • Recommended enclosure 7.8 l (0.275 ft³)
  • Recommended tuning 97 Hz
  • DC resistance (Re) 5.2 ohm
  • Diaphragm area (Sd) 220 cm² (34.1 in²)
  • Resonance frequency (Fs) 80 Hz
  • Moving mass (Mms) 29.9 g (1.055 oz)
  • Compliance (Cms) 0.131 mm/N
  • Force factor (BxL) 17.76 N/D
  • Mechanical Q factor (Qms) 4.88
  • Electrical Q factor (Qes) 0.25
  • Total Q factor (Qts) 0.23
  • Equivalent air volume (Vas) 8.97 l (0.317 ft³)
  • Voice coil inductance (Le) 0.02 mH
  • Reference efficiency (Eta 0) 1.82 %
  • Bandwidth efficiency product (EBP) 320 Hz
€ 175,60 Price incl. VAT
