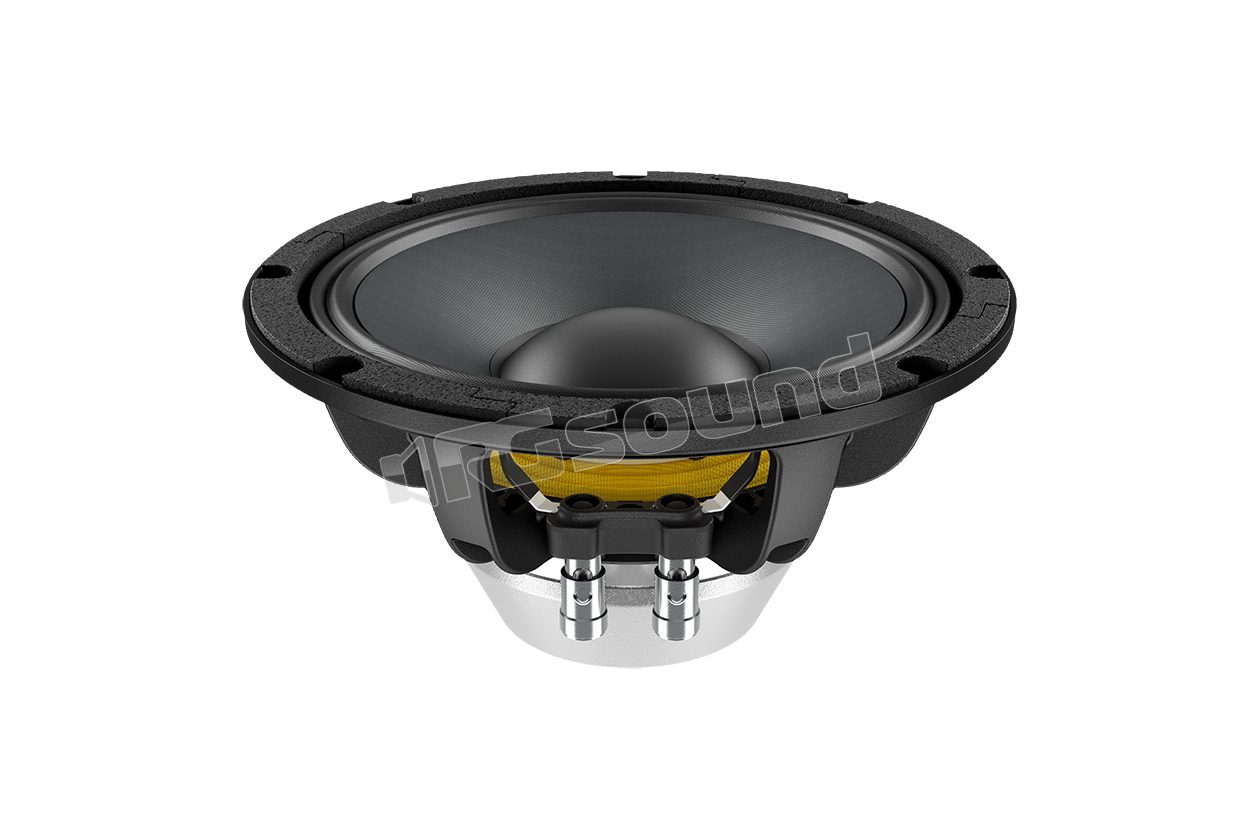

WAN082.00 8"/200mm Woofer

LaVoce

Discontinued

Your price:
€ 99,00
Price per single item (VAT included)
Type
Woofer and midwoofer
Speaker Size
200 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
80 - 3000 Hertz
Sensitivity
94,5 dB
Impedance
8 Ohm
Weight
2,4 Kg
Voice Coil Diameter
51 mm

LaVoce WAN082.00 8"/200mm Woofer

LaVoce code 70R10081

WAN082.00 Features

  • 2 inch CCAW voice coil
  • Sensitivity 94.5 db/spl
  • Program power handling 400 watts
  • FEM optimized motor and suspensions
  • Optimized cooling system
  • Copper ring for extended frequency response
  • Resonance-free and durable basket design

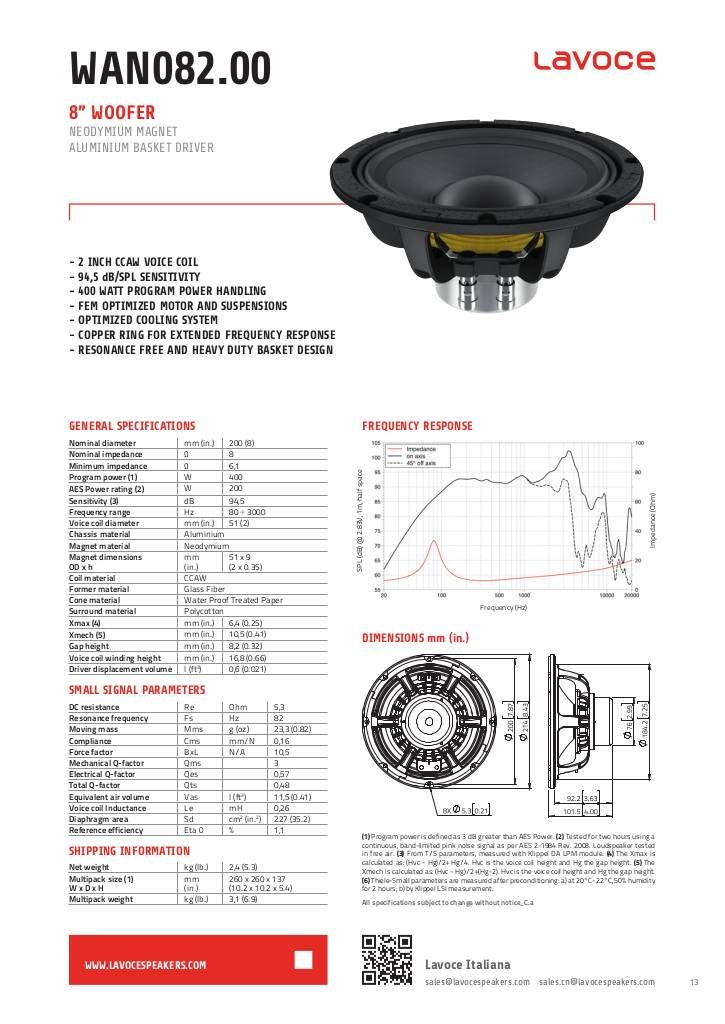

scheda tecnica

1549117773-wan08200-1.pdf

LaVoce WAN082.00 Technical Specifications

  • Nominal diameter mm (in) 200 (8)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.1
  • Program power W 400
  • AES power W 200
  • Sensitivity dB 94.5
  • Frequency range Hz 80 ÷ 3000
  • Voice coil diameter mm (in) 51 (2)
  • Frame material Aluminum
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (in) 51 x 9 (2 x 0.35)
  • Coil material CCAW
  • Structure material Fiberglass
  • Cone material Water-resistant treated paper
  • Surround material Polycotton
  • Xmax mm (in) 6.4 (0.25)
  • Xmech mm (in) 10.5 (0.41)
  • Gap height mm (in) 8.2 (0.32)
  • Voice coil winding height mm (in) 16.8 (0.66)
  • Driver displacement volume l (ft³) 0.6 (0.021)
  • DC resistance Ohm 5.3
  • Resonance frequency Hz 82
  • Moving mass g (oz) 23.3 (0.82)
  • Compliance mm/N 0.16
  • Force factor N/A 10.5
  • Mechanical Q factor 3
  • Electrical Q factor 0.57
  • Total Q factor 0.48
  • Equivalent air volume l (ft3) 11.5 (0.41)
  • Voice coil inductance mH 0.26
  • Diaphragm area cm2 (in.2) 227 (35.2)
  • Reference efficiency 1.1%
  • Net weight kg (lb) 2.4 (5.3)
  • Multipack dimensions L x W x H 260 x 260 x 137 (10.2 x 10.2 x 5.4)
  • Multipack weight kg (lb) 3.1 (6.9)
Discontinued
