WAN061.80 165mm woofer with 93.5 dB sensitivity, 400 Watt maximum power

LaVoce
Your price:
€ 104,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Woofer and midwoofer
Speaker Size
165 mm
MAX Power
400 Watt
RMS Power
200 Watt
Frequency Response
60 - 5500 Hertz
Sensitivity
93,5 dB
Impedance
8 Ohm
Weight
1,34 Kg
Installation Depth
69,7 mm

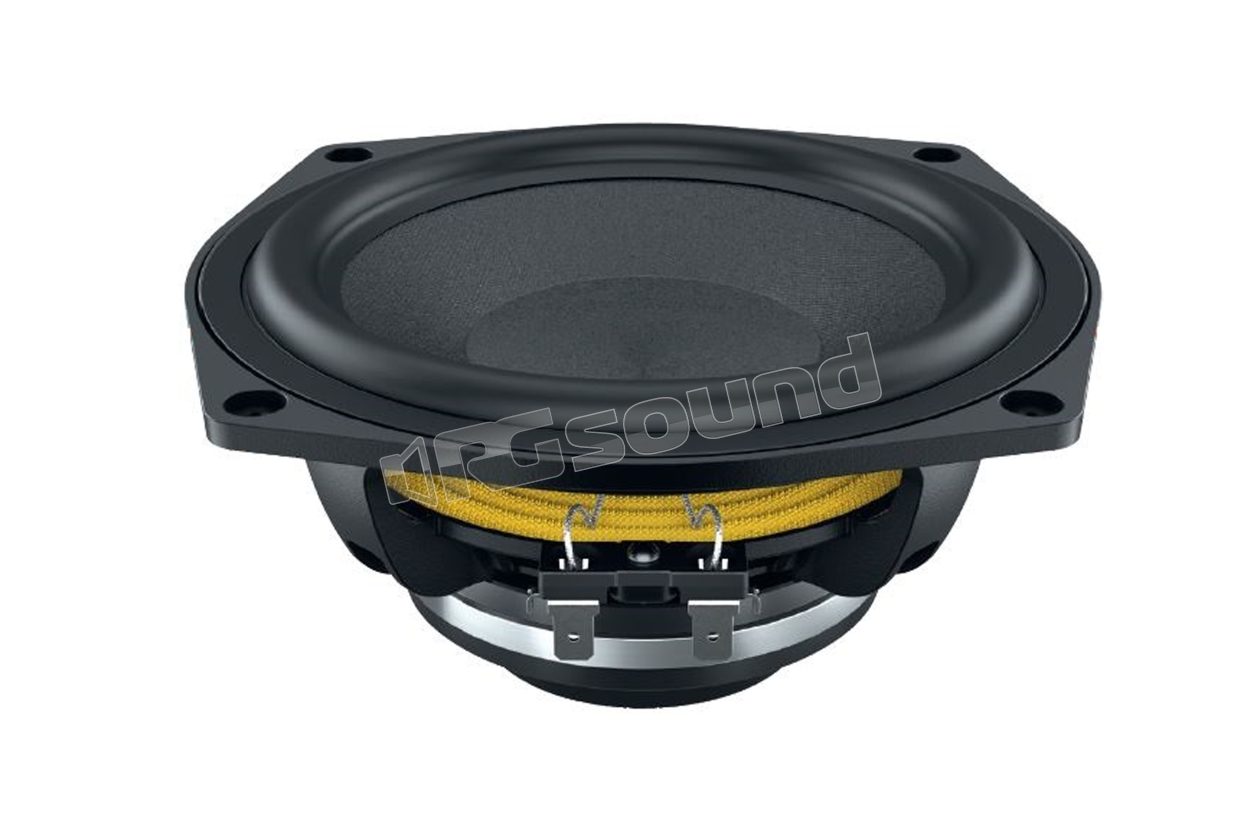

LaVoce WAN061.80 Woofer 165mm with 93.5 dB sensitivity, maximum power 400 Watts

165mm (6.5") high sensitivity woofer, with Neodymium magnet, treated paper cone resistant to water and aluminum basket.

WAN061.80 Features

  • 1.8 inch CCAW voice coil
  • Sensitivity 93.5 db/spl
  • Program power handling 400 Watts
  • Optimized motor and suspension FEM
  • Optimized cooling system
  • Frequency response Hz 60 ÷ 5500

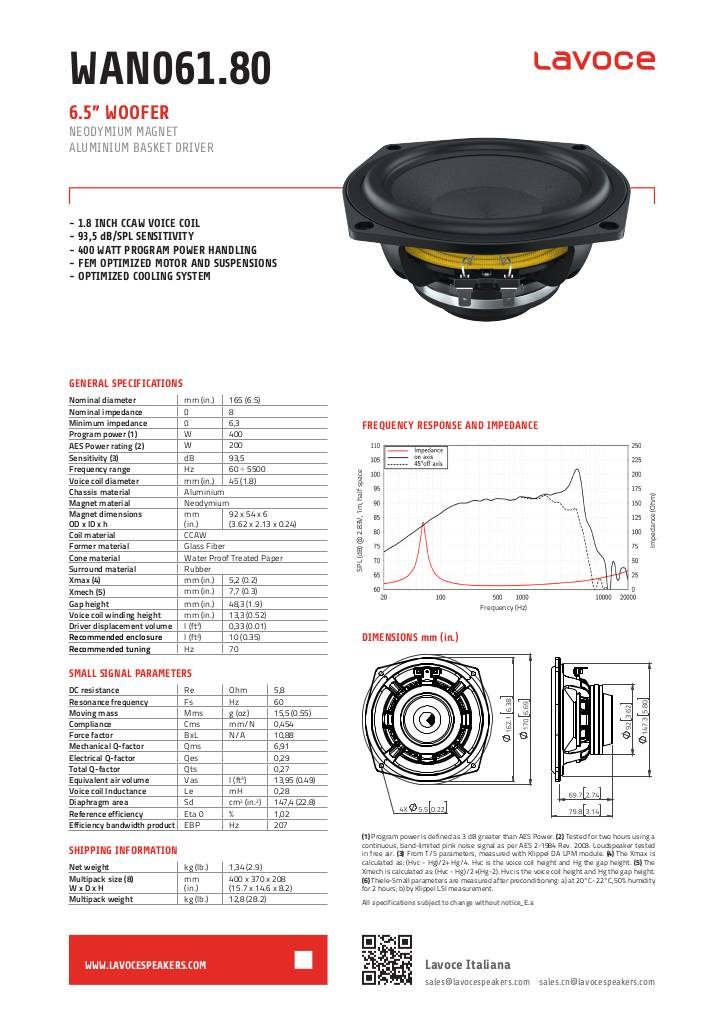

Scheda tecnica

n-20220113164717-lavoce-wan061-80-6in-woofer.pdf

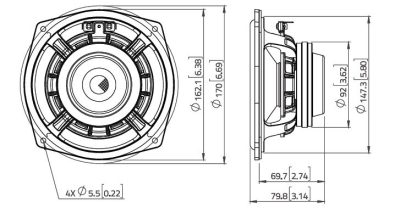

LaVoce WAN061.80 Technical Specifications

  • Nominal diameter mm (inches) 165 (6.5)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.3
  • Program power w 400
  • Rated power AES w 200
  • Sensitivity dB 93.5
  • Frequency range Hz 60 ÷ 5500
  • Voice coil diameter mm (inches) 45 (1.8)
  • Basket material Aluminum
  • Magnet material Neodymium
  • Magnet dimensions OD x ID x h mm (inches) 92 x 54 x 6 (3.62 x 2.13 x 0.24)
  • Coil material CCAW
  • Former material Fiberglass
  • Cone material Treated paper resistant to water
  • Surround material Rubber
  • Xmax mm (inches) 5.2 (0.2)
  • Xmech mm (inches) 7.7 (0.3)
  • Gap height mm (inches) 48.3 (1.9)
  • Voice coil winding height mm (inches) 13.3 (0.52)
  • Driver displacement volume l (ft³) 0.33 (0.01)
  • Recommended enclosure l (ft³) 10 (0.35)
  • Recommended tuning Hz 70
