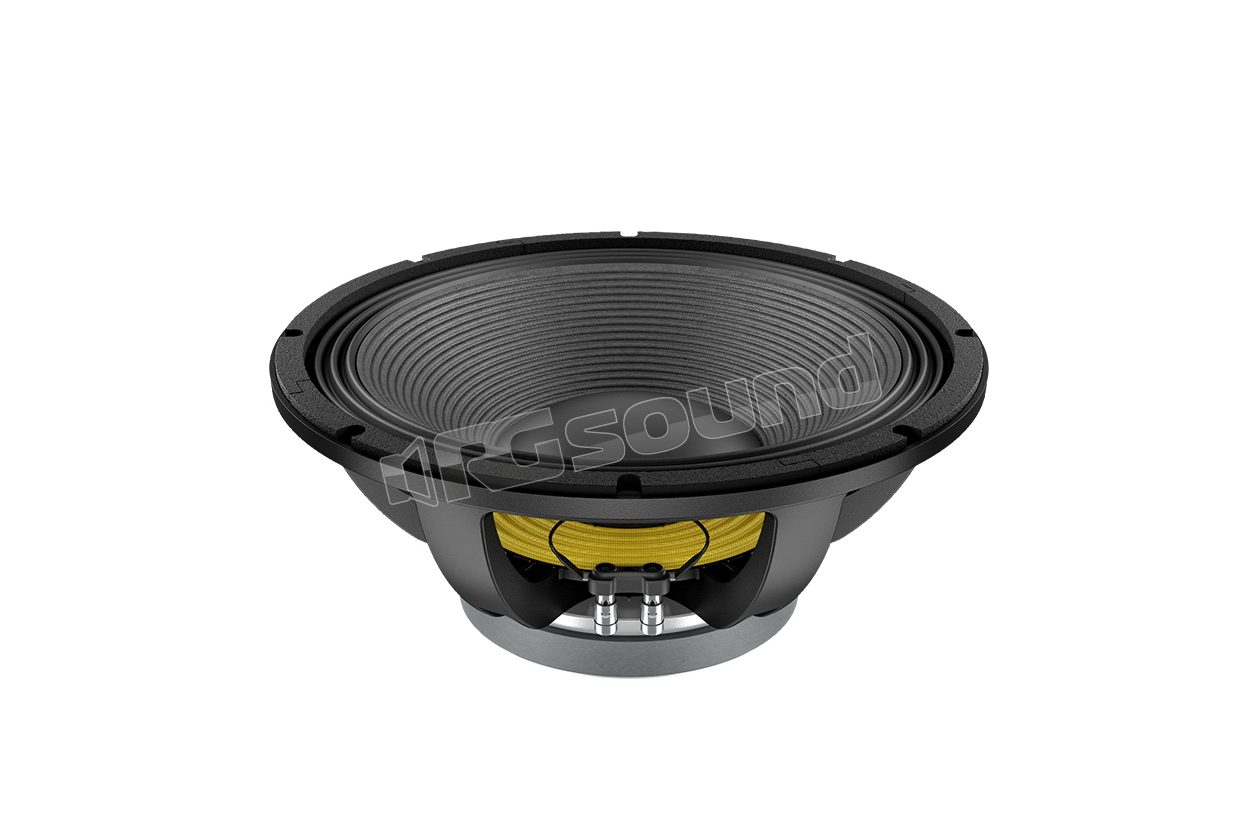

WAF154.02 15"/380mm Subwoofer

LaVoce
Your price:
€ 231,80
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
380 mm
MAX Power
1600 Watt
RMS Power
800 Watt
Frequency Response
40 - 1000 Hertz
Sensitivity
96 dB
Impedance
8 Ohm
Weight
10,2 Kg
Voice Coil Diameter
100 mm

LaVoce WAF154.02 15"/380mm Subwoofer

LaVoce code 70R10155

WAF154.02 Features

  • 4 inch copper voice coil
  • Sensitivity 96 db/spl
  • Program handling power of 1600 watts
  • Motor and suspensions optimized for Fem
  • Dual silicone spider
  • Resonance-free and resistant basket design
  • Triple surround roll

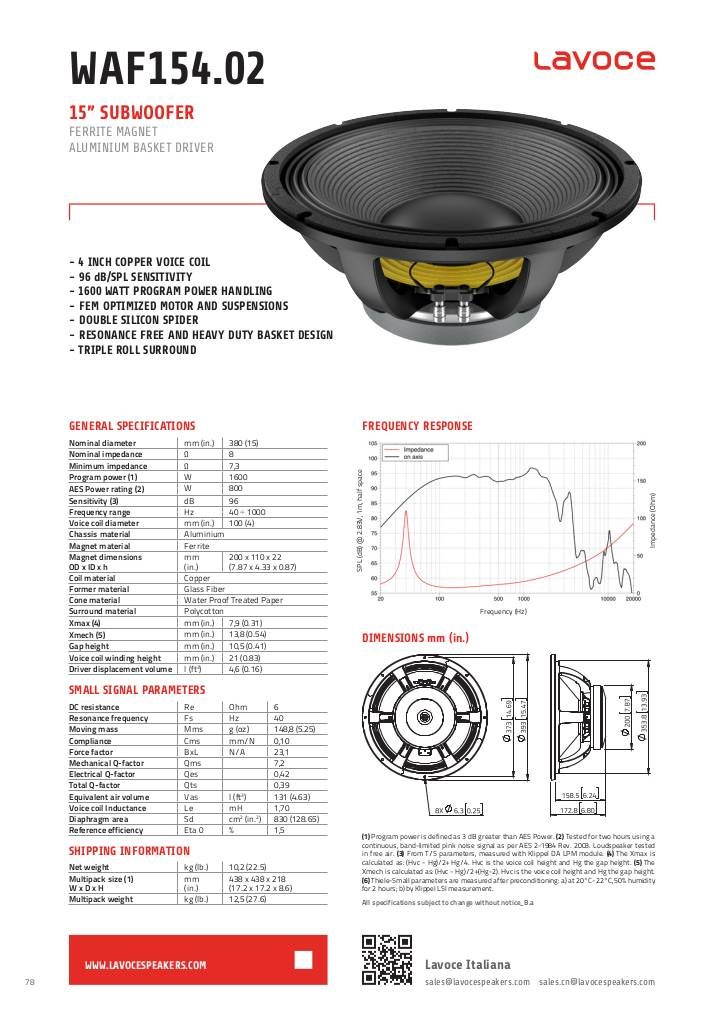

scheda tecnica

1549117718-waf15402-1.pdf

LaVoce WAF154.02 Technical Specifications

  • Nominal diameter mm (in) 380 (15)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 7.3
  • Program power W 1600
  • AES power W 800
  • Sensitivity dB 96
  • Frequency range Hz 40 ÷ 1000
  • Voice coil diameter mm (in) 100 (4)
  • Frame material Aluminum
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 200 x 110 x 22 (7.87 x 4.33 x 0.87)
  • Coil material Copper
  • Structure material Fiberglass
  • Cone material Water-resistant treated paper
  • Surround material Polycotton
  • Xmax mm (in) 7.9 (0.31)
  • Xmech mm (in) 13.8 (0.54)
  • Gap height mm (in) 10.5 (0.41)
  • Voice coil winding height mm (in) 21 (0.83)
  • Driver displacement volume l (ft³) 4.6 (0.16)
  • DC resistance Ohm 6
  • Resonance frequency Hz 40
  • Moving mass g (oz) 148.8 (5.25)
  • Compliance mm/N 0.10
  • Force factor N/A 23.1
  • Mechanical Q factor 7.2
  • Electrical Q factor 0.42
  • Total Q factor 0.39
  • Equivalent air volume l (ft3) 131 (4.63)
  • Voice coil inductance mH 1.7
  • Diaphragm area cm2 (in.2) 830 (128.65)
  • Reference efficiency 1.5%
  • Net weight kg (lb) 10.2 (22.5)
  • Multipack dimensions L x W x H 438 x 438 x 218 (17.2 x 17.2 x 8.6)
  • Multipack weight kg (lb) 12.5 (27.6)
€ 231,80 Price incl. VAT
