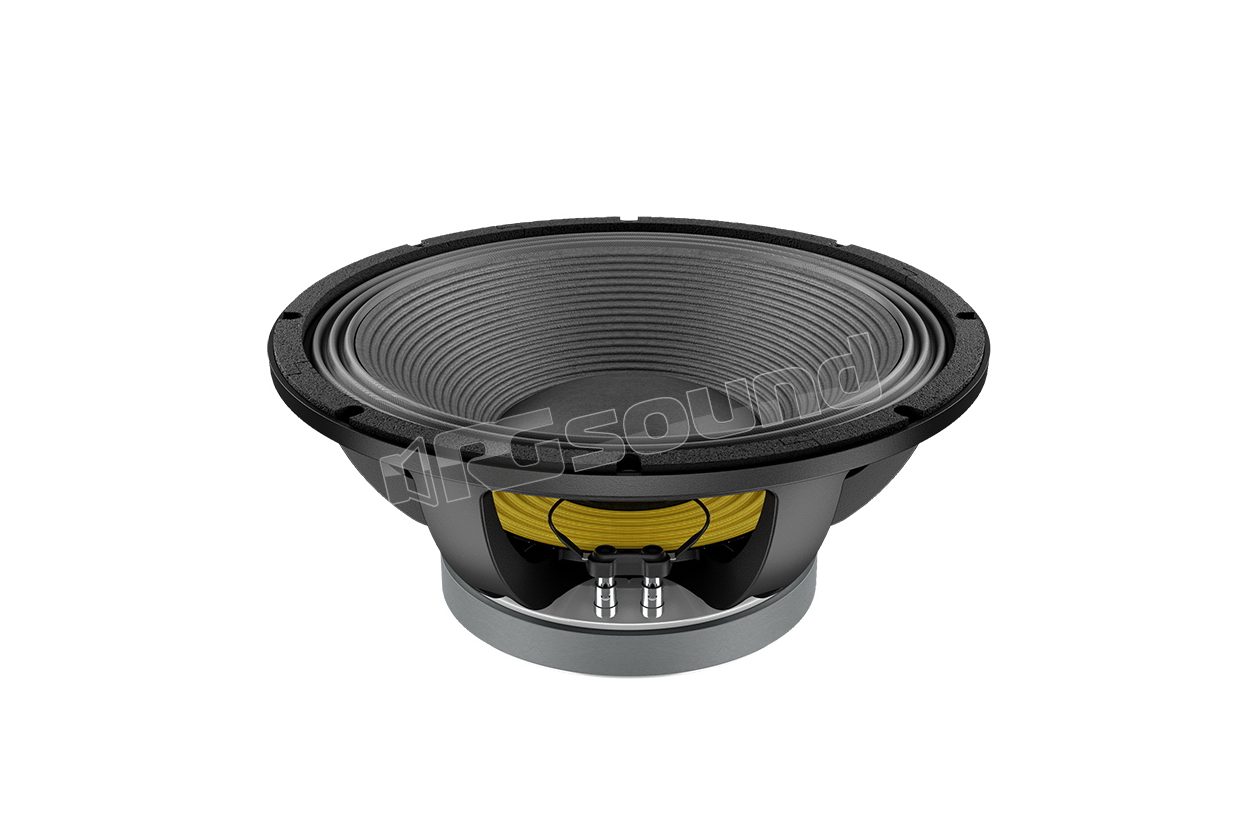

WAF154.01 15"/380mm Subwoofer

LaVoce
Your price:
€ 242,60
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
380 mm
MAX Power
2000 Watt
RMS Power
1000 Watt
Frequency Response
40 - 1000 Hertz
Sensitivity
97 dB
Impedance
8 Ohm
Weight
13,3 Kg
Voice Coil Diameter
100 mm

LaVoce WAF154.01 15"/380mm Subwoofer

LaVoce code 70R10154


WAF154.01 Features

  • 4 inch copper voice coil
  • Sensitivity 97 db/spl
  • Program power handling 2000 watts
  • Motor and suspensions optimized Fem
  • Optimized cooling system
  • Aluminum demodulating ring
  • Double silicone spider
  • Resonance-free and resistant basket design
  • Triple surround roller

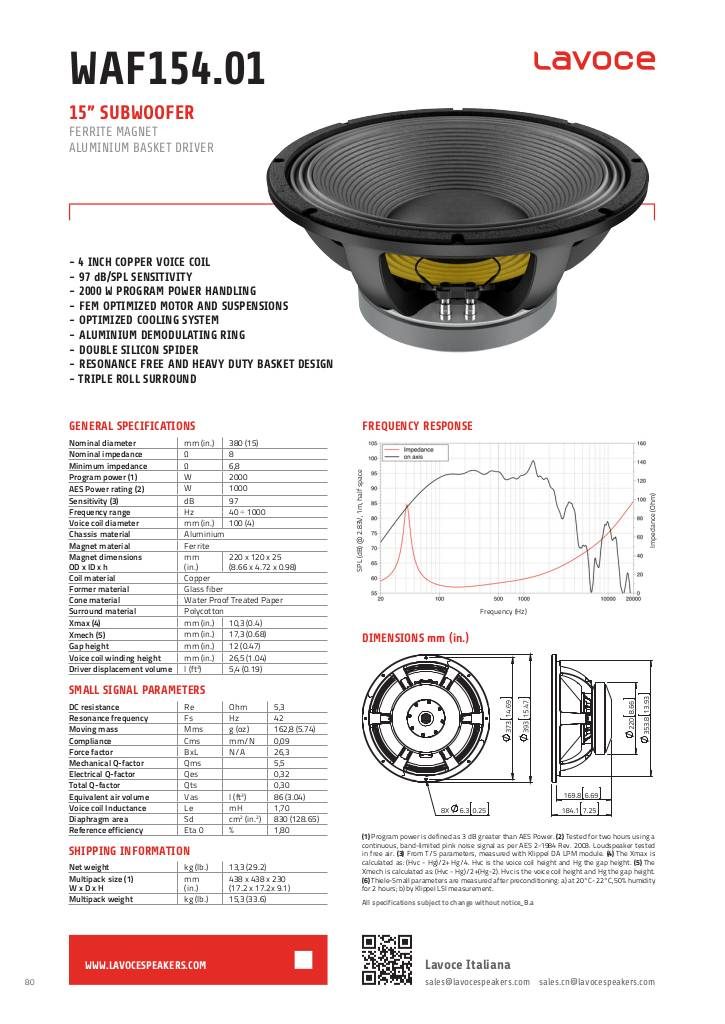

scheda tecnica

1549117711-waf15401-1.pdf

LaVoce WAF154.01 Technical Specifications

  • Nominal diameter mm (in) 380 (15)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.8
  • Program power W 2000
  • AES power W 1000
  • Sensitivity dB 97
  • Frequency range Hz 40 ÷ 1000
  • Voice coil diameter mm (in) 100 (4)
  • Frame material Aluminum
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 220 x 120 x 25 (8.66 x 4.72 x 0.98)
  • Coil material Copper
  • Coil material
  • Fiberglass Cone material
  • Treated water-proof paper
  • Surround material Polycotton
  • Xmax mm (in) 10.3 (0.4)
  • Xmech mm (in) 17.3 (0.68)
  • Gap height mm (in) 12 (0.47)
  • Voice coil winding height mm (in) 26.5 (1.04)
  • Driver displacement volume l (ft³) 5.4 (0.19)
  • DC resistance Ohm 5.3
  • Resonance frequency Hz 42
  • Moving mass g (oz) 162.8 (5.74)
  • Compliance mm/N 0.09
  • Force factor N/A 26.3
  • Mechanical Q factor 5.5
  • Electrical Q factor 0.32
  • Total Q factor 0.30
  • Equivalent air volume l (ft3) 86 (3.04)
  • Voice coil inductance mH 1.70
  • Diaphragm area cm2 (in.2) 830 (128.65)
  • Reference efficiency 1.80%
  • Net weight kg (lb) 13.3 (29.2)
  • Multipack dimensions L x W x H 438 x 438 x 230 (17.2 x 17.2 x 9.1)
  • Multipack weight kg (lb) 15.3 (33.6)
€ 242,60 Price incl. VAT
