WAF124.01 12"/300mm Subwoofer

LaVoce
Your price:
€ 221,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
300 mm
MAX Power
2000 Watt
RMS Power
1000 Watt
Frequency Response
40 - 1000 Hertz
Sensitivity
95 dB
Impedance
8 Ohm
Weight
12,1 Kg
Voice Coil Diameter
100 mm

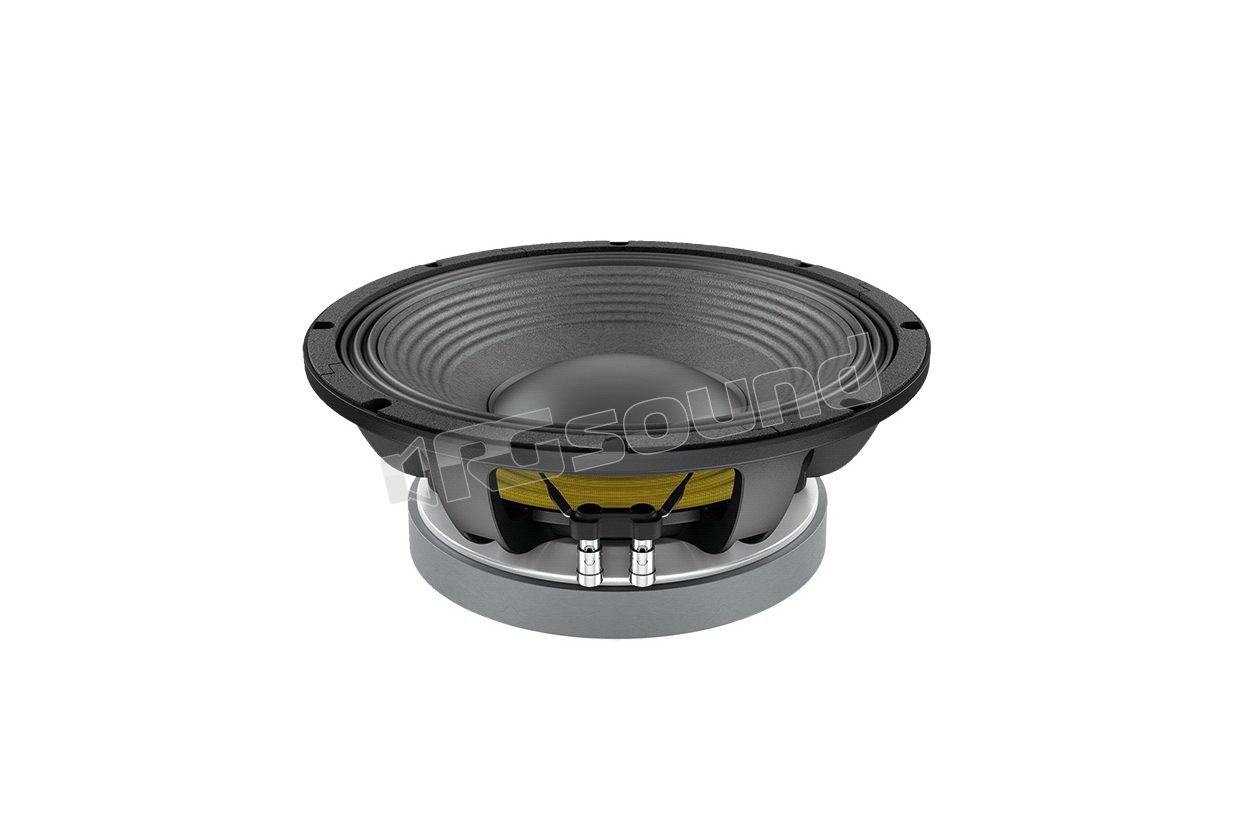

LaVoce WAF124.01 12"/300mm Subwoofer

Main features of the WAF124.01 speaker

  • 4 inch copper voice coil
  • Sensitivity 95 db/spl
  • Program power handling of 2000 watts
  • FEM optimized motor and suspensions
  • Optimized cooling system
  • Aluminum demodulating ring
  • Dual silicone spider
  • Resonance-free and durable basket design
  • Triple roll surround

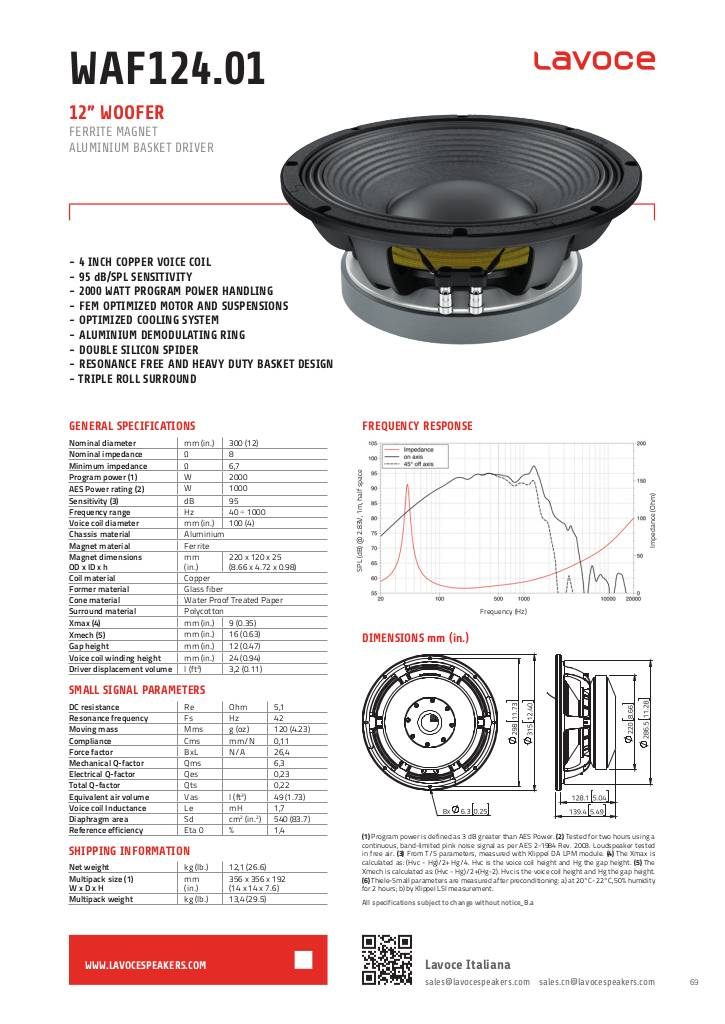

scheda tecnica

1549117117-waf12401-1.pdf

LaVoce WAF124.01 Technical specifications

  • Nominal diameter mm (in) 300 (12)
  • Nominal impedance Ohm 8
  • Minimum impedance Ohm 6.7
  • Program power W 2000
  • AES power W 1000
  • Sensitivity dB 95
  • Frequency range Hz 40 ÷ 1000
  • Voice coil diameter mm (in) 100 (4)
  • Basket material Aluminum
  • Magnet material Ferrite
  • Magnet dimensions OD x ID x h mm (in) 220 x 120 x 25 (8.66 x 4.72 x 0.98)
  • Coil material Copper
  • Structure material Fiberglass
  • Cone material Water-resistant treated paper
  • Surround material Polycotton
  • Xmax mm (in) 9 (0.35)
  • Xmech mm (in) 16 (0.63)
  • Gap height mm (in) 12 (0.47)
  • Voice coil winding height mm (in) 24 (0.94)
  • Driver displacement volume l (ft³) 3.2 (0.11)
  • DC resistance Ohm 5.1
  • Resonance frequency Hz 42
  • Moving mass g (oz) 120 (4.23)
  • Compliance mm/N 0.11
  • Force factor N/A 26.4
  • Mechanical Q factor 6.3
  • Electrical Q factor 0.23
  • Total Q factor 0.22
  • Equivalent air volume l (ft3) 49 (1.73)
  • Voice coil inductance mH 1.7
  • Diaphragm area cm2 (in.2) 540 (83.7)
  • Reference efficiency 1.4%
  • Net weight kg (lb) 12.1 (26.6)
  • Multipack dimensions L x W x H 356 x 356 x 192 (14 x 14 7.6)
  • Multipack weight kg (lb) 13.4 (29.5)
€ 221,00 Price incl. VAT
