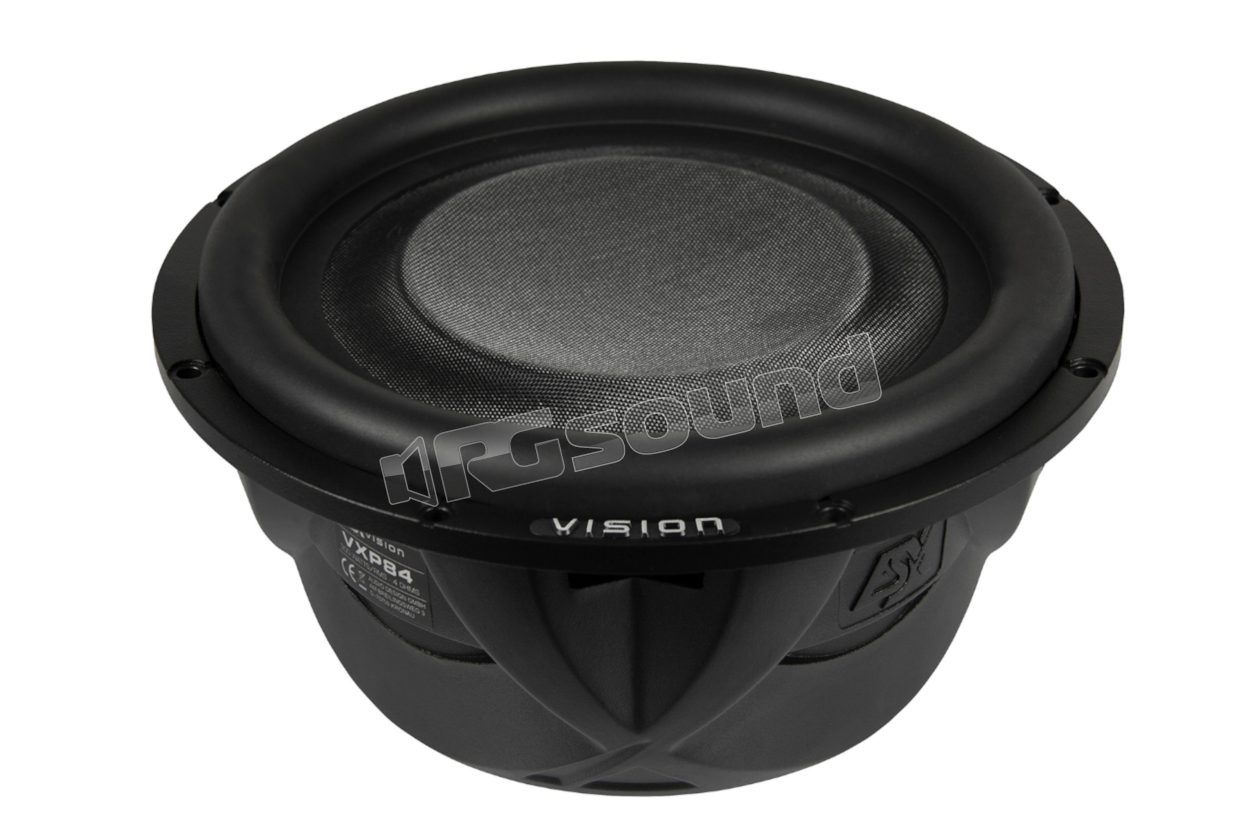

VXP84G High-end 20 cm (8") shallow subwoofer

ESX
Your price:
€ 335,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
200 mm
MAX Power
600 Watt
RMS Power
300 Watt
Impedance
4 Ohm

ESX VXP84G High-end flat subwoofer 20 cm (8")

With the VISION VXP subwoofers, ESX presents a new series of high-end woofers for which much effort has already been made. The most important components, such as the aluminum basket, voice coil and membrane, have been completely redesigned to achieve without compromise the development objective: high-end subwoofers with reduced installation depth. Practically nothing is "off the shelf", so in addition to the cone, 12 other components were specially created. The effort put into the independent cast aluminum basket with integrated magnetic drive and the newly formed honeycomb membrane is particularly evident.

Richly equipped voice coils, with a diameter of 50 mm for the 8 inch model and 65 mm for the 10 inch model, allow the subwoofers to withstand extremely high loads of 300 or 400 watts RMS. These high values are also due to the use of a special 32 mm long CCAW voice coil, which rests on an extremely lightweight fiberglass support. Thanks to the reduced mass and powerful dual magnet, it was possible to achieve another 2 dB of efficiency gain.


Flat woofers have the disadvantage that, because of their design, conventional cone membranes do not fit because the installation depth is not sufficient. So flat membranes remain. However, these are very susceptible to twisting if they are made of only one layer. ESX solves this problem with the extremely stable structure of the VXP multi-layer cones, reinforced on both sides with fiberglass on the outside and equipped with a rigid honeycomb structure inside. Both woofers prefer small and sealed enclosures.

VXP84G Features

  • High stability ESX aluminum basket
  • 2 x 34 oz. Dual magnet driver
  • Fiberglass honeycomb cone
  • Approximately 15% more cone area thanks to surround optimization
  • 50 mm CCAW voice coil on fiberglass support for approximately 2 dB higher sound pressure

Scheda tecnica

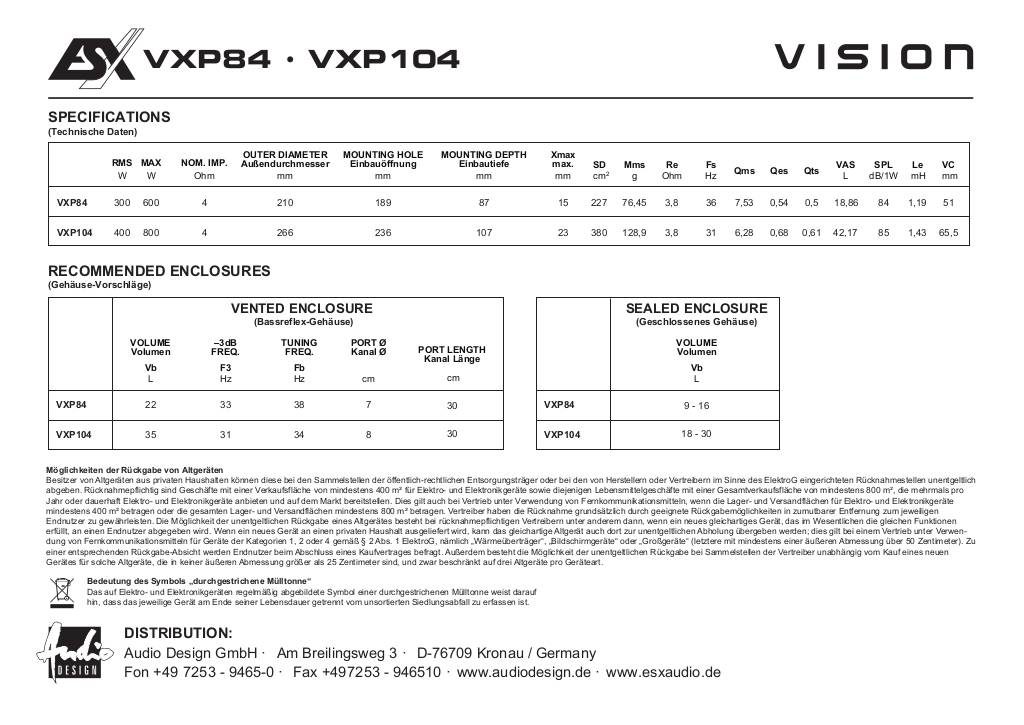

n-20250423171227-vxp84g.pdf

ESX VXP84G Technical Specifications

  • High-end flat subwoofer 20 cm (8")
  • Rated power 300/600 Watt RMS/Max.
  • Impedance 4 Ω
  • Installation depth 87 mm
  • Installation diameter 189 mm
€ 335,00 Price incl. VAT
