VXP84

ESX

Discontinued

Your price:
€ 316,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
200 mm
MAX Power
600 Watt
RMS Power
300 Watt
Sensitivity
84 dB
Impedance
4 Ohm
Weight
5,4 Kg
Installation Depth
87 mm
Woofer Material
Fibra di vetro

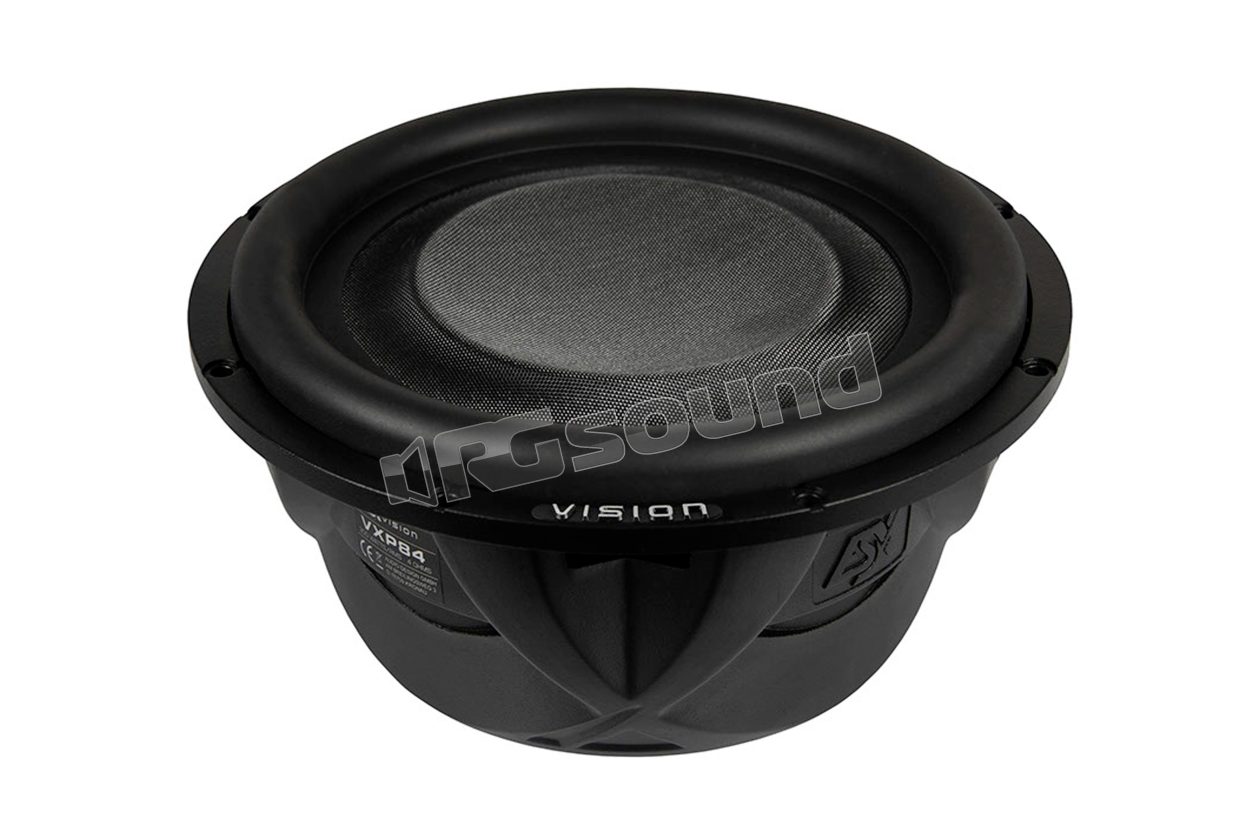

ESX VXP84 Flat 20 cm (8") high-performance subwoofer

With the VISION VXP subwoofers, ESX presents a new series of high-end woofers for which great effort has already been made at the drawing board. Important components such as aluminum basket, voice coil and membrane have been completely redesigned to achieve without compromise the development objective: high-end subwoofers with reduced installation depth. Practically nothing is "off-the-shelf", so in addition to the cone, another 12 components have been specially worked on. The effort on the independent aluminum die-cast basket with integrated magnetic drag and the newly formed honeycomb membrane is particularly evident.

The voice coils richly equipped with a diameter of 50 mm for the 8-inch model and even larger 65 mm for the 10-inch model allow the subwoofers to withstand extremely high loads of 300 or 400 watts RMS. The high values are also due to the use of a special 32 mm long CCAW voice coil, which is mounted on an extremely lightweight fiberglass support. Thanks to reduced mass and powerful dual magnets, it was possible to achieve another 2 dB more efficiency.

Flat woofers have the disadvantage that, due to their design, conventional cone membranes do not fit because there simply is not enough installation depth. So only flat membranes remain. However, these are very susceptible to twisting if they consist of a single layer. ESX solves this problem with the extremely stable structure of the multilayer VXP cones, which are reinforced on both sides with fiberglass on the outside and also have a rigid honeycomb structure inside. Both woofers prefer small and closed enclosures.

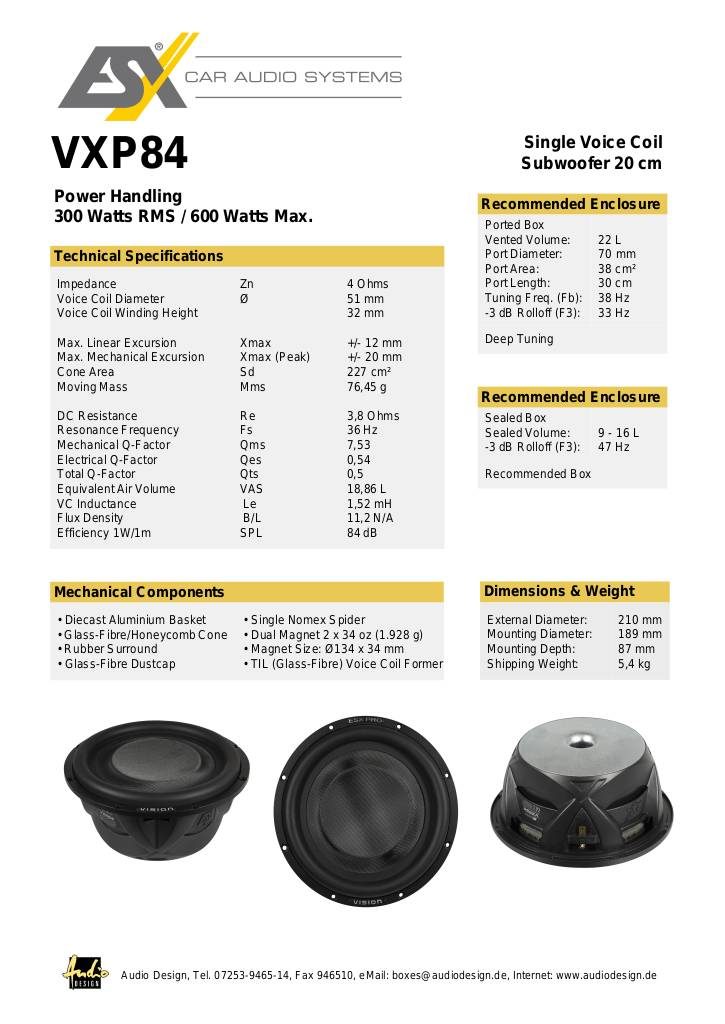

Scheda tecnica

n-20221121141540-vxp84.pdf

ESX VXP-84 technical specifications

ESX high stability die-cast aluminum basket
2 dual magnet drivers 34 ounces
Fiberglass honeycomb cone
Approximately 15% more cone area thanks to surround optimization
CCAW voice coil on fiberglass support for approx. 2 dB more sound pressure
+/- 20 mm X-Max
Flat 20 cm (8") subwoofer
Rated power 300/600 Watts RMS/max.
Impedance 4 Ohm
Voice coil 50 mm
2 x 34 ounces (1.9 kg) dual magnet Y30
X-Max. +/-20 mm
Installation depth: 87 mm
Installation opening: 189 mm

Discontinued
