VXP104G High-end 25 cm (10") shallow subwoofer

ESX
Your price:
€ 383,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Subwoofer
Speaker Size
250 mm
MAX Power
800 Watt
RMS Power
400 Watt
Impedance
4 Ohm

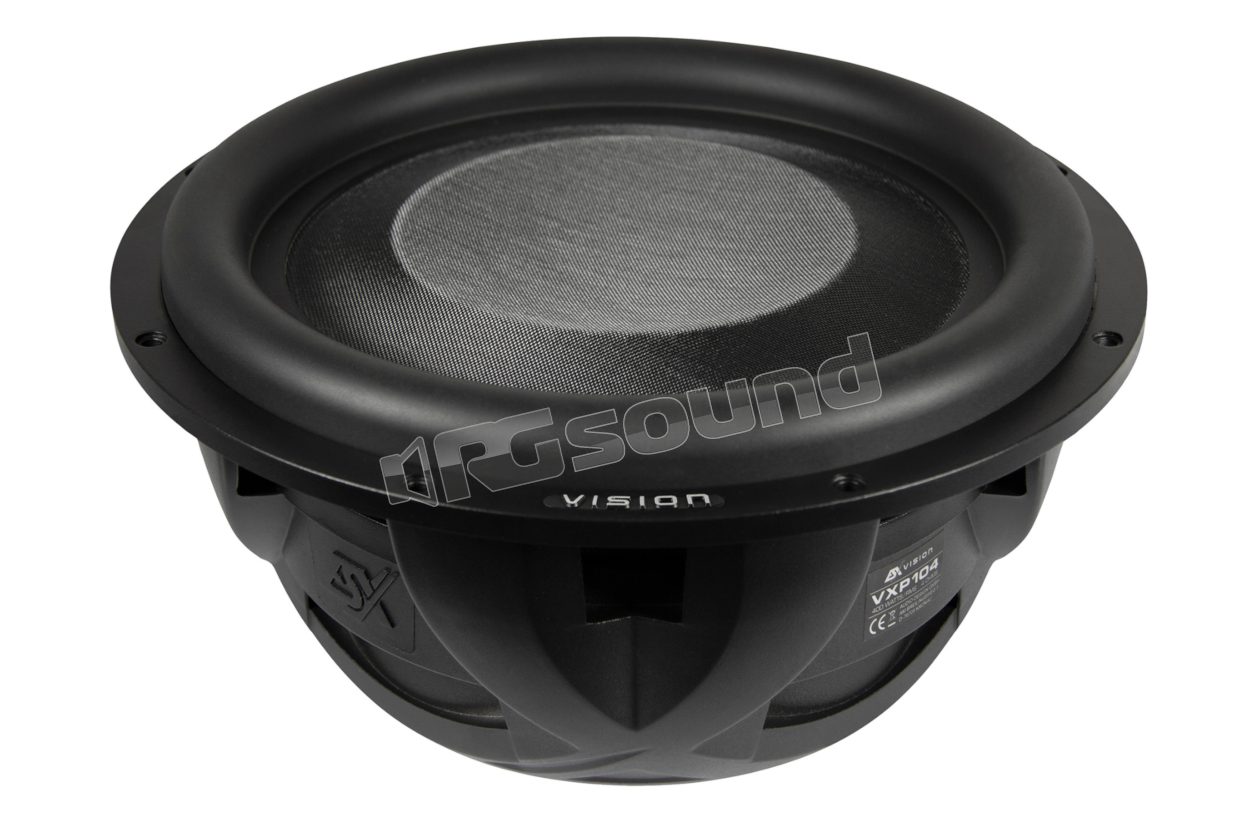

ESX VXP104G High-end flat subwoofer 25 cm (10")

With the VISION VXP subwoofers, ESX presents a new series of high-end woofers for which many efforts have already been made. The most important components, such as the aluminum basket, the voice coil and the membrane, have been completely redesigned to achieve without compromise the development objective: high-end subwoofers with a reduced installation depth. Practically nothing is "out of the box", so in addition to the cone, 12 other components were specially made. The effort put into the independent cast aluminum basket with integrated magnetic drive and the newly formed honeycomb membrane is particularly evident.

The richly equipped voice coils, with a diameter of 50 mm for the 8-inch model and 65 mm for the 10-inch model, allow the subwoofers to withstand extremely high loads of 300 or 400 watts RMS. These high values are also due to the use of a special 32 mm long CCAW voice coil, which rests on an extremely lightweight fiberglass support. Thanks to the reduced mass and the powerful double magnet, it was possible to achieve a superior efficiency of 2 dB.

Flat woofers have the disadvantage that, because of their design, conventional cone membranes do not fit because the installation depth is not sufficient. So only flat membranes remain. However, these are very susceptible to torsion if they are made of a single layer. ESX solves this problem with the extremely stable structure of the VXP multi-layer cones, reinforced on both sides with fiberglass on the outside and equipped with a rigid honeycomb structure on the inside. Both woofers prefer small, closed enclosures.

VXP104G Features

  • High-stability ESX aluminum basket
  • 2 x 45 oz. Dual magnet driver
  • Fiberglass honeycomb cone
  • Approximately 15% more cone area thanks to edge optimization
  • 65 mm CCAW voice coil on fiberglass support for approximately 2 dB higher sound pressure

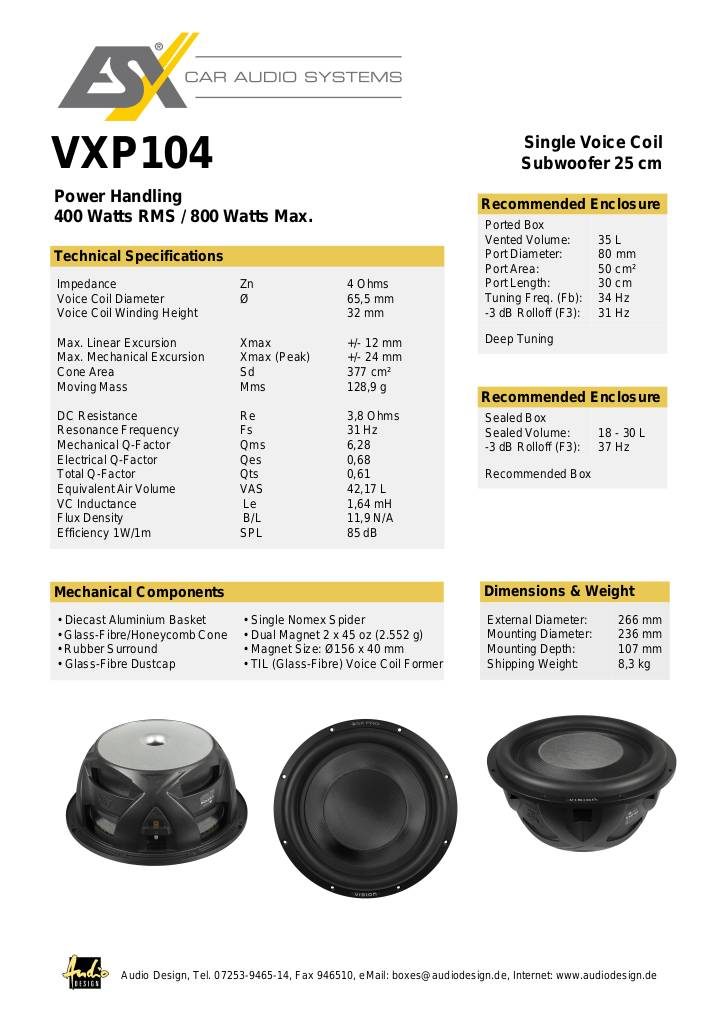

Scheda tecnica

n-20250423172937-vxp104g.pdf

ESX VXP104G Technical specifications

  • High-end flat subwoofer 25 cm (10")
  • Rated power 400/800 Watts RMS/Max.
  • Impedance 4 Ω
  • Installation depth 107 mm
  • Installation diameter 236 mm
€ 383,00 Price incl. VAT
