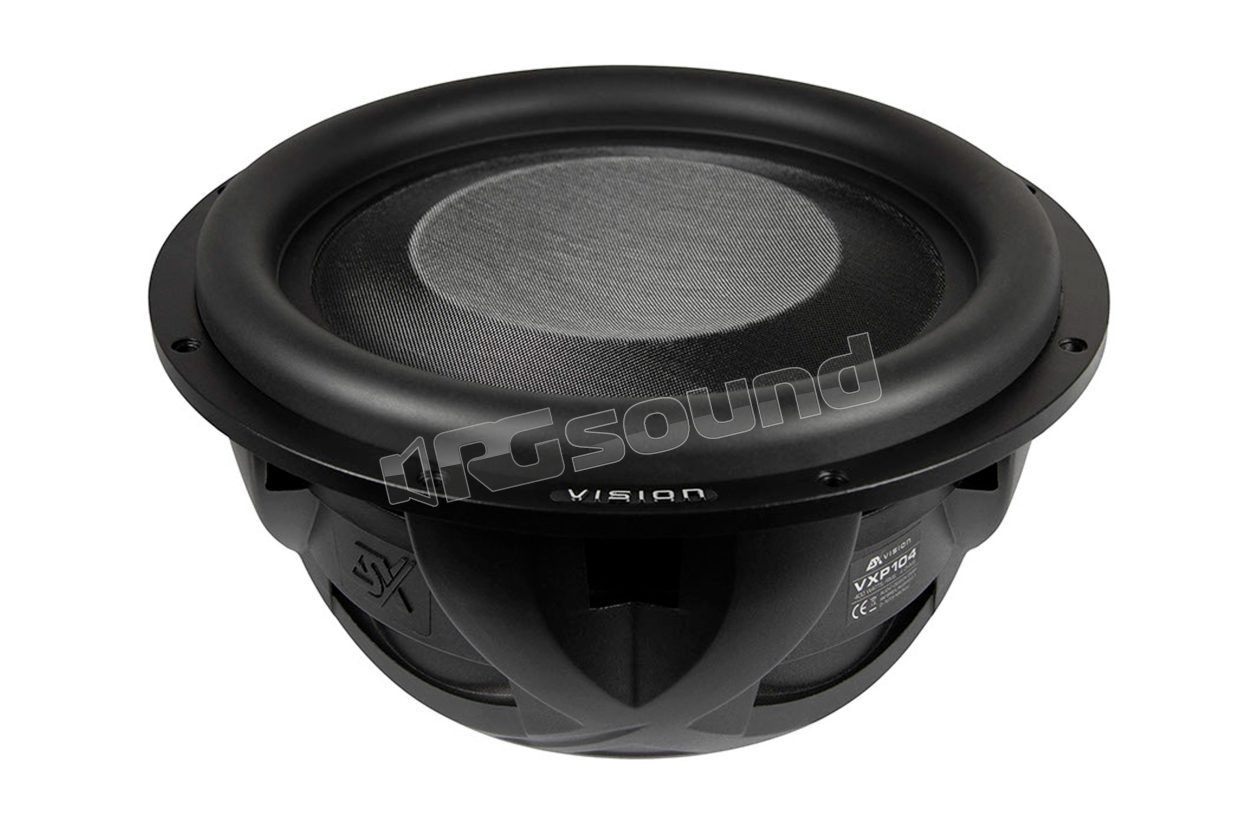

VXP104 High-performance 25 cm flat subwoofer

ESX

Discontinued

Your price:
€ 383,10
Price per single item (VAT included)
Type
Subwoofer
Speaker Size
250 mm
MAX Power
800 Watt
RMS Power
400 Watt
Sensitivity
85 dB
Impedance
4 Ohm
Weight
8,3 Kg
Installation Depth
107 mm
Woofer Material
Fibra di vetro

ESX VXP104 Flat 25 cm High-Performance Subwoofer

With the VISION VXP subwoofers, ESX presents a new series of high-end woofers for which considerable effort has already been made at the drawing board. Important components such as the aluminum basket, voice coil and diaphragm have been completely redesigned to achieve without compromise the development objective: high-end subwoofers with reduced installation depth. Practically nothing is "off-the-shelf", so in addition to the cone, another 12 components have been specially worked on. The effort on the independent aluminum die-cast basket with integrated magnetic drag and the newly formed honeycomb diaphragm is particularly evident.
The generously equipped voice coils with a diameter of 50 mm for the 8-inch model and even larger at 65 mm for the 10-inch model allow the subwoofers to handle extremely high loads of 300 or 400 watts RMS. The high values are also due to the use of a special 32 mm long CCAW voice coil, which is mounted on an extremely lightweight fiberglass support. Thanks to the reduced mass and the powerful dual magnet, it was possible to achieve an additional 2 dB more in efficiency.
Flat woofers have the disadvantage that, because of their design, conventional cone diaphragms do not fit because there simply is not enough installation depth. So only flat diaphragms remain. However, these are very susceptible to twisting if they consist of only a single layer. ESX solves this problem with the extremely stable structure of the VXP multi-layer cones, which are reinforced on both sides with fiberglass on the outside and also have a rigid honeycomb structure on the inside. Both woofers prefer small, sealed enclosures.

ESX VXP-104

  • Rated power 400/800 Watt RMS/max.
  • Impedance 4 Ohm
  • Voice coil 65 mm
  • 2 x 45 ounce (2.5 kg) dual magnet Y30
  • X-Max. +/-24 mm
  • Installation depth: 107 mm
  • Installation opening: 236 mm
  • High-stability ESX aluminum die-cast basket
  • 2 dual magnet drivers 45 ounce
  • Fiberglass honeycomb cone
  • Approximately 15% more cone area thanks to surround optimization
  • CCAW voice coil on fiberglass support for approx. 2 dB more sound pressure
  • +/- 24 mm X-Max
Discontinued
