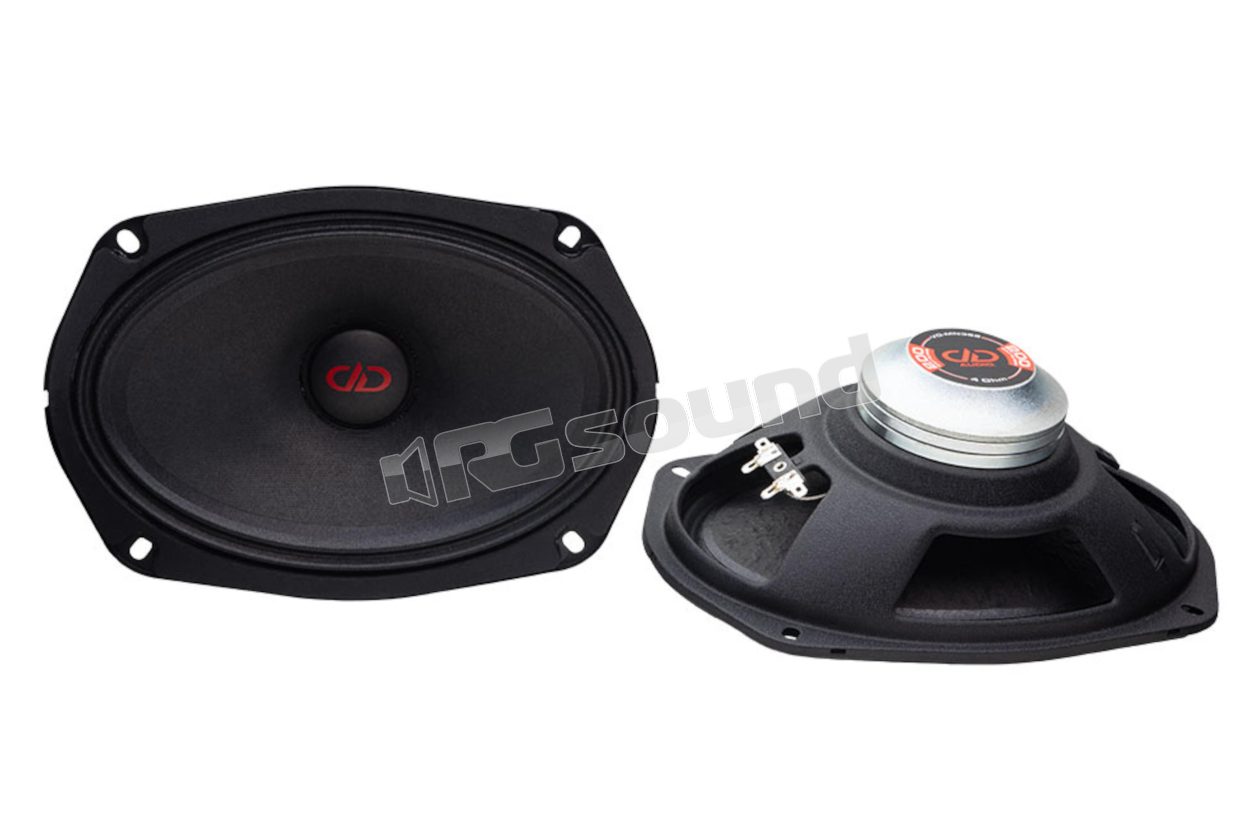

VO-MN369-S4 6 x 9 neodymium midrange speakers

DD Audio Digital Designs
Your price:
€ 209,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
6x9''
RMS Power
200 Watt
Frequency Response
100 – 14k Hertz
Sensitivity
100 dB

DD Audio Digital Designs VO-MN369-S4 Neodymium 6 x 9 midrange speakers

The new MN300 optimized for voice are Double Neo midrange drivers, equipped with an enhanced Neo ring that guarantees incredible efficiency and bandwidth. The ultra-lightweight long fiber pulp cone is driven by a low inductance copper-coated aluminum wire voice coil, which guarantees precise detail throughout the voice and tweeter range.

The cone surround is subjected to special processing for a smooth and refined superior frequency response. The Faraday short circuit ring guarantees low inductance and low distortion. These high-end drivers will take your music to a superior level of precision and transparency.

DD Audio Digital Designs VO-MN369-S4 Technical Specifications

  • Speaker size (inches) 6 x 9
  • RMS Power 200
  • VCD (inches) 1.5
  • Voice coil impedance S4
  • Frequency response (Hz) 100 - 14k
  • dBSPL 100
  • Fs (Hz) 117
  • Qms 9.59
  • Qes 0.52
  • Qts 0.49
  • BL (TM) 8.8
  • Vas (Ltr) 7.975
  • Xmax (MM) 5
  • Suspension stroke (MM) 15
  • Mounting diameter (inches) 6 x 8.5
  • Mounting diameter (mm) 152.4 x 212.5
  • Mounting depth (inches) 3.2
  • Mounting depth (mm) 82
€ 209,00 Price incl. VAT
