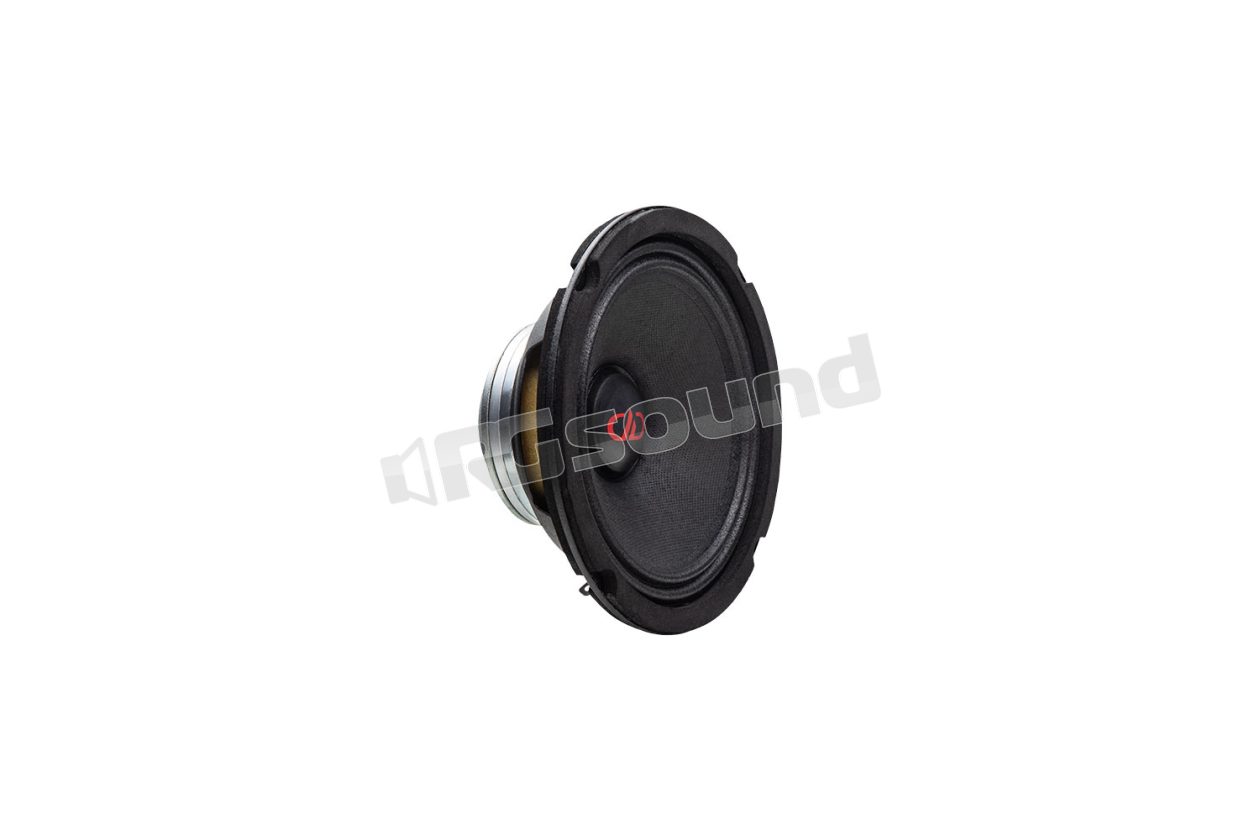

VO-MN306 6.5" neodymium midrange speaker

DD Audio Digital Designs
Your price:
€ 86,00
Price per pair (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
165 mm
RMS Power
200 Watt
Frequency Response
100 – 14k Hertz
Sensitivity
99 dB

DD Audio Digital Designs VO-MN306 6.5" Neodymium Midrange Speaker

The new MN300 voice optimized are Double Neo midrange speakers, equipped with an enhanced Neo ring that guarantees incredible efficiency and bandwidth. The ultralight long fiber pulp cone is driven by a low inductance voice coil in copper-coated aluminum wire, which guarantees precise detail throughout the vocal and tweeter range.

The edge of the cone is subjected to a special machining for a smooth and refined superior frequency response. Faraday's short-circuit ring guarantees low inductance and low distortion. These high-end drivers will take your music to a higher level of precision and transparency.

DD Audio Digital Designs VO-MN306 Technical Specifications

  • Speaker Size (inches) 6.5
  • RMS Power 200
  • VCD (inches) 1.5
  • Voice Coil Impedance S4
  • Frequency Response (Hz) 100 - 14k
  • dBSPL 99
  • Fs (Hz) 116
  • Qms 3.86
  • Qes 0.32
  • Qts 0.29
  • BL (TM) 8.8
  • Vas (Ltr) 3.89
  • Xmax (MM) 5
  • Suspension Stroke (MM) 15
  • Mounting Diameter (inches) 5.625
  • Mounting Diameter (MM) 143
  • Mounting Depth (inches) 2.25
  • Mounting Depth (MM) 58
€ 86,00 Price incl. VAT
