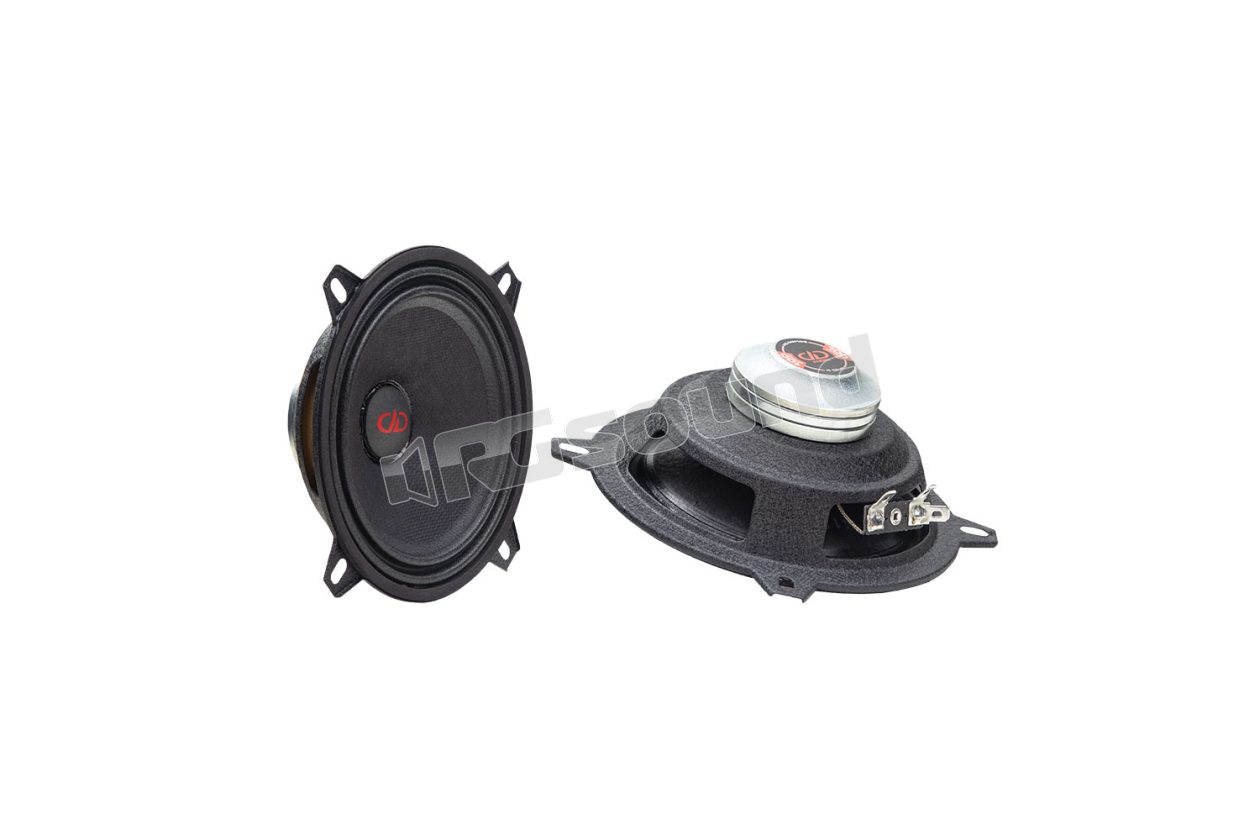

VO-MN105 5.25" Neo midrange speaker

DD Audio Digital Designs
Your price:
€ 94,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
130 mm
RMS Power
100 Watt
Frequency Response
120 – 18k Hertz
Sensitivity
95 dB

DD Audio Digital Designs VO-MN105 5.25" Neo Midrange Speaker

The VO-MN105 optimized for voice are high-end neodymium midrange drivers, high definition and high power, capable of integrating perfectly with high performance DD subwoofers in complete systems, to guarantee high volume and continuous operation throughout the day with incredible efficiency and bandwidth. The ultra-light cone made of long fiber pulp is driven by a low inductance voice coil in aluminum wire coated with copper, which guarantees precise detail throughout the voice and tweeter range.

The cone edge is subjected to special processing for smooth and refined superior frequency response. The Faraday short circuit ring guarantees low inductance and low distortion. These high-end drivers will bring your music to a higher level of precision and transparency. The 5.25 inch drivers, in addition to countless other OEM applications, were designed to be mounted on Honda Gold Wing, Indian motorcycles and even some vintage motorcycles.

DD Audio Digital Designs VO-MN105 Technical Specifications

  • Speaker Size (inches) 5.25
  • RMS Power 100 Watt
  • Voice Coil Impedance S4
  • Frequency Response (Hz) 120 - 18k
  • dBSPL 95
  • Fs (Hz) 145
  • Qms 4
  • Qes 1.08
  • Qts 0.85
  • Vas (Ltr) 1.8
  • Xmax (MM) 2
  • Suspension Excursion (MM) 7
  • Mounting Diameter (inches) 4.33
  • Mounting Diameter (MM) 110
  • Mounting Depth (inches) 1.97
  • Mounting Depth (MM) 50
€ 94,00 Price incl. VAT
