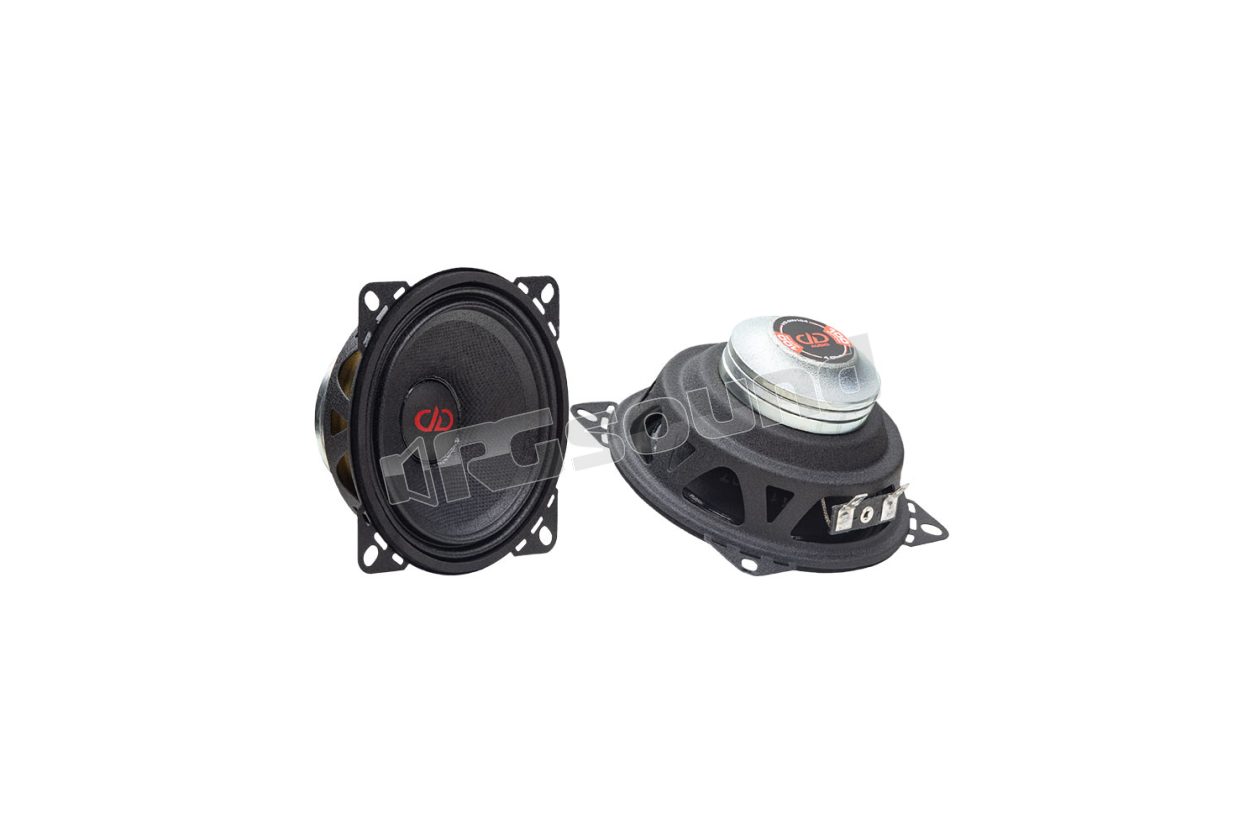

VO-MN104 4" Neo midrange speaker

DD Audio Digital Designs
Your price:
€ 94,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
100 mm
RMS Power
100 Watt
Frequency Response
120 – 18k Hertz
Sensitivity
93.5 dB

DD Audio Digital Designs VO-MN104 4" Neo Midrange Speaker

The voice-optimized MN100 are high-end neodymium midrange drivers, high-definition and high-power, capable of integrating perfectly with high-performance DD subwoofers in complete systems, to guarantee high volume and continuous operation throughout the day with incredible efficiency and bandwidth. The ultra-lightweight long-fiber pulp cone is driven by a low-inductance copper-coated aluminum wire voice coil, which guarantees precise detail across the full vocal and tweeter range.

The cone surround is subjected to special processing to ensure a smooth and refined superior frequency response. The Faraday short-circuit ring ensures low inductance and low distortion. These high-end drivers will take your music to a higher level of precision and transparency. With the addition of a 4" driver, the VO series is now compatible with an exceptionally wide range of OEM applications.

DD Audio Digital Designs VO-MN104 Technical Specifications

  • Speaker Size (inches) 4
  • RMS Power 100 Watt
  • VCD (inches) 1
  • Voice Coil Impedance S4
  • Frequency Response (Hz) 120 - 18k
  • dBSPL 93.5
  • Fs (Hz) 140
  • Qms 3.4
  • Qes 1.02
  • Qts 0.79
  • BL (TM) 3
  • Vas (Ltr) 1.5
  • Xmax (MM) 2
  • Suspension Travel (MM) 7
  • Mounting Diameter (inches) 3.7
  • Mounting Diameter (MM) 94
  • Mounting Depth (inches) 1.875
  • Mounting Depth (MM) 47.7
