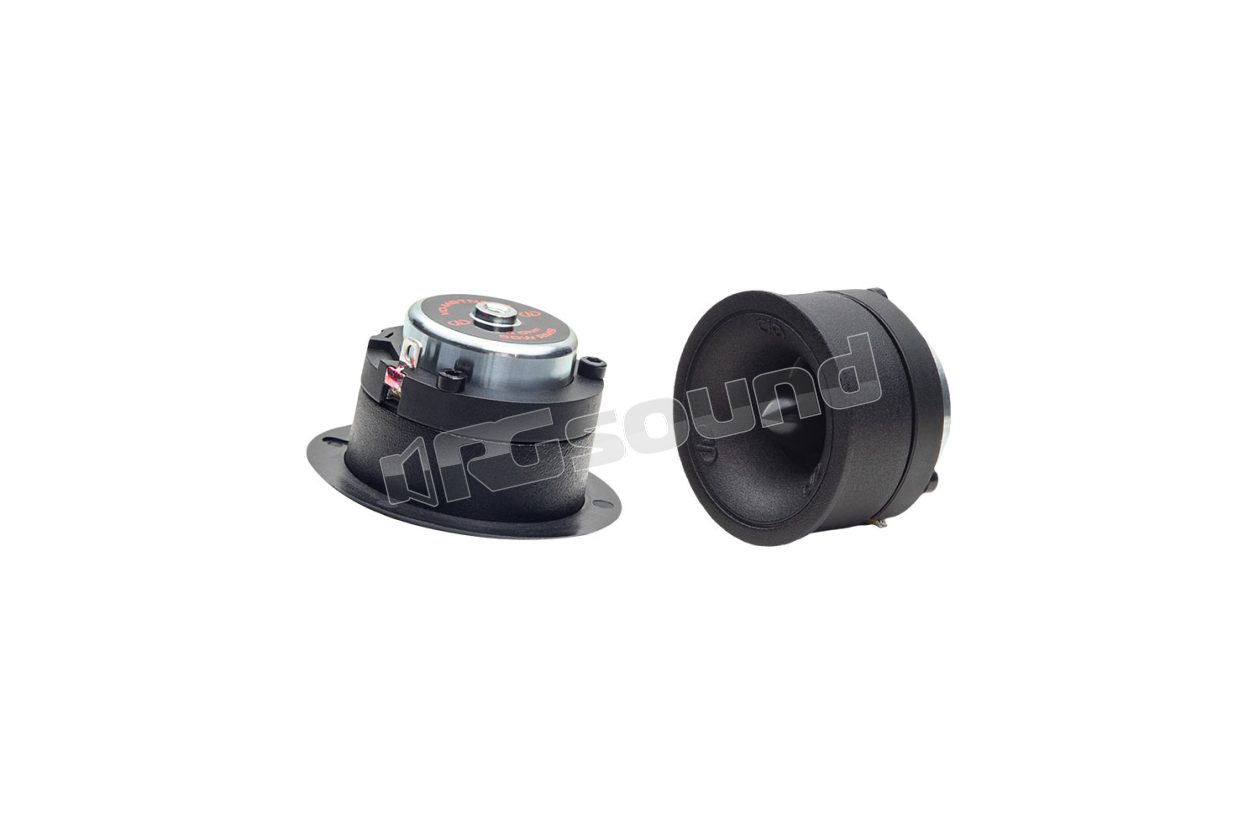

VO-MBTN125 1" Micro-Bullet Tweeter

DD Audio Digital Designs
Your price:
€ 94,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Tweeter
MAX Power
100 Watt
RMS Power
50 Watt
Frequency Response
3,5k – 20k Hertz
Sensitivity
104 dB

DD Audio Digital Designs VO-MBTN125 1" Micro-Bullet Tweeter

The Voice Optimized B1 (1 inch bullet tweeter) has reached its fourth generation of development with a further step forward in downsizing engineering. The result of this successful project is the brand new VO-MBTN125 Neo micro bullet tweeter, which presents itself as a true bullet compression tweeter, with dimensions similar to those of a dome tweeter, with flush mount capability, capable of combining the power and clarity of professional audio with the practicality of OEM design.

With a total diameter of 45 mm and an overall depth of 34 mm, the VO-MBTN125 is clearly compact, but it's not just the size that contributes to its overall versatility. The new die-cast aluminum horn structure incorporates a removable flange and a grip ring that facilitate conventional mounting on the door panel.

On the back there is a threaded hole for rear mounting. The low-profile design was conceived for use with OEM grilles and commercially available adapter plates, expanding the application possibilities to dashboards, A/B pillar mounting and soundbar positions previously reserved for lower power dome tweeters.

DD Audio Digital Designs VO-MBTN125 Technical Specifications

  • Speaker size (inches) 1
  • Speaker size (mm) 25
  • RMS Power 50
  • Peak Power 100
  • VCD (inches) 1
  • VCD (mm) 25
  • Voice coil impedance S4
  • Frequency response (Hz) 3.5k - 20k
  • dBSPL 104
  • Mounting diameter (inches) 1.8
  • Mounting diameter (mm) 45
  • Mounting depth (inches) 1.4
  • Mounting depth (mm) 34
€ 94,00 Price incl. VAT
