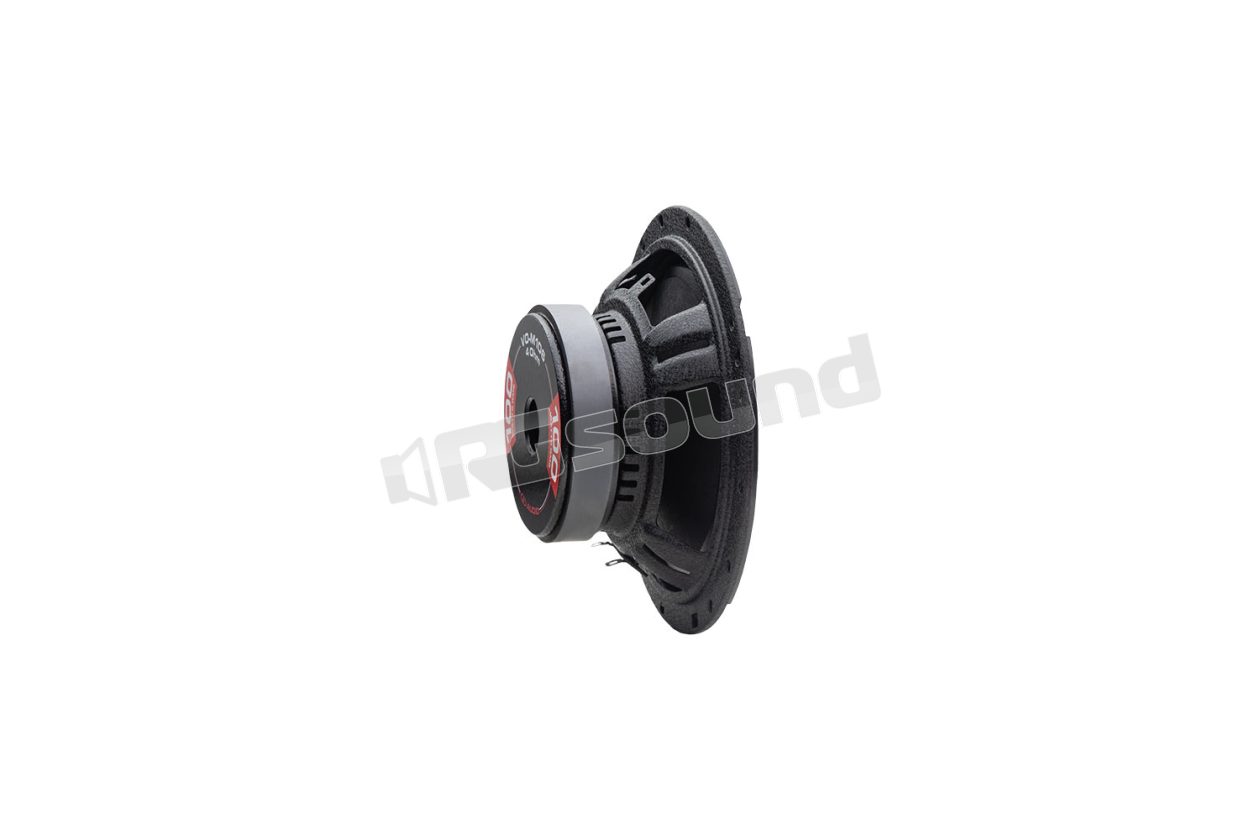

VO-M106-S4 6.5" midrange speaker

DD Audio Digital Designs
Your price:
€ 56,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Midrange
Speaker Size
165 mm
RMS Power
100 Watt
Frequency Response
130 – 20k Hertz
Sensitivity
98 dB

DD Audio Digital Designs VO-M106-S4 6.5" Midrange Speaker

The VO-M106 Voice Optimized midrange driver is a high-power, high-fidelity driver optimized to deliver maximum efficiency with minimal RMS power consumption. The ultra-lightweight moving mass is driven by a Y35 magnetic system that uses Faraday loop shorting rings to reduce distortion and extend frequency range.

The voice coil is wound with CCA wire on a 30 mm diameter, increasing long-term thermal efficiency and overall sensitivity, which helps keep it cool and efficient during extended playback periods. The water-resistant cone material is made from synthetic resin, while the dust cap is carbon fiber, glued to the speaker frame to extend the natural transparency of high frequencies.

All these carefully designed elements combine in a shallow basket structure to allow installation in numerous OEM applications. These hand-crafted speakers represent an excellent upgrade for systems focused on overall energy efficiency. Whether you use factory power or pair them with DD's SS amplifiers, you'll get more powerful and clean sound with minimal modifications to your vehicle's OEM interior.

DD Audio Digital Designs VO-M106-S4 Technical Specifications

  • Speaker Size (inches) 6.5
  • RMS Power 100 Watt
  • VCD (inches) 1.25
  • Voice Coil Impedance S4
  • Frequency Response (Hz) 130 - 20k
  • dBSPL 98
  • Fs (Hz) 130
  • Qms 12.55
  • Qes 1.34
  • Qts 1.21
  • BL (TM) 4.4
  • Vas (Ltr) 4.5
  • Xmax (inches) 4
  • Suspension Travel (mm) 12
  • Mounting Diameter (inches) 5.6
  • Mounting Diameter (mm) 142
  • Mounting Depth (inches) 2.5
  • Mounting Depth (mm) 63
€ 56,00 Price incl. VAT
