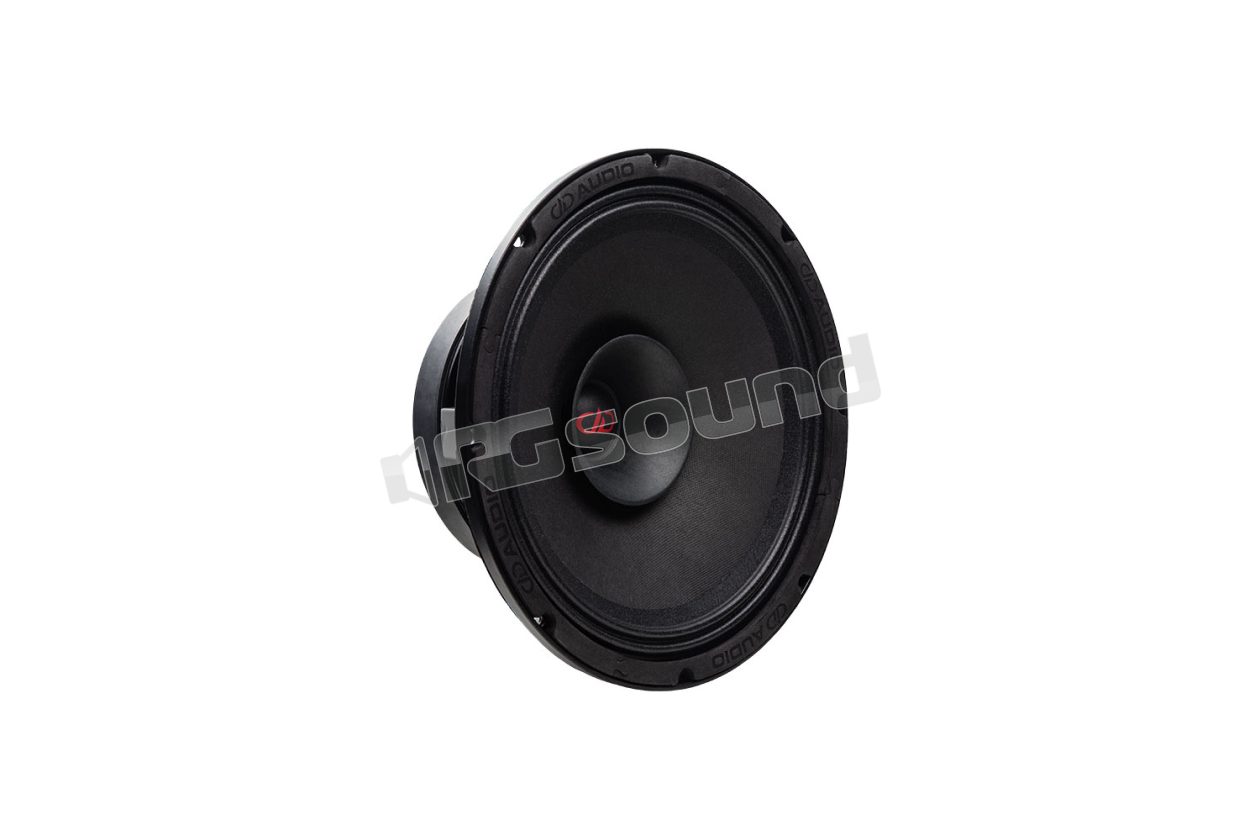

VO-FR510 10" full-range speaker

DD Audio Digital Designs
Your price:
€ 171,00
Price per single item (VAT included)
Available on backorder
Calculating shipping costs to
Type
Two-way
Speaker Size
250 mm
RMS Power
500 Watt
Frequency Response
80 – 16k Hertz
Sensitivity
100 dB

DD Audio Digital Designs VO-FR510 10" Full Range Speaker

The VO-FR500 are full range drivers optimized for voice, characterized by ultra-low inductance and high efficiency, featuring a precision-engineered dual cone design. The ultra-light whizzer cone/cap is attached to the voice coil support to increase off-axis response and ensure greater power at higher frequencies, enhancing the primary lower reproduction frequencies that the midrange cone is designed to disperse.

The acoustics, independently focused for each cone, have been optimized for smooth and coherent frequency blending, guaranteeing listeners an extraordinarily wide tonal spectrum, from lows to highs, without audible phasing or delays. Complete your professional audio system today with these full range, powerful and clear speakers.

DD Audio Digital Designs VO-FR510 Technical Specifications

  • Speaker Size (inches) 10
  • W RMS 500
  • Voice Coil Impedance S4
  • Frequency Response (Hz) 80 - 16k
  • dBSPL 100
  • Fs (Hz) 73
  • Qms 12.08
  • Qes 0.51
  • Qts 0.49
  • BL (TM) 8.9
  • Vas (liters) 34.71
  • Xmax (mm) 4
  • Suspension Travel (mm) 16
  • Mounting Diameter (inches) 9.125
  • Mounting Diameter (mm) 232
  • Mounting Depth (inches) 4.0625
  • Mounting Depth (mm) 103
€ 171,00 Price incl. VAT
